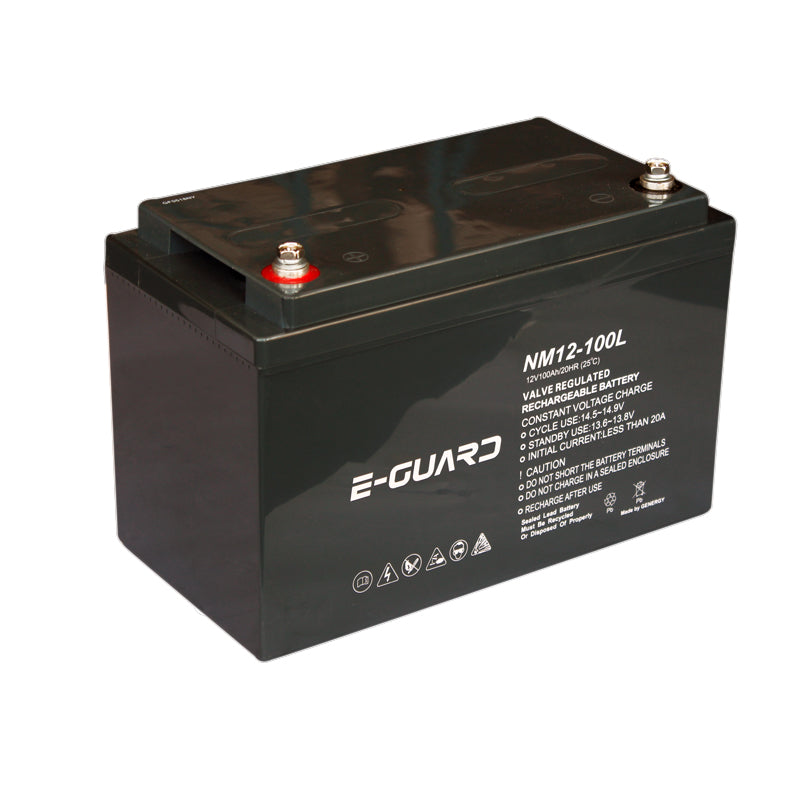

The E-guard NML (Long life) range is a gel design with an AGM separator (commonly referred to as Lead Crystal) and is designed for solar and alternative energy systems.
Typical Applications
- Solar Energy Systems.
- Wind Energy Systems.
- Power Utility.
- UPS/EPS.
Electrical Specifications
Design floating Life @ 20°C
- 10 years.
Nominal Capacity @ 25°C
- 20 hour rate 5.32A to 1.75Vpc 106.4 Ah.
- 10 hour rate 10.38A to 1.75Vp 103.8 Ah.
Internal Resistance (Fully charged battery @ 25°C)
- 5 mΩ.
Max. Discharge Current @ 25°C
- 1000 A (5S).
Charge Methods (Constant voltage charge @ 25°C)
- Cycle Use: 14.7 ~ 14.9V Max.
- Current: 27A.
- Standby Use: 13.6 - 13.8V.
Operating Temperature Range
- Discharge: -15 ~ 50°C.
- Charge: 0 ~ 50°C.
- Storage: -15 ~ 50°C.
- Recommended Operating Temp: 15 ~ 25°C.
Self-Discharge
- 3% of capacity declined per month @ 20°C (68°F).
Dimensions and Weight
- L x W x H: 395mm x 110mm x 286mm
- Total Height: 286mm.
- Weight: 31.7Kg.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
