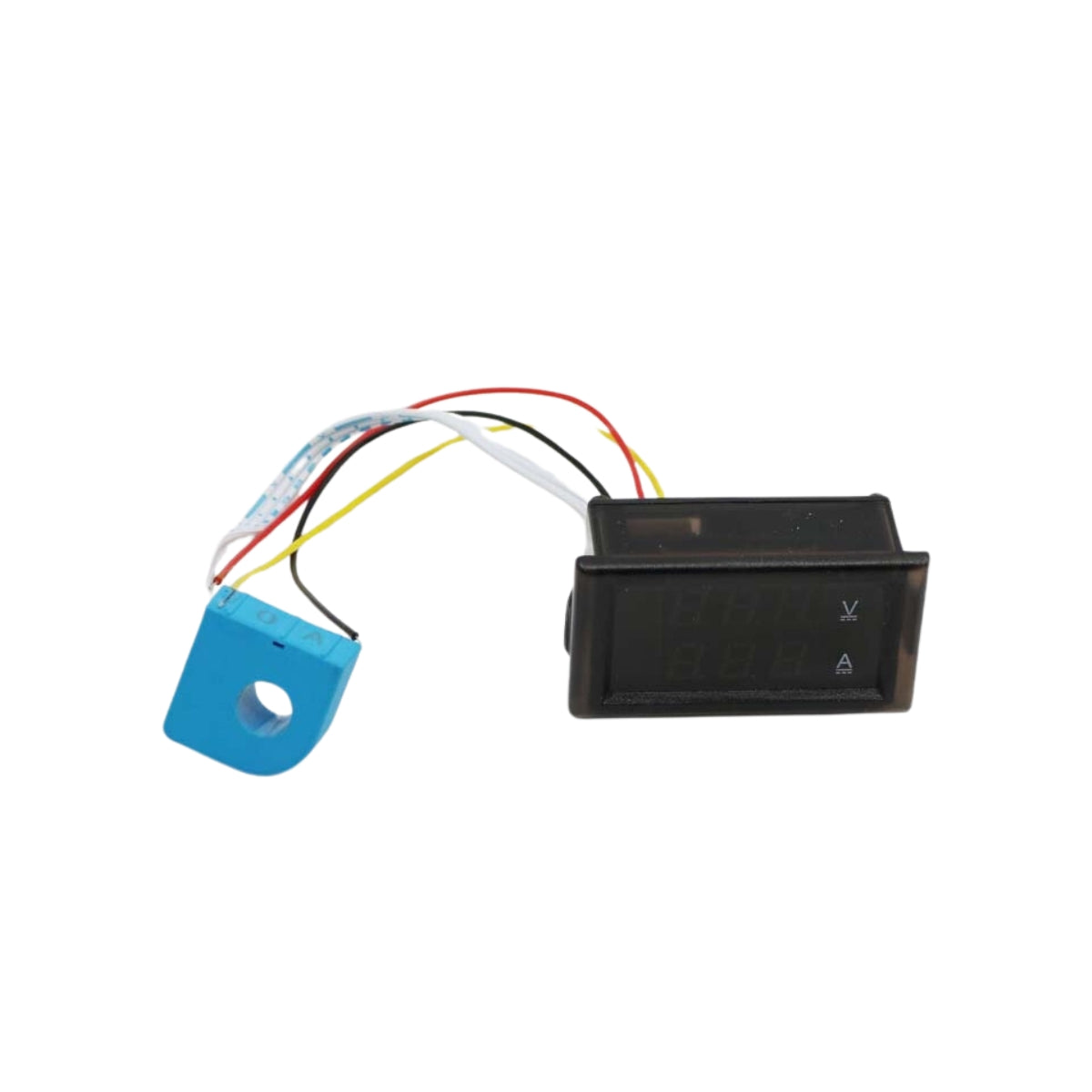

This 100 Volt / 100 Amp Digital Panel Meter is a versatile and highly accurate measurement device designed to monitor voltage and current in various electrical systems. With a clear digital display, this meter provides real-time readings, making it ideal for use in solar systems, battery monitoring, power supplies, and other DC power applications.

Key Features:

Wide Measuring Range

• Voltage: 0 - 100V DC
• Current: 0 - 100A DC

High Accuracy

• Ensures precise voltage and current measurements for reliable performance.

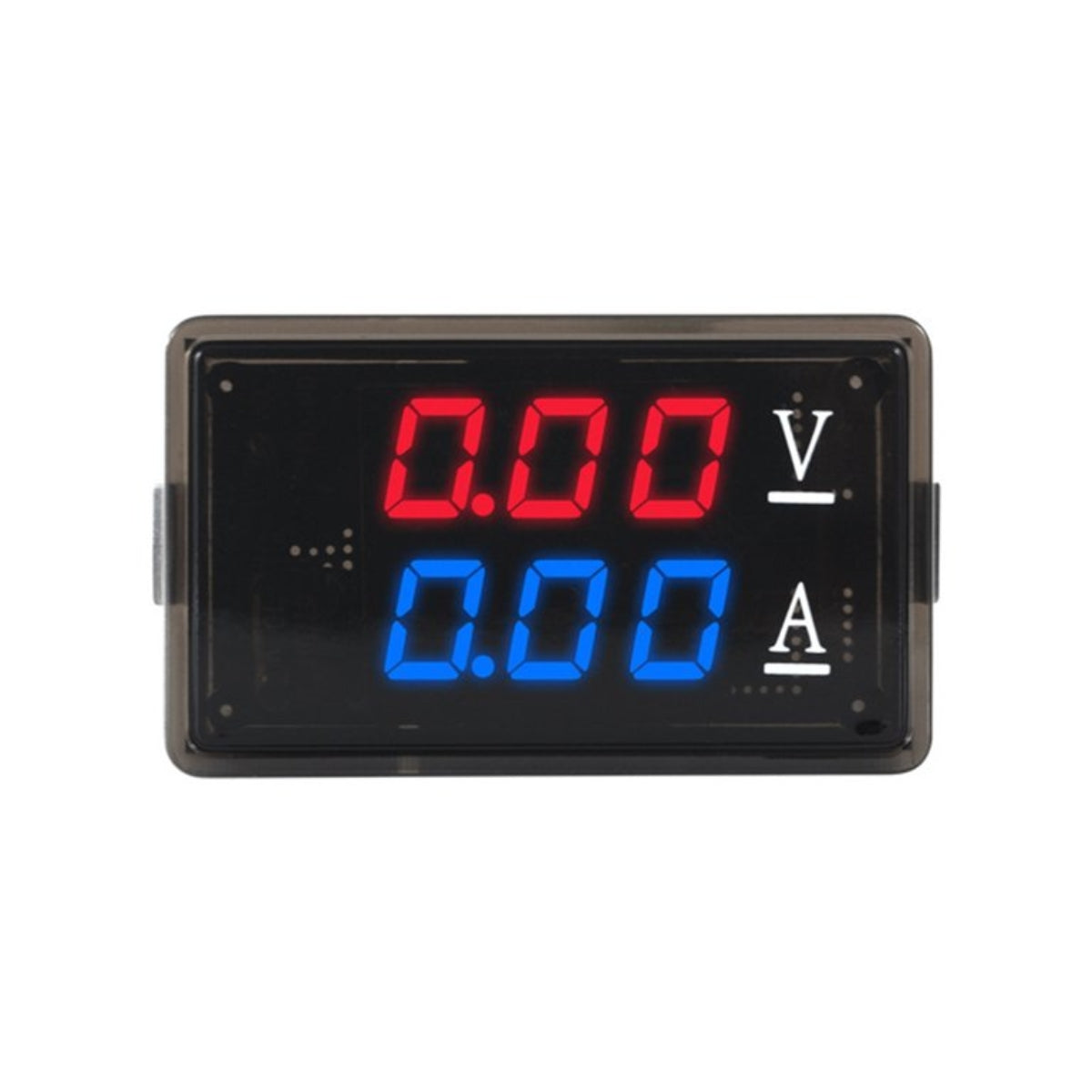

Digital Display

• Large, clear, and bright LED/LCD screen for easy reading, even in low-light conditions.

Compact and Durable Design

• Lightweight and robust construction ensures longevity and ease of installation.

Applications

• Suitable for solar power systems, battery management, vehicles (DC systems), industrial equipment, and DIY projects.

Power Source

• Operates independently or powered through the monitored circuit.

Specifications:

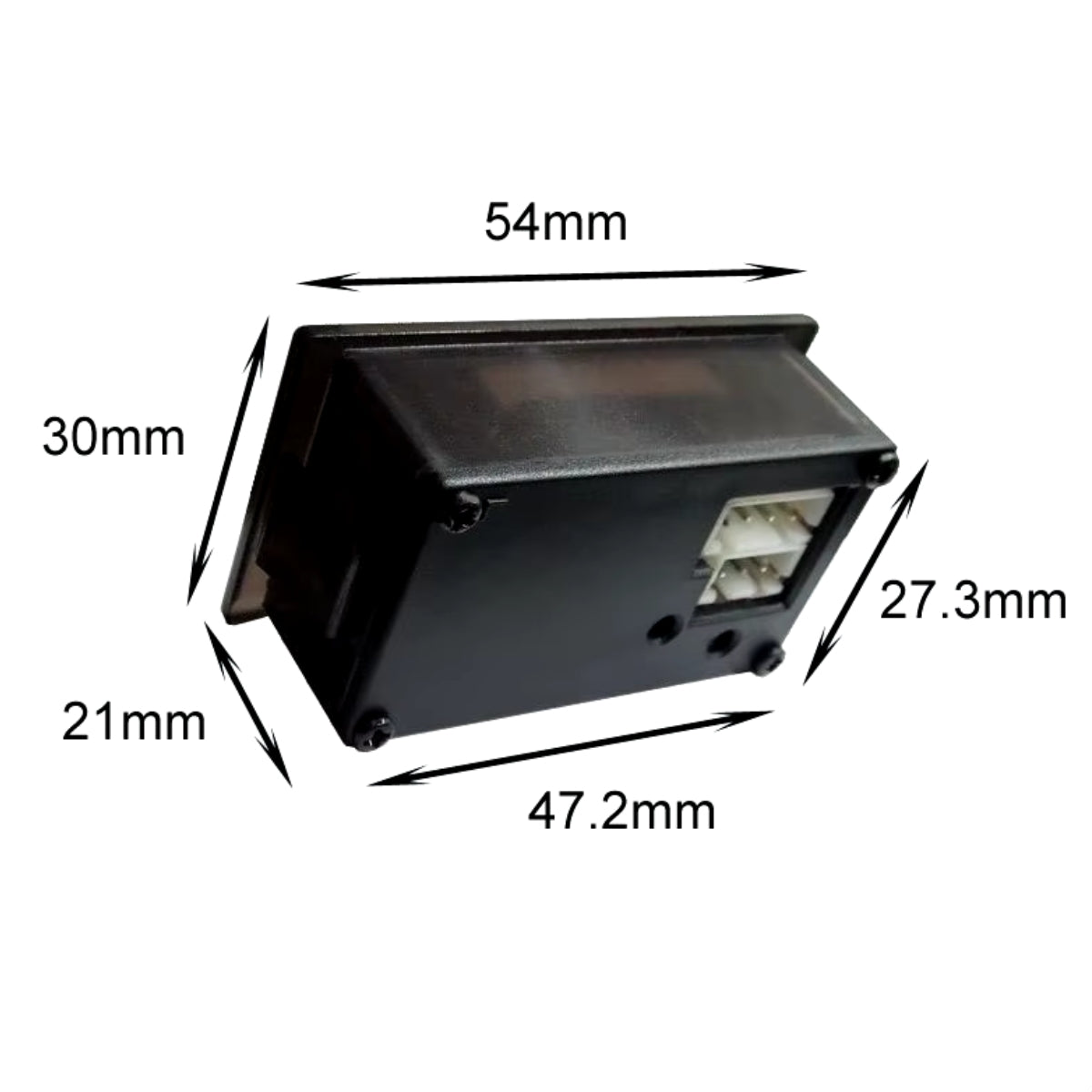

• Dimensions: 54x30x21mm
• Operating Temperature: -10~+50 degrees
• Voltage Range: 0 - 100V DC
• Current Range: 0 - 100A DC
• Display Type: LED or LCD (depending on model)
• Accuracy: 1% +/- 2 digits
• Display Type: Digital Only
• Current Shunt: External shunt included for high current measurement
• Power Consumption: Low-power operation

Package Includes:

• 1 x 100V/100A Digital Meter
• 1 x External Current Shunt (100A)
