Key Features:
- Safe LiFePO4 Chemistry.
- Long Lifecycle.
- High Temperature Performance.
- High Energy Density.
- High Charge and Discharge Rate.
- High Efficiency.
- Integrated Battery Management System (BMS).
- LCD Display - showing battery information.
Specifications:

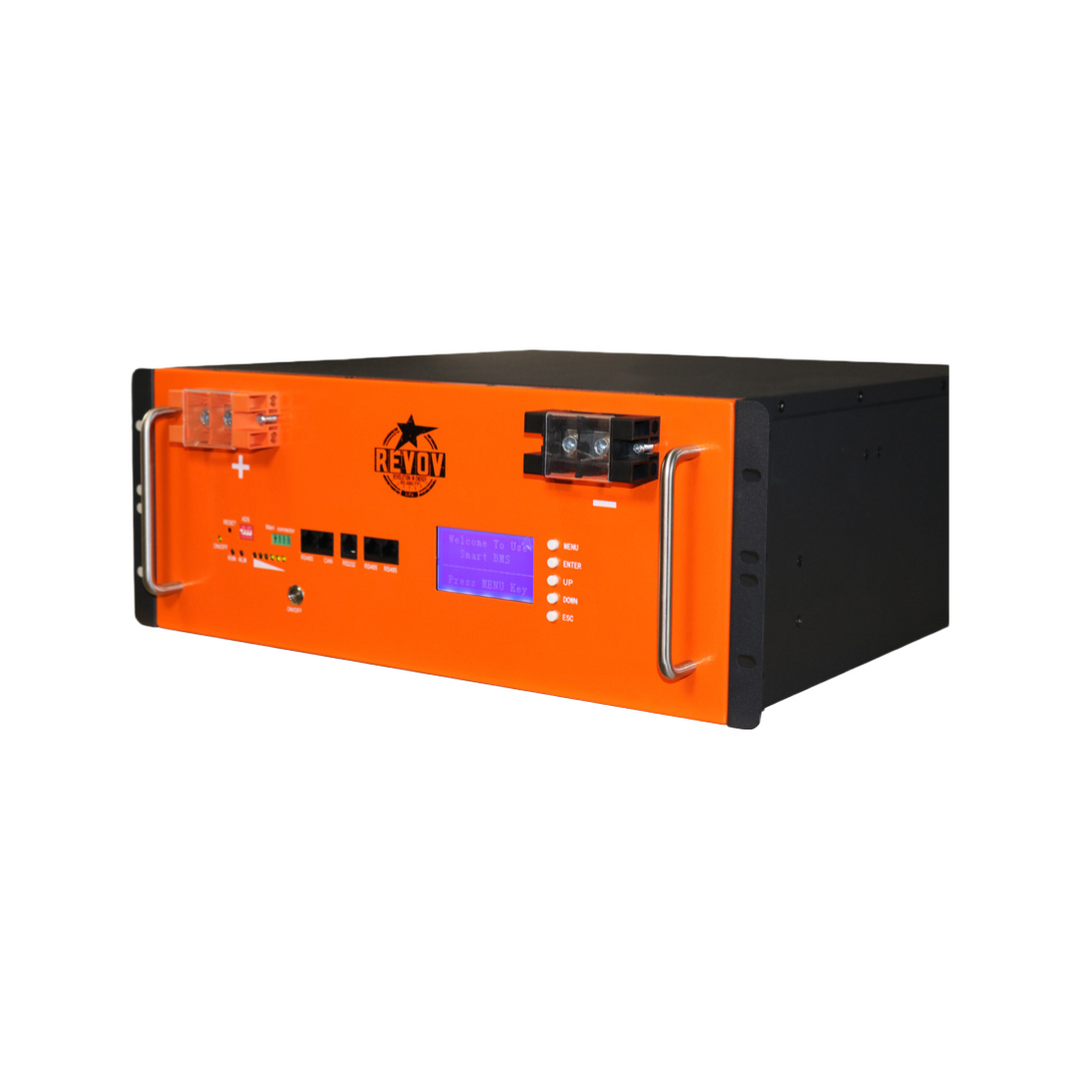

- Model: R200.
- Battery Type: LiFePO4.
- Battery Capacity: 200Ah.
- Power Capacity: 10.2kWh.
- Voltage
- Nominal: 51.2V.
- Float Charge: 54.5V.
- Absorption Charge: 55.5V.
- Current
- Maximum Charge/Discharge: 160/160A.
- DoD: 95%.
- Weight & Dimensions
- Dimensions [LxWxH, mm]: 520mm x 442mm x 221mm.
- Battery Weight: 83.6kg.
- Temperature
- At Charging: 0 - 45°C.
- At Discharging: -10 - 45°C.
- Other
- Enclosure Protection: IP20.
- Design Cycle Life: 7000.
- Access Interface: CAN Bus.
- Compatible Inverters: All leading inverter brands.
- Storage Conditions: 15 - 25°C at 50% SoC (charge every 6 months).
- Warranty: 10 years / 3500 cycles.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
