Product Description:

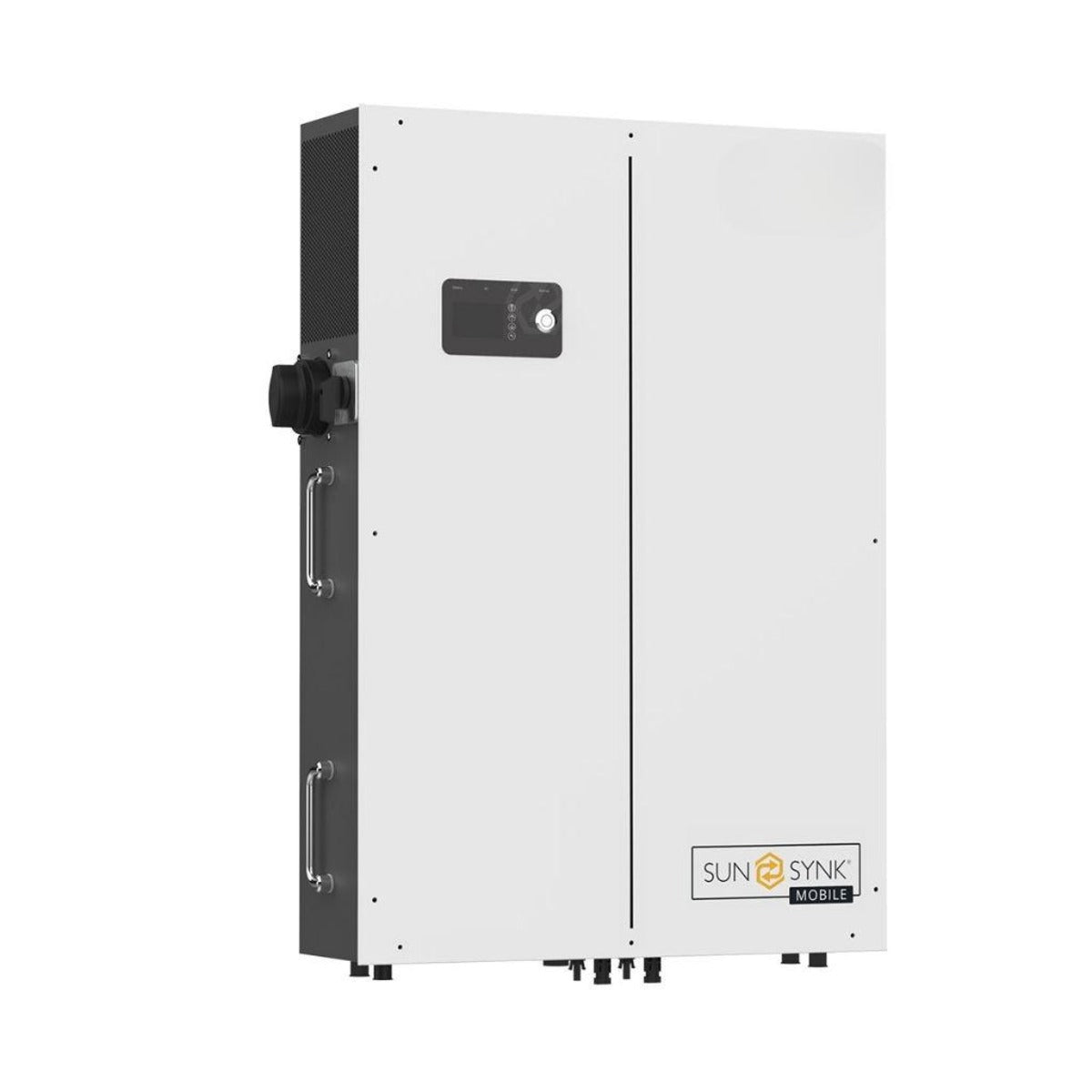

PowerLynk XL

Simple, But elegant

Introducing the Powerlynk XL by Sunsynk Mobile. Masterfully crafted to simplify and speed up installation, allowing for more efficient planning and implementation of large volume roll outs in new house builds or retrofits. Our dedicated Sunsynk Connect platform enables full control, visibility and access to the system, making the site-specific customization easy.

The Powerlynk comes complete with everything you need to install this cutting-edge storage solution. In-built connection points give access to the Load, Grid, CT, and Wi-Fi data logger ports, making it a true “Plug and Play” System.

From the pre-set factory setting to the in-built connection ports, the Powerlynk has been designed with convenience and hassle-fee installation in mind.

See more product information here

Powerlynk XL review

Battery Input Parameters:

• Supported Battery Type: LiFePO4
• Nominal Battery Voltage (V): 51.2
• Battery Input Voltage Range(V): 43.2 -57.6
• Max Charge Voltage: 60 (Configurable)
• Max Charge Current(A): 90 (Configurable)
• Max Discharge Current (A): 120 (Configurable)
• Battery Capacity(Wh): 5223

PV String Input Parameters:

• Max. DC Input  Power (W): 6800
• Max. DC Input Voltage (V): 500
• MPPT Voltage Range (V): 120-450
• Start-UP Voltage (V):120-150
• Max. Input Current (A): 16 (Total of two MC4 sets combined)

AC Output Parameters (Back-Up) Feed to essential Load):

• Max. Input Power (W) : 5500
• Max. Output Apparent Power (VA): 5500
• Peak Output Apparent Power (VA): 11000
• Max. Output Current (A): 24
• Nominal Output Current (A): 230
• Nominal Output Frequency (Hz): 50
• Max Bypass Current (A): 40
• Max. Bypass Current (A): 10
• Shift Time (Bypass and Inverter ) (MS): <3%

AC Input Parameter (On-Grid):

• Max Input Power (W): 5500
• Max. Output Power (W) Feed to Home Load: 5500
• Max. Apparent Input Power (VA): 5500
• Max. Apparent Output Power (VA): 5500
• Nominal Input/output Voltage (VAC): 230
• Nominal Output Frequency: 50
• Max. Bypass Current (A): 40
• Shift Time (Bypass and Inverter (MS): 10

General:

• Size(H x L X W mm): 901 x 624 x 182
• Net Weight: 82 KG
• Warranty: 5 Years

Efficiency

• Max Efficiency: 97.6%
• Max Battery to Load Efficiency: 94.0%
• Europe Efficiency: 97.0%
• MPPT Efficiency: 99.9%

General Data:

• Operating Temperature Range: -25C - 60C
• Degree of Protection: IP20
• Protection Class: Class I
• Cooling Concept:  Fan

Protection

Integrated Battery Over-Charge Protection, Battery Low-Voltage Protection, Over-Temperature Protection, Output Short Circuit Protection, Output Over-Voltage Protection. Output Overload Protection.

Compliances

The Grid Support interactive inverter complies with VDE 0126-1-1:2-13, IEC/EN 62109-1:2010, IEC/EN 62109-2:2011, NRS 097-2-1:2017
