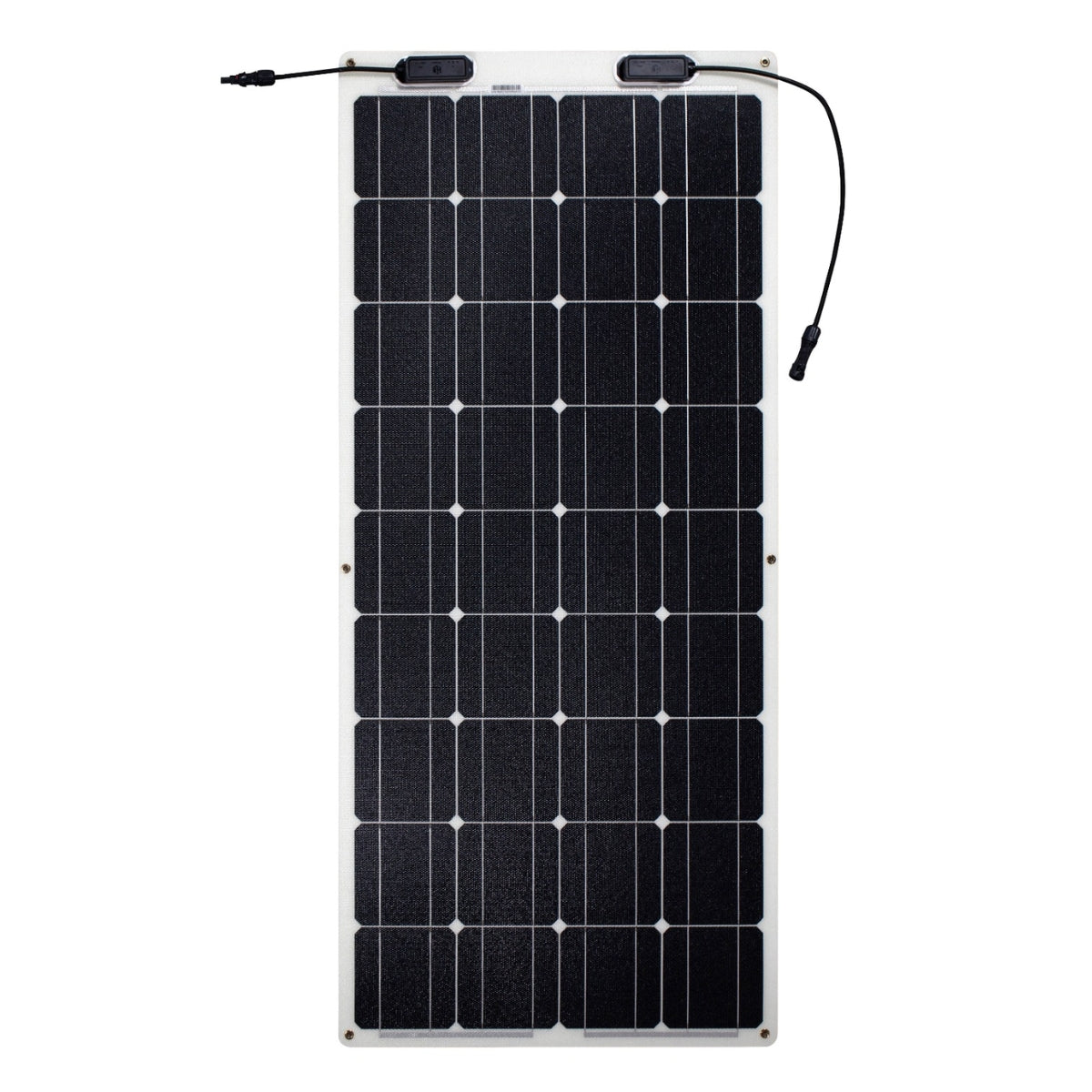

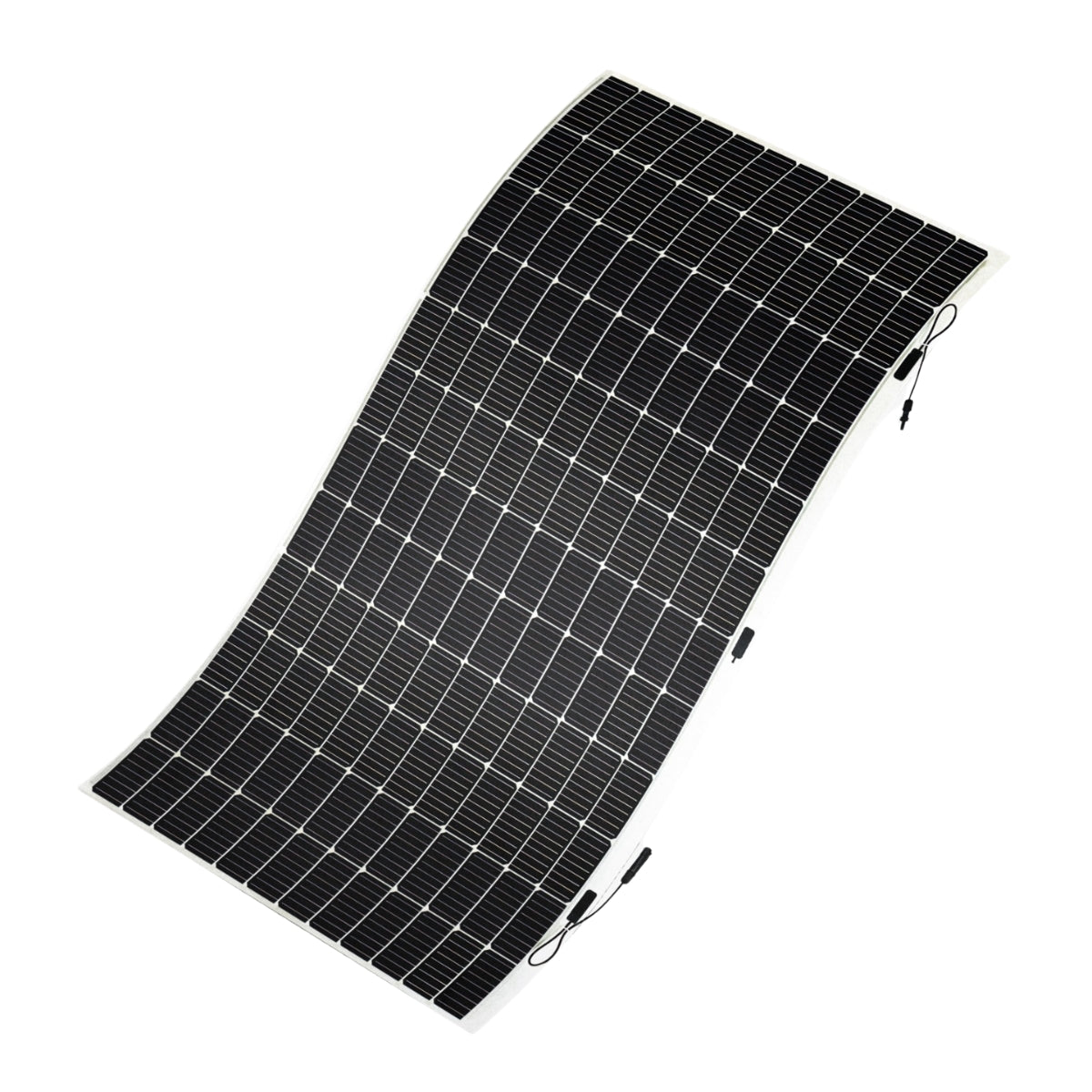

Arc is an innovative laminate that fuses proven crystalline silicon solar cells with proprietary polymer composite materials. The TÜV-certified and patented composite materials meet all properties for solar cell encapsulation, such as high light transmittance, enhanced durability and impact-resistance.

Features:

• Ultra-light - Glass free module weighs 2.8kg, 70% lighter than conventional Glass Modules.
• Aesthetic - Enhanced aesthetics and visual integration achieved through Sunman's unique "Quick-bonding" installation methodology. Seamless integration with underlying installation surface.

• Effortless Installation - Saving 50% in labor costs, dramatically reducing on-site installation time and costs.

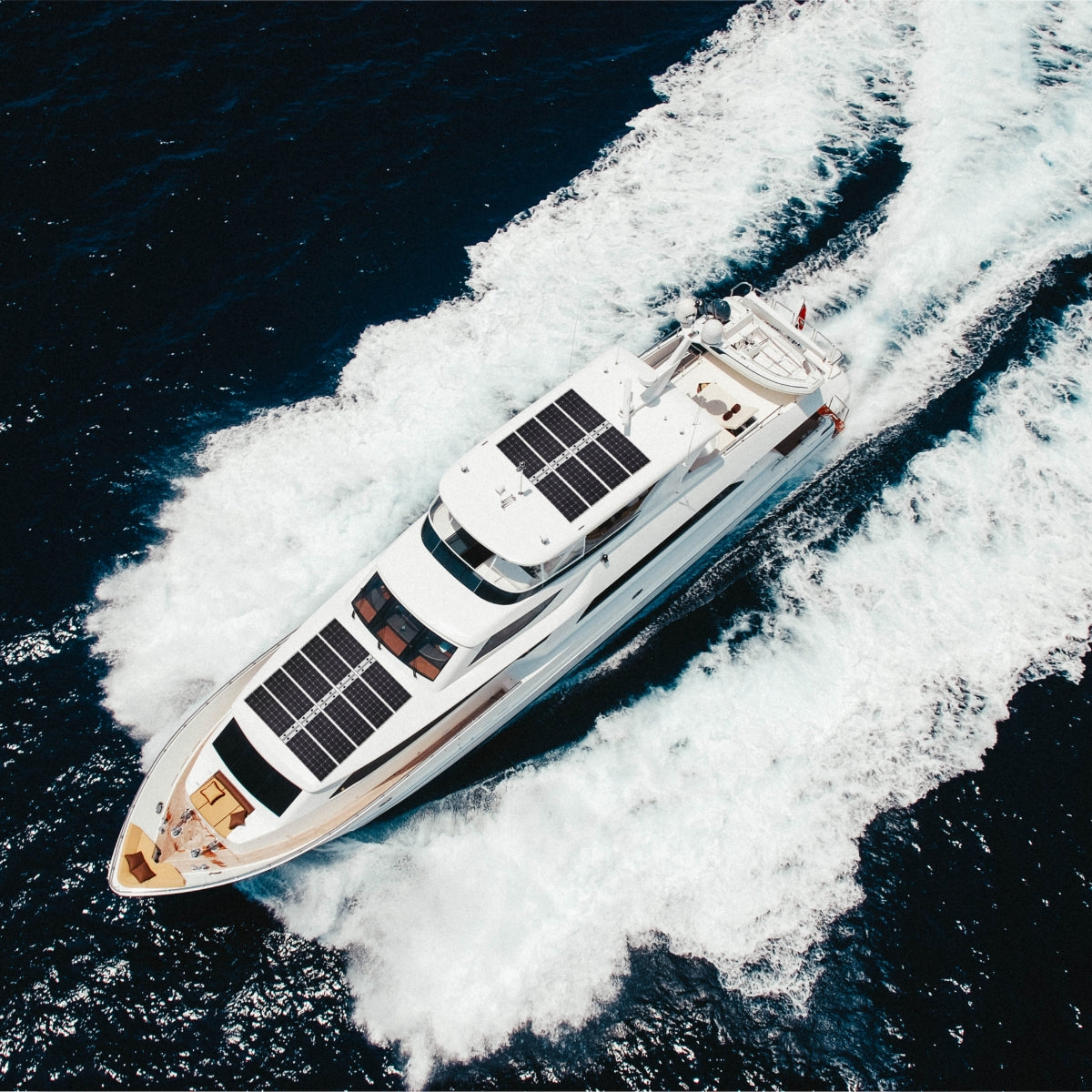

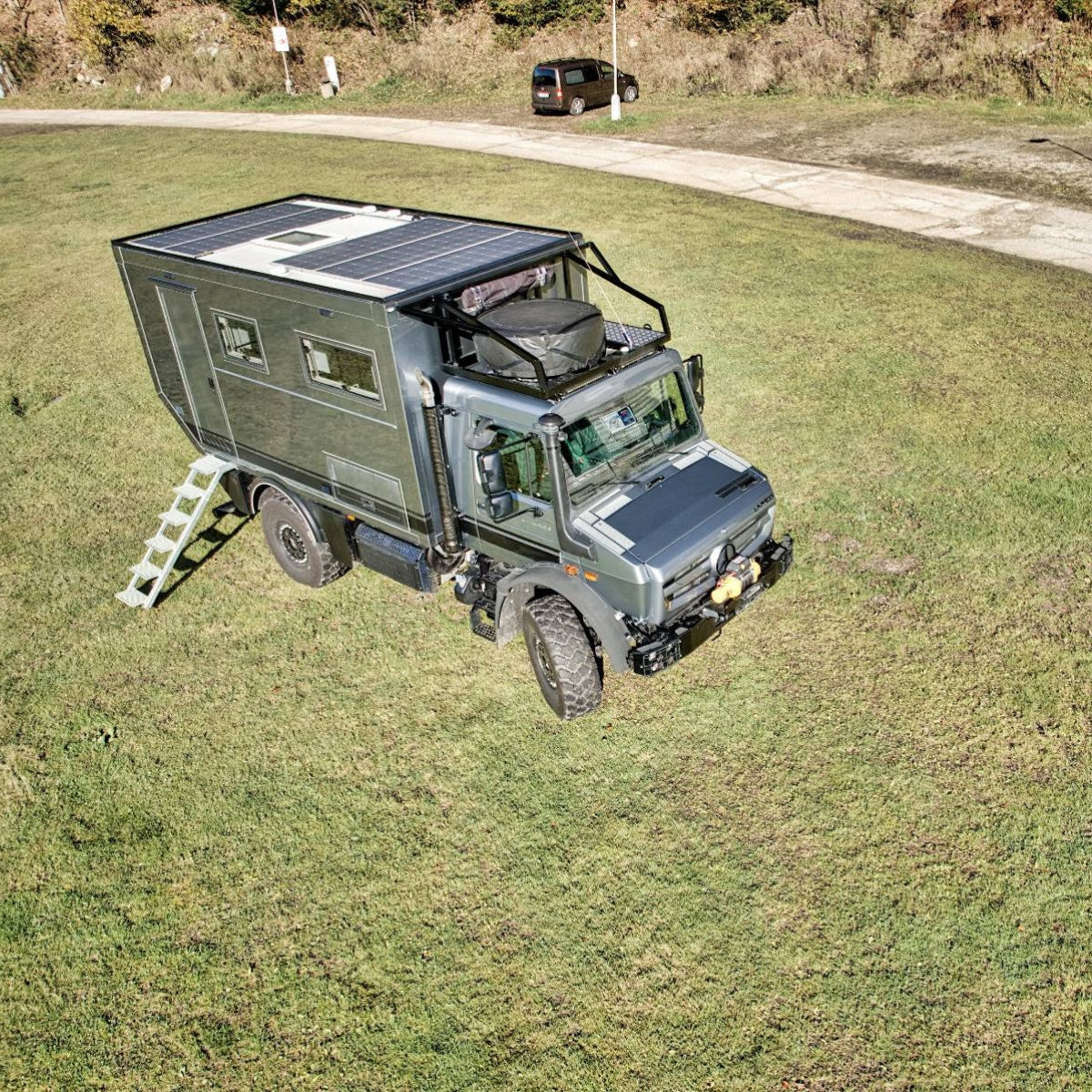

• Wide applications - Can be installed on all roof applications.
• Durable - eArc is the first glassless module to pass the same durability test as conventional glass modules, including IEC 61215:2016, IEC61730:2016 and UL61730 (USA). eArc has also passed PID, Salt mist and ammonia corrosion test.
• Warranty - 5 Year Product Warranty.

Specifications: STC

• Maximum Power (Pmax): 200
• Maximum Power Voltage (Vmp): 20.7
• Maximum Power Current (Imp): 9.65
• Open-circuit Voltage (Voc): 24.5
• Short-circuit Current (Isc): 10.69
• Module Efficiency (%): 16.26
• Operating Temperature: -40 ℃ to 85 ℃
• Maximum System Voltage: 1500 V DC (IEC)
• Maximum Series Fuse Rating: 20 A
• Application Class: Class A
• Power Tolerance: 0/+5 W
• STC: Irradiance 1000W/m² , Cell temperature 25℃, AM=1.5.
• Tolerances of Pmax , Voc and Isc are within ±5%

Specifications: NMOT

• Maximum Power (Pmax): 161.2
• Maximum Power Voltage (Vmp): 20.3
• Maximum Power Current (Imp ): 7.93
• Open-circuit Voltage (Voc ): 24.5
• Short-circuit Current (Isc ): 8.54
• Irradiance 800W/m² , Ambient temperature 20℃,AM=1.5, Wind speed 1 m/s.

Mechanical Characteristics:

• Solar Cell: Monocrystalline silicon(166mm half cell)
• No. of Cells: 72 (8×9)
• Module Dimensions: 1420mm × 881mm × 2 mm
• Weight: 2.8kg±3%
• Backsheet: cell side Black
• Frame: Frameless
• J-box: IP 68 rated
• Output Cables: Photovoltaic technology cable 4.0 mm 2 , (+)450 / (-)450 mm
• Connector: MC4

Temperature Characteristics:

• Nominal Module Operating Temperature(NMOT): 41±2℃
• Temperature Coefficient of Pmax: -0.34 %/℃
• Temperature Coefficient of Voc: -0.26 %/℃
• Temperature Coefficient of ISC: 0.033 %/℃
