Harness the power of the sun with Megarevo's 5kW self consumption solar power system. Featuring a 5.12kWh battery capacity and 51.2V output, this system allows you to optimize your energy usage while reducing your carbon footprint. Take control of your energy consumption today.

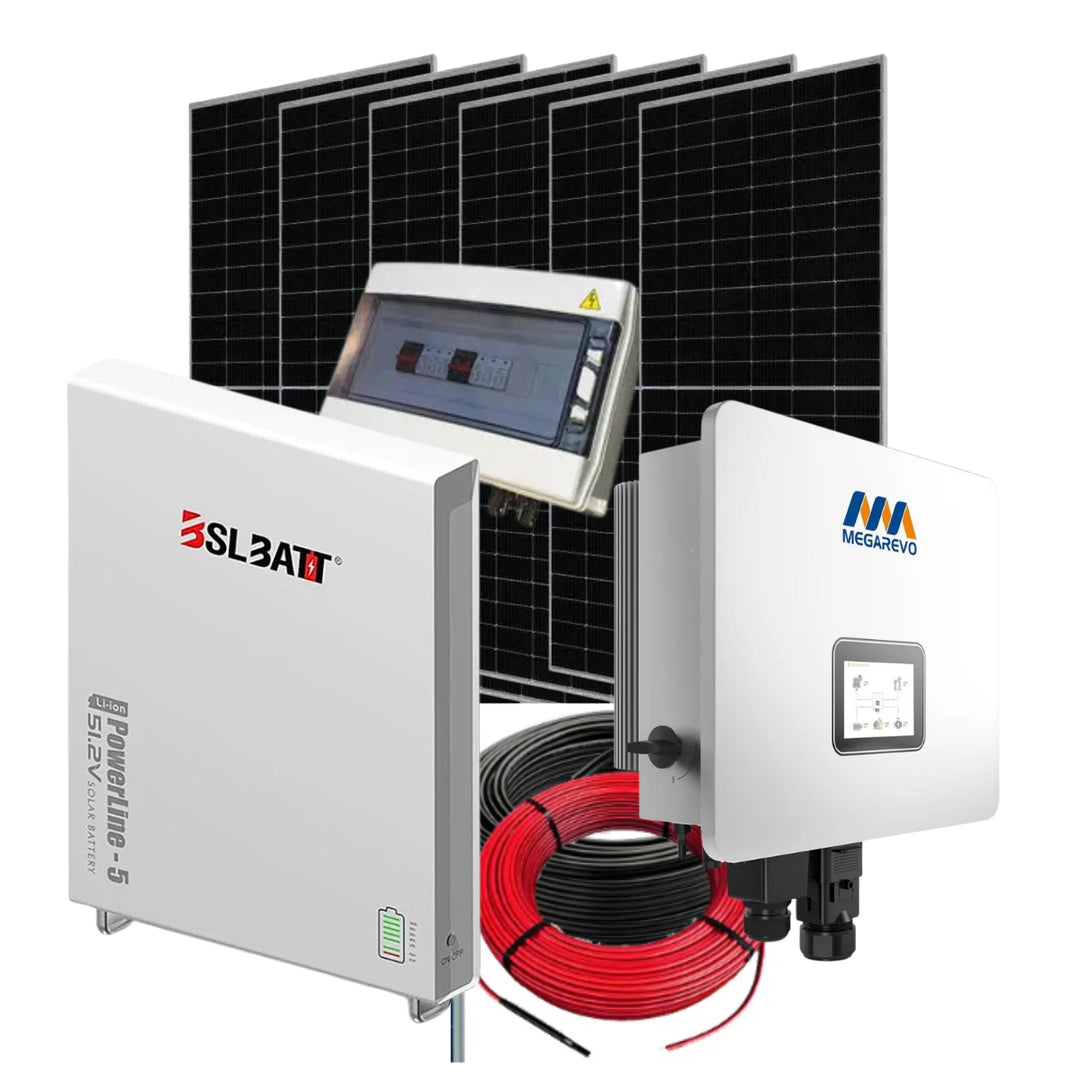

Kit Components

• 1 x Megarevo 5kW 48V Hybrid Inverter
• 1 x BSL Powerline 5 Lithium 5.12kWh 51V Battery
• 6 x JA Solar 505W Mono PERC Half-Cell MBB Silver Frame Solar Panels
• 1 x PV on Roof and Hazard Labels Pack
• 2 x MC4-EVO2 Connector Twin Pack
• 2 x MC4 Pre-terminated Cable (2m)
• 2 x K&N 40A Single Phase AC Switch Disconnector
• 1 x Earth Neutral Bridge Box 25A AC Protection
• 1 x 600V Protection Box (2 Inputs, 2 Outputs, 16A Isolator Type I_II SPD)
• 1 x Single Core 25mm² HV DC Cable (1m - Pair)
• 50 x Sustainable 4mm² Black Double Insulated Halogen Free Solar Cable

Solar Panel Specifications

• Cell Type: Mono
• Weight: 26kg ± 3%
• Dimensions: 2093 × 1134 × 30 mm
• Cable Cross Section Size: 4 mm² (IEC), 12 AWG (UL)
• Number of Cells: 132 (6 × 22)
• Junction Box: IP67, 3 diodes
• Connector: MC4-EV02/QC 4.10-35
• Cable Length: Portrait: 200mm(+) / 300mm(-) (Including Connector), Landscape: 1200mm(+) / 1200mm(-)

Inverter Specifications - Megarevo 5kW 48V Hybrid Inverter

Input

• Max. Input power (kW): 7.5
• Start-up voltage: 100 V.
• Max. PV input voltage: 550 V.

• MPPT range/nominal:  80-500 V.
• Max. input current of singe MPPT (A): 16 / 16.
• Max. short circuit current (A): 18.5 x 2
• MPPT number/Max. input strings number: 2/2.

Output AC

• Rated power: 5 kW.
• Max. AC current output to grid (A): 21.47
• Nominal voltage/range(V): 230 /176~270
• Frequency (Hz): 50 /60
• Power factor: 1(0.8 leading-0.8 lagging)
• THDi: <2%
• AC grid type: L+N+PE

Battery Specifications - BSL Powerline 5 Lithium 5.12kWh 51.2V Battery

• Battery Type: Lithium-Ion
• Model: PowerLine - 5
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Charging Voltage: 58.4V
• Charge Current: 50A
• Max Discharge Current: 100 A
• Continuous Charging: 100A
• Continuous Discharge:  50A
