Features

• The all-in-one solar power solution.
• Display and wifi.
• Solar charge controller.
• GX device.

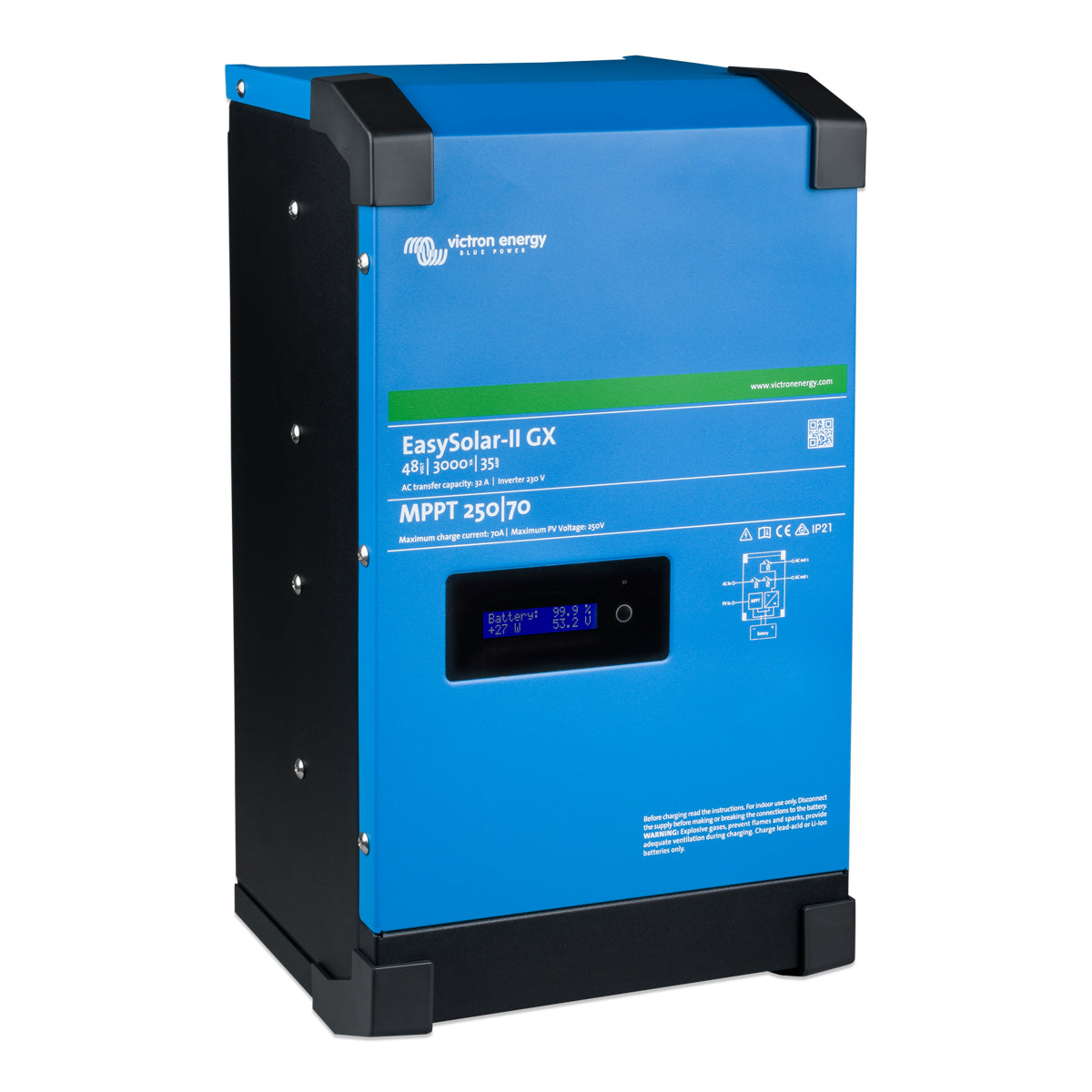

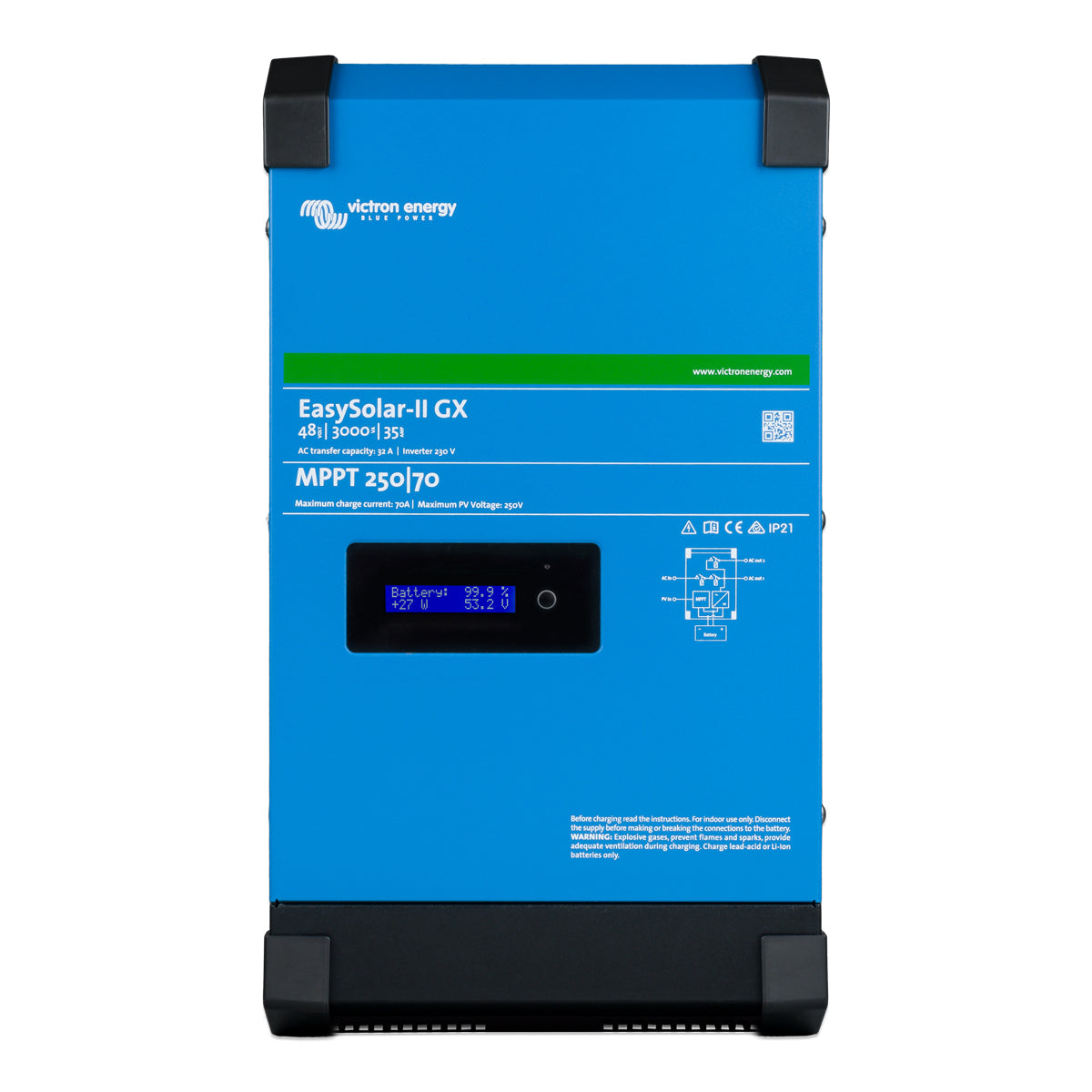

EasySolar-II - 24-48/3000/35-32 MPPT 250/70 GX

• PowerControl & PowerAssist: Yes.
• Transfer switch: 32A.
• Maximum AC input current: 32A.
• Auxiliary output: Yes(32A).

Inverter

• Input voltage range: 38 – 66V.
• Output: Output voltage: 230 VAC ± 2%, Frequency: 50 Hz ± 0,1% (1).
• Cont. output power at 25°C: 3000VA / 2400W.
• Cont. output power at 40°C / 65°C: 2200W / 1700W.
• Maximum apparent feed-in power: 2500VA.
• Peak power: 5500W.
• Maximum efficiency: 95%.
• Zero load power: 11W.
• Zero load power in AES mode: 7W.
• Zero load power in Search mode: 2W.

Charger

• AC Input: Input voltage range: 187-265 VAC, Input frequency: 45 – 65 Hz.
• Charge voltage 'absorption': 57,6V.
• Charge voltage 'float': 55,2V.
• Storage mode: 52,8V.
• Maximum battery charge current: 35A.
• Battery temperature sensor: Yes.
• Programmable relay: Yes.
• Protection: a - g.
• VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration.
• General purpose com. port Yes, 2x.

Solar Charge Controller

• Model SmartSolar MPPT: 250/70-Tr.
• Maximum output current: 70A.
• Maximum PV power: 4000W.
• Maximum PV open circuit voltage: 250V.
• Maximum efficiency: 98%.
• Self-consumption; 20mA.
• Charge voltage 'absorption', default: 57,6V.
• Charge voltage 'float', default setting: 55,2V.
• Protection: a – e.

General

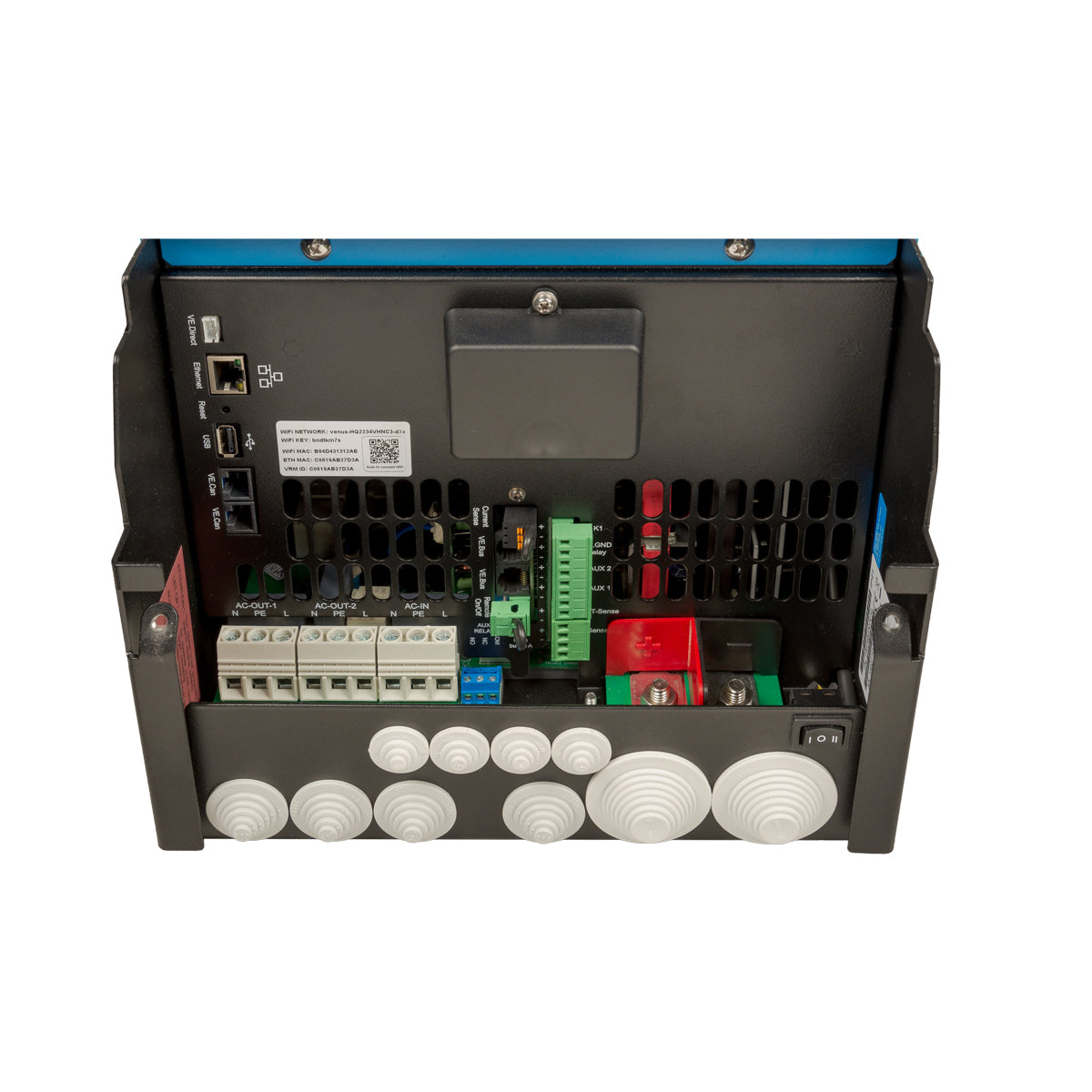

• Interfaces: VE.Can, USB, Ethernet, VE.Direct, wifi.
• Remote on-off: Yes.
• Operating temp. range: -40 to +65°C (fan assisted cooling).
• Humidity (non-condensing): max 95%.
• 5 year warranty.

Enclosure

• Material & Colour: aluminium (blue RAL 5012).
• Protection category: IP21.
• Battery-connection: M8 bolts.
• PV connection: M6 bolts.
• 230 V AC-connection: Screw terminals 13 mm2 (6 AWG).
• Weight: 26kg.
• Dimensions (hxwxd)(mm): 506 x 275 x 237.
