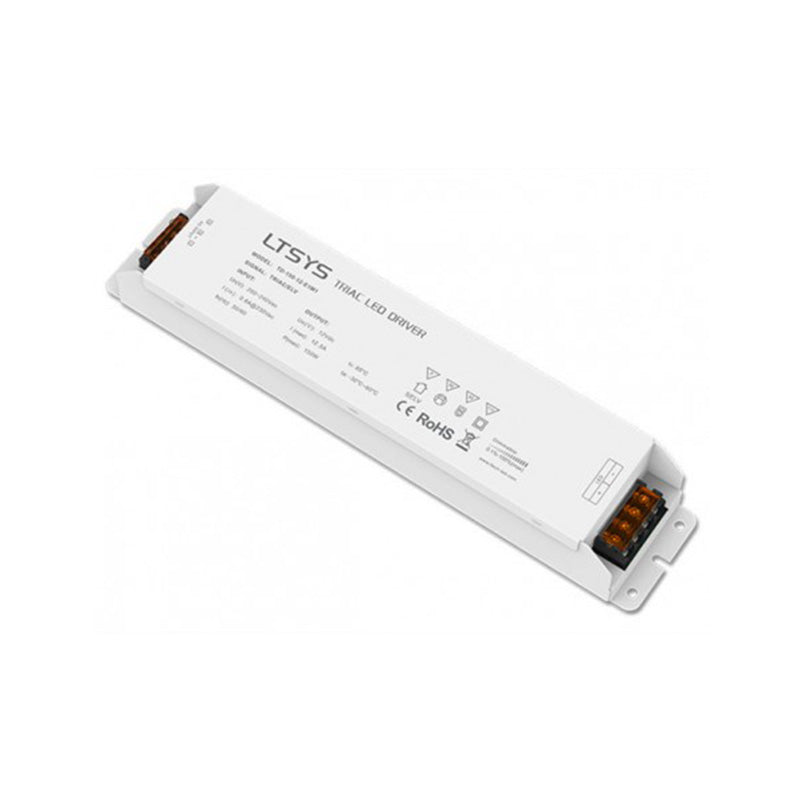

Main Specifications
- Dimming Interface: Triac / ELV.
- Input Voltage Range: 200 - 240 Vac ± 10%.
- Frequency: 50/60Hz.
- Input Current: 230Vac≤0.8 A.
- Efficiency: ≥ 85%.
- Inrush Current(typ.): Cold start 50 A at 230 Vac.
- Leakage Current: (I/P-O/P) <0.5 mA/230 Vac.
- Output Current: Max. 12.5 A.
- Output Voltage: 12Vdc.
- Output Voltage Range: 2Vdc ±0.5Vdc.
- Ripple & Noise: ≤200mV.
- Output Power: Max. 150W.
- Output Power Range: 1~150W.
- Overload Power Limitation: ≥102%~125%.
- Dimming Range: Max. 0.1~100%.
- Working Temperature.: tc: 85°C / ta: -30°C ~ 60°C.
- Working Humidity: 20 ~ 95%RH, non-condensing.
- Storage Temp., Humidity: -40 ~ 80°C, 10~95% RH.
- Temp. Coefficient: ±0.03%/°C(0-50°C).
- Vibration: 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
- Dimension: 273 mm × 57 mm × 37 mm(L×W×H).
- Weight: 605g±10g.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
