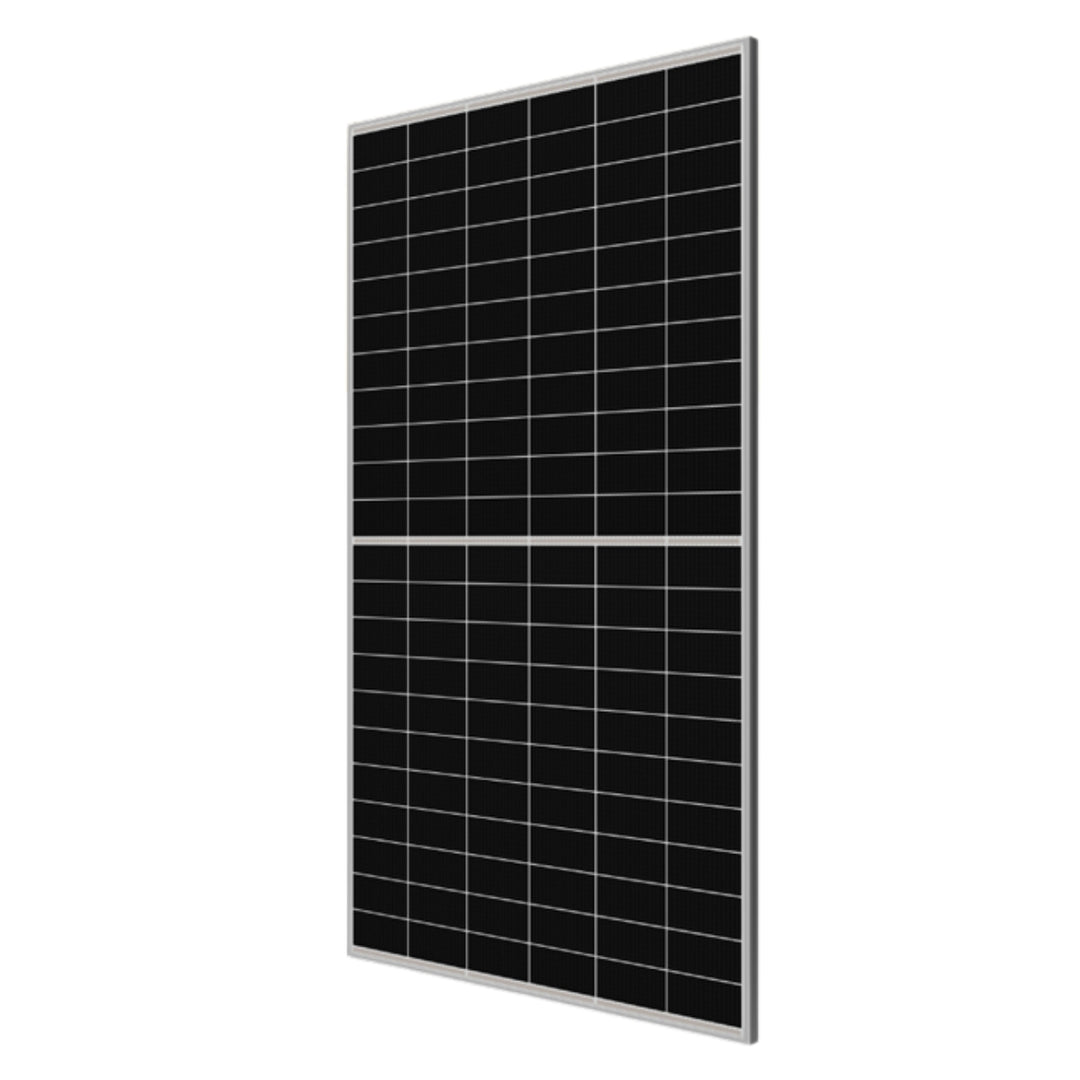

This Canadian Solar 610W Bifacial TopHiKU6 Solar Panel is a game-changing addition to any solar panel array. With its advanced bifacial technology, you can enjoy up to 30% more energy yield from both the front and back sides of the panel. This means higher efficiency and greater cost savings for your renewable energy setup.

More Power

• Module power up to 630W.
• Module efficiency up to 23.2%.
• Up to 85% Power Bifaciality, more power from the back side.
• Excellent anti-LeTID and anti-PID performance.
• Low power degradation and high energy yield.
• Lower temperature coefficient (Pmax): - 0.29%/°C, increase energy yield in hot climate.
• Lower LCOE & system cost.

More Reliable

• Tested up to ice ball of 35mm diameter according to IEC 61215 standard.
• Minimizes micro-crack impacts.
• Heavy snow load up to 5400Pa, wind load up to 2400Pa.
• 12-year Enhanced product warranty on materials and workmanship
• 30-year Linear power performance warranty
• 1 Year power degradation no more than 1%.
• Subsequent annual power degradation no more than 0.4%

Management System Certificates

• ISO 9001:2015 / Quality management system
• ISO 14001:2015 / Standard for environmental management system
• ISO 45001:2018 / International standards for occupational health and safety
• IEC62941:2019 / Photovoltaic module manufacturing quality system

Product Certifications

• IEC 61215 / IEC 61730 / CE/ INMETRO/ MCS/ UKCA/ CGC
• UL 61730 / IEC 61701 / IEC 62716 / IEC 60068-2-68
• UNI 917 Reaction to Fire: Class 1

Electrical Data |STC

• Model: CS6.2-66TB-610
• Nominal Max Power: 610W
• Operating Voltage: 40.8V
• Operating Current: 14.96A
• Open Circuit Voltage: 48V
• Short Circuit Current: 15.97A
• Model efficiency: 22.6%
• Operating Temp: -40°C+ 85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: Type 29 ( UL 61730 ) or Class C (IEC61730)
• Max. Series Fuse Rating: 35A
• Protection Class: Class II
• Power Tolerance: 0 ~ + 10 W
• Power  Bifaciality: 80%

Mechanical Data

• Cell Type: TOPCon cells
• Cell Arrangement: 132[2x (11 x 6) ]
• Dimensions: 2382 x 1134 x 30 mm (
• Weight: 32.8 kg
• Front Glass: 2.0 mm heat strengthened glass with anti-reflective coating
• Back Glass: 2.0 mm heat strengthened glass
• Frame: Anodized Aluminium Alloy
• J-Box: JP68, 3 Bypass Diodes
• Cable: 4mm² (IEC), 12 AWG (UL)
• Cable Length (including Connector): 300 mm (11.8 in) (+) / 200 mm (7.9 in) (-) or customized length
• Connector: T6 or MC4-EVO2 or MC4-EVO2A

Electrical Data |NMOT

• Nominal Max: Power: 461W
• Opt. Operating Voltage: 38.6V
• Opt. Operating Current: 11.96A
• Open Circuit Voltage: 45.4V
• Short Circuit Current: 12.87A

Temperature Characteristics

• Temperature Coefficient (Pmax): 0.29% / °C
• Temperature Coefficient (Voc): 0.25% / °C
• Temperature Coefficient (Isc): 0.45% / °C
• Nominal Module Operating Temp: 41± 3 °C

Please note that panel dimensions and specifications are subject to change and images are for illustration purposes only. Please double check with us that they are correct at time of purchase.
