Features:
- 100% OFF GRID solution.
- NO batteries or AC required.
- NO timers required
- MPPT controller
| Model | JCS4-4.0-166 |
| Voltage | 216 V |
| Power | 1500 Watts |
| Max Flow Rate | 4.0 m³/h |
| Max Head | 166 m |
| Warranty | 12 Months |
General Data:
| Outlet | 32mm (1.25 in) |
| Pump Diameter | 100 mm |
| Type of Pump | Centrifugal Pump |
| Submersible Depth | 30 m |
| Controller Input Voltage | 252V - 400 (VoC) |

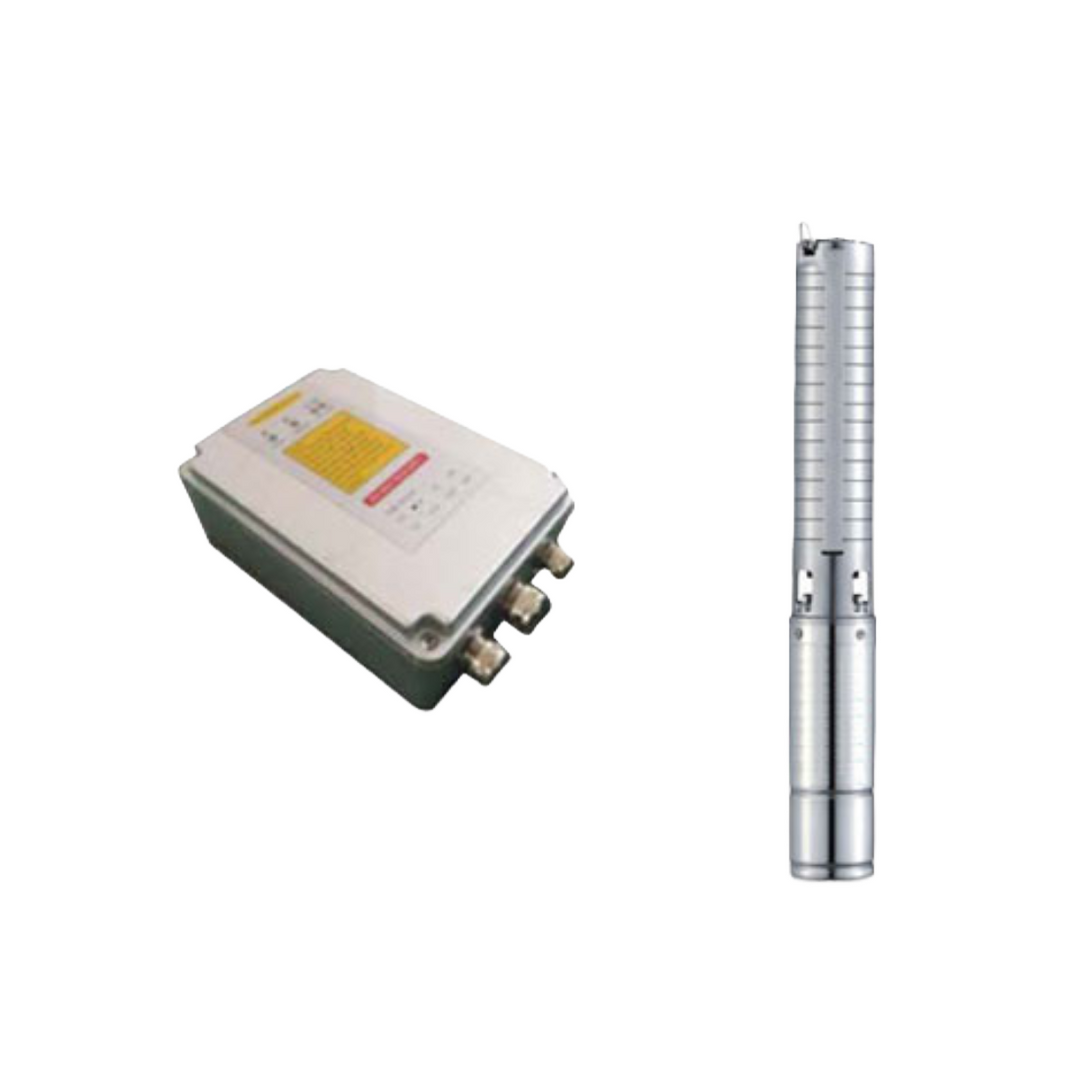

| What's Included | Pump, Controller, Float Level Switches and 6m Cable |
PACKED DIMENSIONS
| Length | 800 mm |
| Width | 310 mm |
| Height | 150 mm |
| Weight | 19 kgs |
SOLAR PANEL REQUIREMENTS
| PANELS | VOLTAGE (VMP) | QTY |
| 340 Watts | 38.14V | 7 |
| 400 Watts | 41V |
What is included:
- 1 x Bundu Power Cable Joint Kit
- 1 x Bundu Power 2 Way Pump Box
PLEASE NOTE: Submersible Cabler (4mm 3 Core) sold separately.
PLEASE NOTE: Exceeding the Input Voltage (216) to the controller can damage the controller and void your warranty. Please ensure the correct panel configuration before connecting the pump controller.
KEY POINTS
- Solar Panels oversized by 30%. i.e: A 500Watt pump should use 650Watts of Panels
- Output based on 5.5 hours a day at max capacity. The pump will run longer, but slower in the mornings and evenings.
- Submersible Depth = How far beneath the surface of the water. Not depth of the borehole.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
