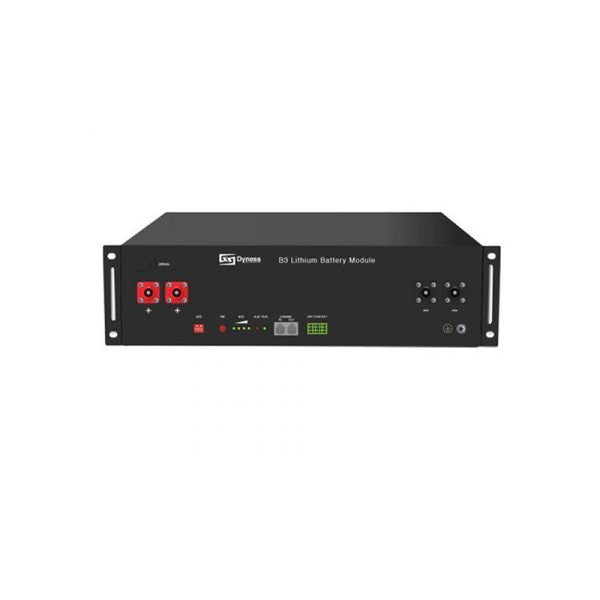

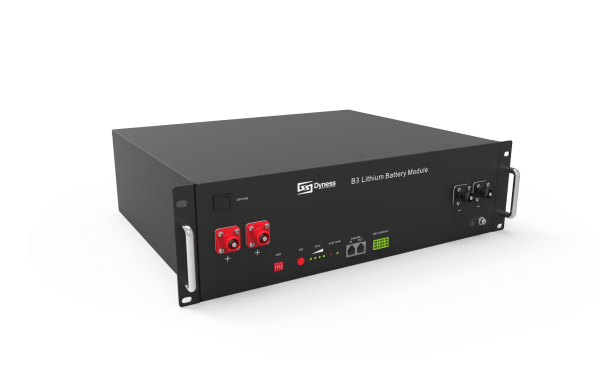

The DYNESS B3 3.6kWh 48V Lithium Battery is perfect for energy storage and can be used in a off-grid or hybrid solar setup, or a in uninterrupted power supply system (UPS).
Intelligent Management:
- Dyness is equipped with intelligent BMS for each battery pack to manage modules effectively.
- Compared with the traditional module, B4874 can meet the capacity storage and greatly enhance the cycle life.
Dyness compatability list:
- Victron
- Sacolar (solarway)
- Goodwe
- Imeon
- Solis
- Lux Power
- Sofar
- GMDE
- Growatt
- Voltronic
Specification:
- Battery Type: LiFePO4
- Nominal Battery Energy: 3.6 kWh
- Nominal Capacity: 75Ah
- Nominal Voltage: 48V
- Operating Voltage: 42 ~ 54.75V
- Recommended C Rate: 0.5C
- Recommended Charge/Discharge Current: 37.5A
- Max. Power Charge/Discharge Current: 50A
- Peak Power Charge/Discharge Current: 55A (protect)
- Depth of Discharge (DOD: 90%
- Net Weight: 31kg
- Dimension[W*D*H]: 480*360*130 mm
- Charging Temp. Range: 0~55℃
- Discharging Temp. Range : -20~55℃
- Communication: CAN/RS485
- Cycle Life[1] : ≥6000 Cycles
- Protection Level: IP20
- Expansion: Up to 40 units in parallel
- Pros: Can be used in both off-grid and hybrid setups, compact design
- Certification & Safety Standard UN38.3/CE-EMC/IEC62040/IEC62619/GOST-R/UKCA/CEC Accredited/CEI-021
- Warranty: 10 years
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
