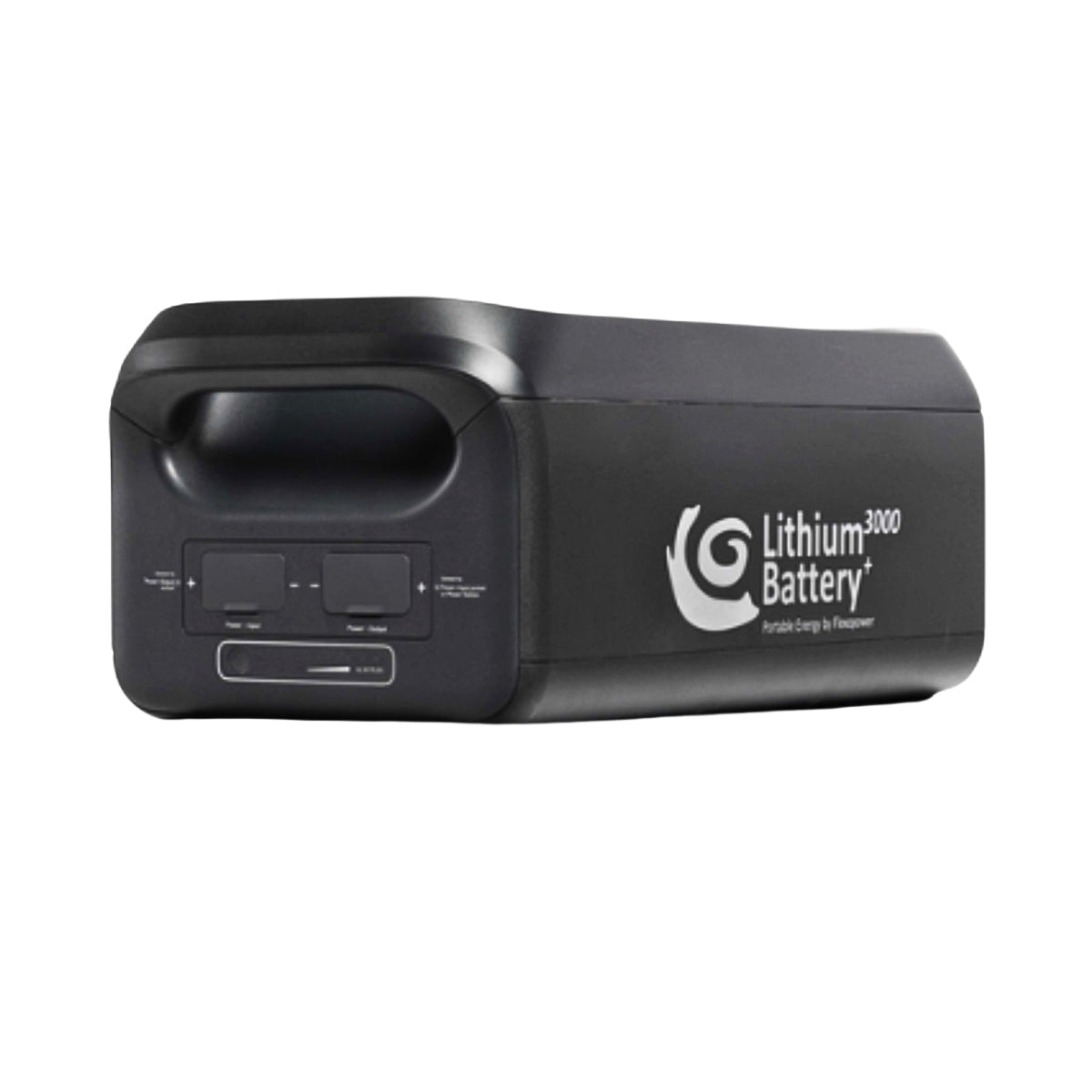

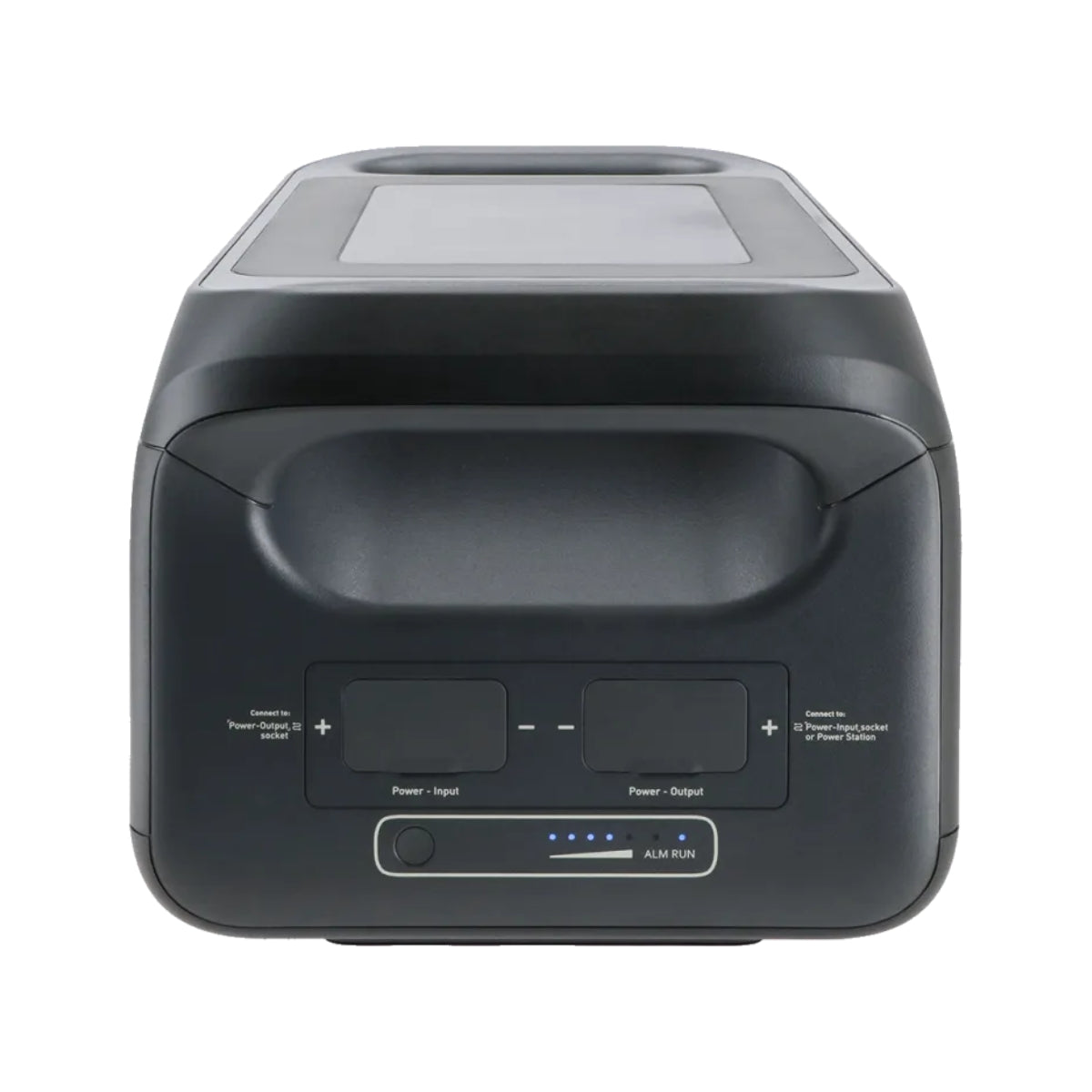

Expandable capacity: increase capacity by adding up to 6 extra batteries (2.5kWh each) up to 17.5kWh optional.
The battery module is compatible with the Lithium3000 only.
Specifications of 1 Expansion Module
Battery Service Life | 10 years service life +/- |
Battery Chemistry | Square Aluminum Case Lithium Iron Phosphate, LiFePO4 |
Battery Capacity | 2560 Wh (51,2V) |
Output Power | 3500W max. 70A |
Input Voltage | 57,6V, max. 50A |
Weight | 25.2kg |
Dimensions (L W H) | 536 * 270 * 255 mm |
Safety |
· Short Circuit · Over-Current · Over-Voltage · Low-Voltage · Over-Load · Over-Temperature |
Operating Range | 0°C to 45°C |
Warranty | 2 Years |
Certification | CE, FCC, RoHS, PSE |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
