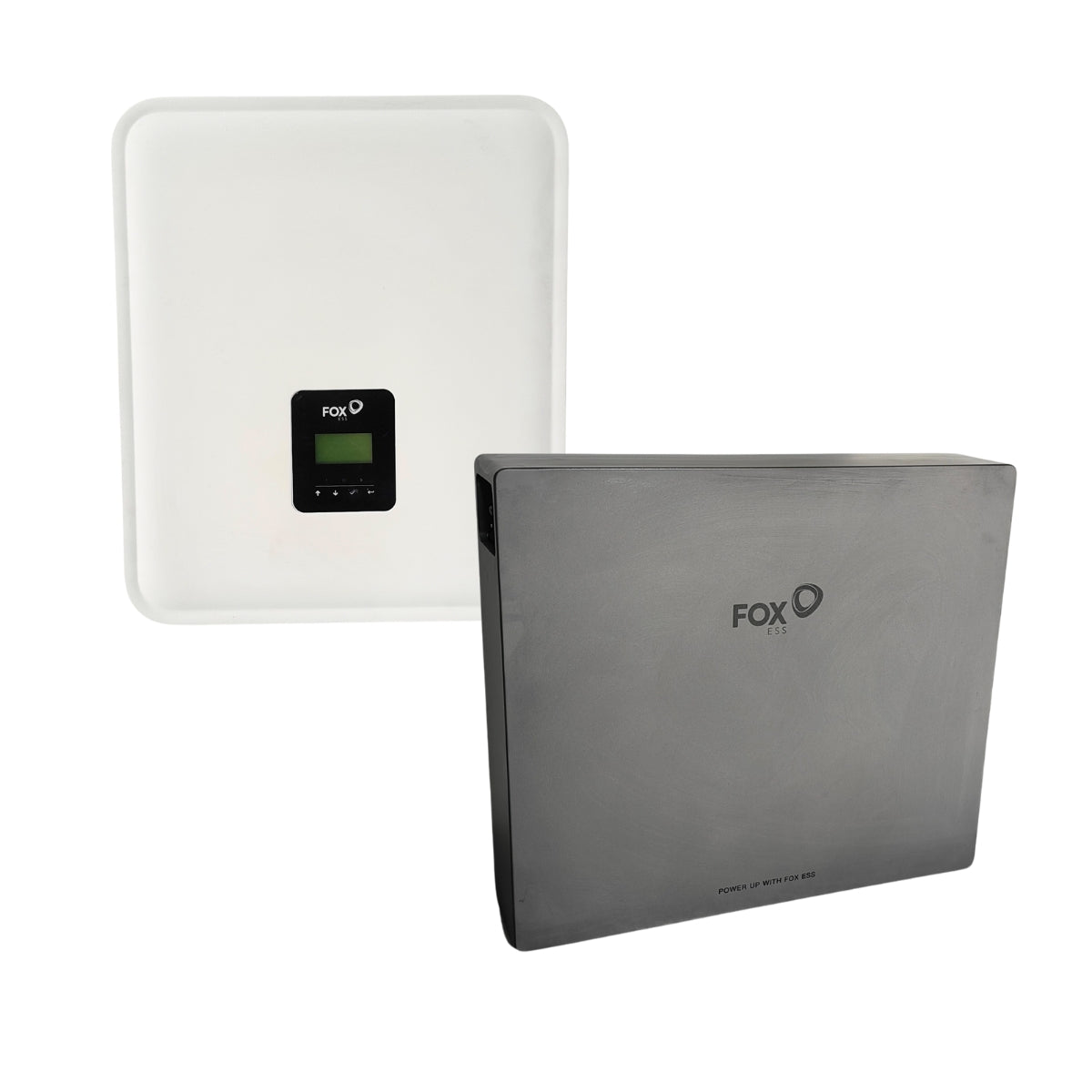

This Combo Consists of:
- 1 x FoxESS 10.5kW Single Phase Hybrid Inverter
- 1 x FoxESS EP 10 10.36kWh High Voltage Battery

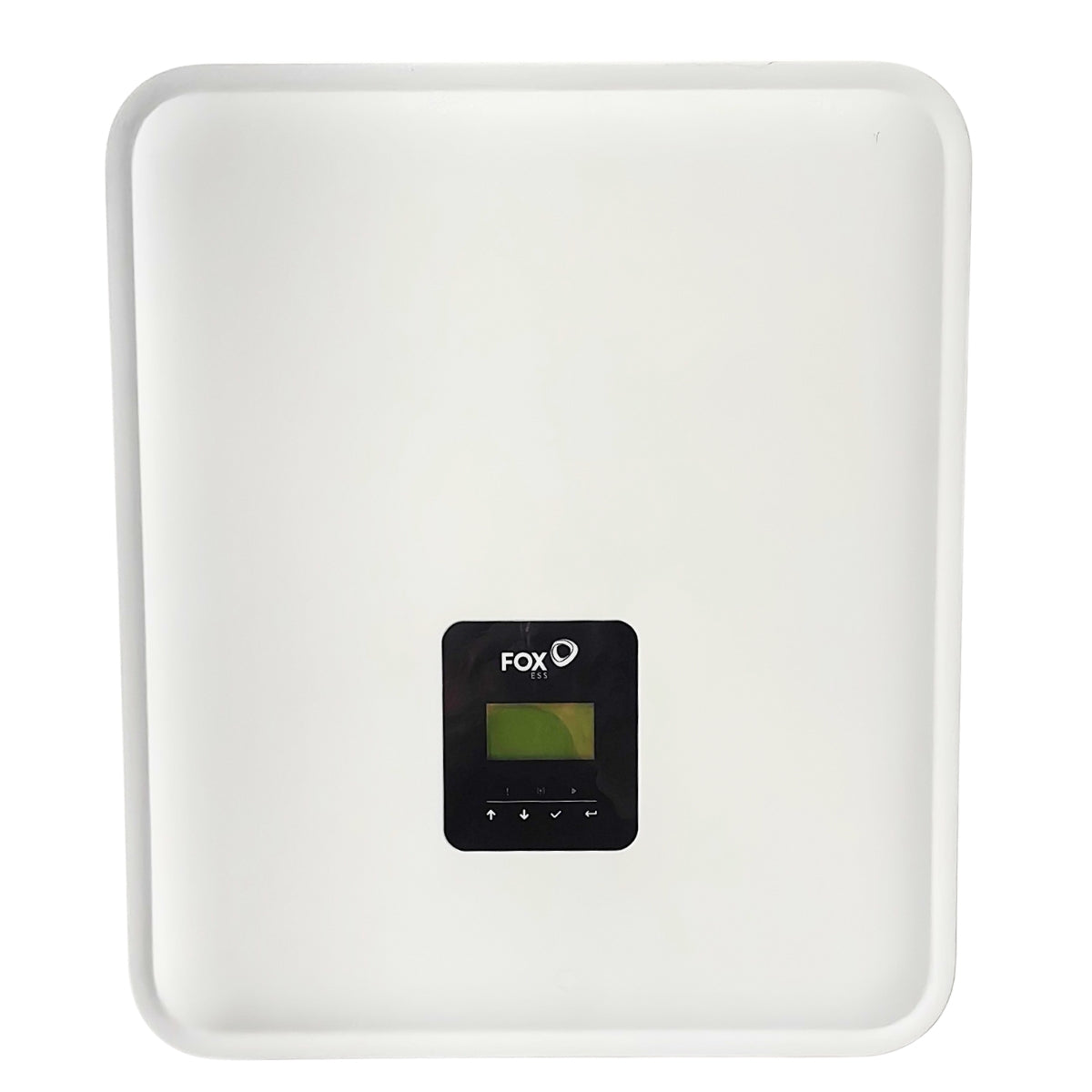

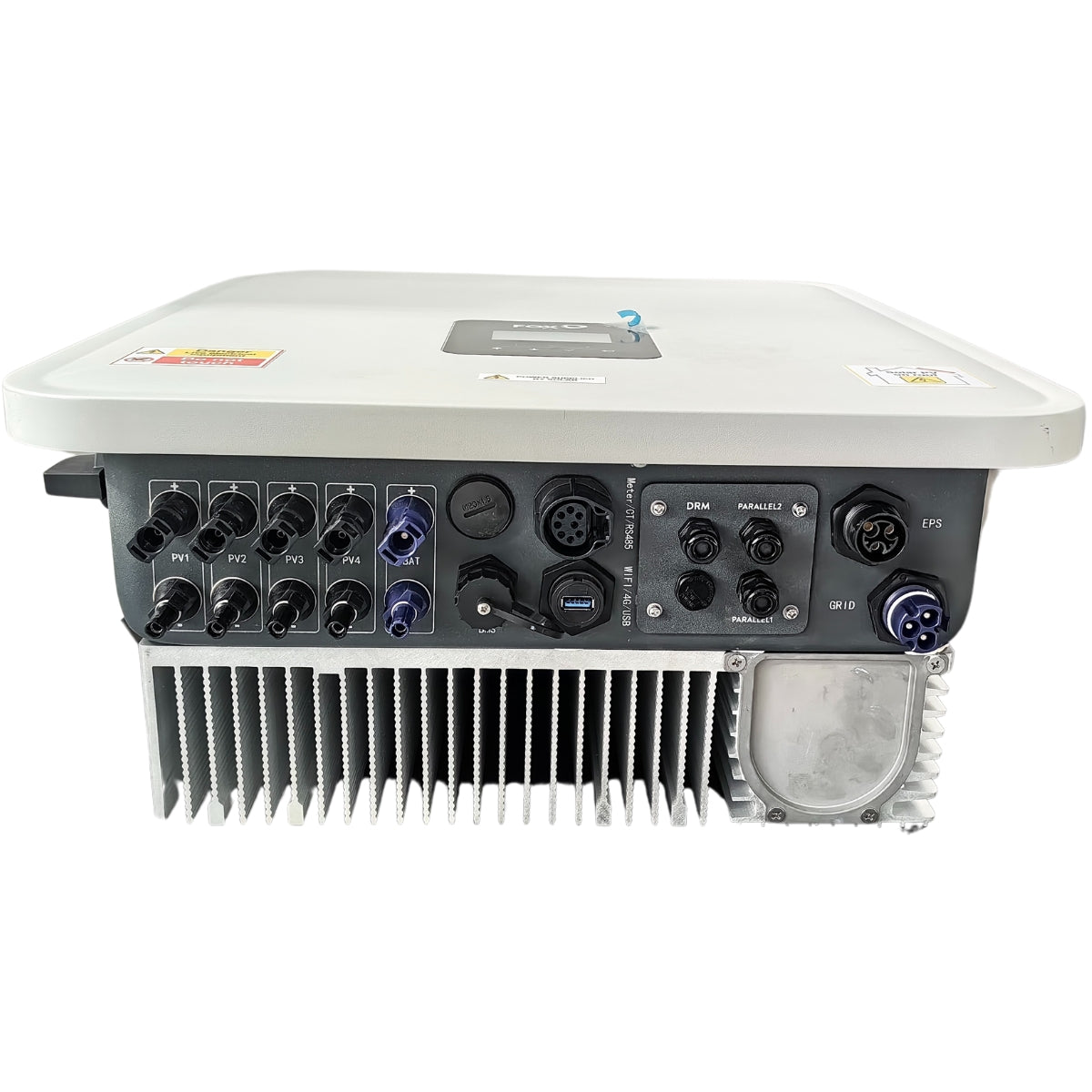

The FoxESS Single Phase 10.5kW Hybrid Fanless Inverter is packed with advanced features paired with the Fox Energy Cube range of high-voltage battery storage.
- The FoxESS 10.5 supports up to 15kW solar panels
- 4 MPPT trackers
- 10.5kW Continuous backup power
- 12kW for 60 seconds
- Can be installed in parallel for up to 10 units
- High voltage lego block 4.03kWh battery from 3 pcs - 7 pcs for up to 28.21kW
- Monitor the system remotely using a web portal or smartphone app / Remote system updates
- South African Grid Certified (NRS97-0-2-1) / On the approved Inverter list for the City Of Cape Town
KH10.5 Model Specifications
| Model | KH10.5 KA10.5 | |
|---|---|---|
| Electrical Characteristics | ||
| Battery Type | Li-Ion | |
| Battery Voltage Range [V] | 85-450 | |
| Recommended Battery Voltage [V] | 300VDC | |
| Max. Charge Current [A] | 50 | |
| Max. Discharge Current [A] | 50 | |
| Communication Interfaces | CAN/ RS485 | |
| Reverse Connect Protection | YES | |
| Input PV (For KH Only) | ||
| Max. Recommended DC Power [W] | 15000 | |
| Max. DC Voltage [V] | 600 | |
| Nominal DC Operating Voltage [V] | 360 | |
| Max. Input Current (Input A / Input B) [A] | 16/16/16 | |
| Max. Short Circuit Current (Input A / Input B) [A] | 20/20/20 | |
| Max. Inverter Backfeed Current to the Array [mA] | 0 | |
| MPPT Voltage Range [V] | 80-500 | |
| Start-up Voltage [V] | 75 | |
| No. of MPP Trackers | 4 | |
| Strings Per MPP Tracker | 1 | |
| DC Disconnection Switch | Optional | |
| Output AC | ||
| Normal AC Power [VA] | 10500 | |
| Max. Apparent AC Power [VA] | 10500 | |
| Rated Grid Voltage (AC Voltage Range) [V] | 220/230/240 (180 to 270) | |
| Rated Grid Frequency [Hz] | 50,60 ±5 | |
| Normal AC Current [A] | 45.7 | |
| Max. AC Current [A] | 45.7 | |
| Displacement Power Factor | 0.8 Leading to 0.8 Lagging | |
| Total Harmonic Distortion (THDI, Rated Power) | <3% | |
| Input AC | ||
| Max. AC Power [VA] | 18000 | |
| Max. AC Current [A] | 78.3 | |
| Rated Grid Voltage (AC Voltage Range) [V] | 220/230/240 (180 to 270) | |
| Rated Grid Frequency [Hz] | 50,60 ±5 | |
| EPS Output (With Battery) | ||
| Max. EPS Power [VA] | 10500 | |
| EPS Rated Voltage [V], Frequency [Hz] | 230VAC, 50/60 | |
| Max. EPS Current [A] | 45.7 | |
| EPS Peak Power [W] | 12000, 60s | |
| Switch Time [s] | <20ms | |
| Total Harmonic Distortion (THDV, Linear Load) | <2% | |
| Parallel Operation | Yes @max10PCS | |
| Efficiency | ||
| MPPT Efficiency | 99.90% | |
| Euro-efficiency | 97.40% | |
| Max. Efficiency | 97.80% | |
| Max. Battery Charge Efficiency (PV to BAT) (@Full Load) | 98.50% | |
| Max. Battery Charge / Discharge Efficiency (BAT to AC) (@Full Load) | 97.00% | |
| Protection | ||
| PV Reverse Polarity Protection | YES | |
| Battery Reverse Protection | YES | |
| Anti-islanding Protection | YES | |
| Output Short Protection | YES | |
| Leakage Current Protection | YES | |
| Insulation Resistor Detection | YES | |
| Over-current Protection / Over-temperature Protection | YES | |
| Over Voltage Category | III (AC side), II (DC side) | |
| AC/DC Surge Protection | Type II / Type II | |
| AFCI Protection | Optional | |
| Power Consumption | ||
| Standby Consumption [W] (Idle) | <15 | |
| Standard | ||
| Safety | IEC62109-1 / -2 / IEC62477 / IEC62477 | |
| EMC | EN 61000-6-1 / EN 61000-6-2 / EN 61000-6-3 | |
| Certification | G98 / G99 / AS4777.2 / EN50549-1 / CEI 0-21 / VDE-AR-N 4105 / NRS 097-2-1 and so on | |
| Environment Limit | ||
| Ingress Protection | IP65 | |
| Protective Class | Class I | |
| Operating Temperature Range [°C] | -25..... +60°C (Derating at +45°C) | |
| Humidity [%] | 0~95 (Non-condensing) | |
| Altitude [m] | <2000 | |
| Storage Temperature [°C] | -40..... +70°C | |
| Noise Emission (Typical) [dB] | <30 | |
| Dimension and Weight | ||
| Dimensions (W * H * D) [mm] | 450*527*203mm | |
| Weight [kg] | 29kg | |
| Cooling Concept | Natural | |
| Topology | Non-isolated | |
| Communication | Ethernet, Meter, WIFI, 4G (Optional), DRM, USB, CT, RS485 | |
| LCD Display | Backlight 16*4 Character | |

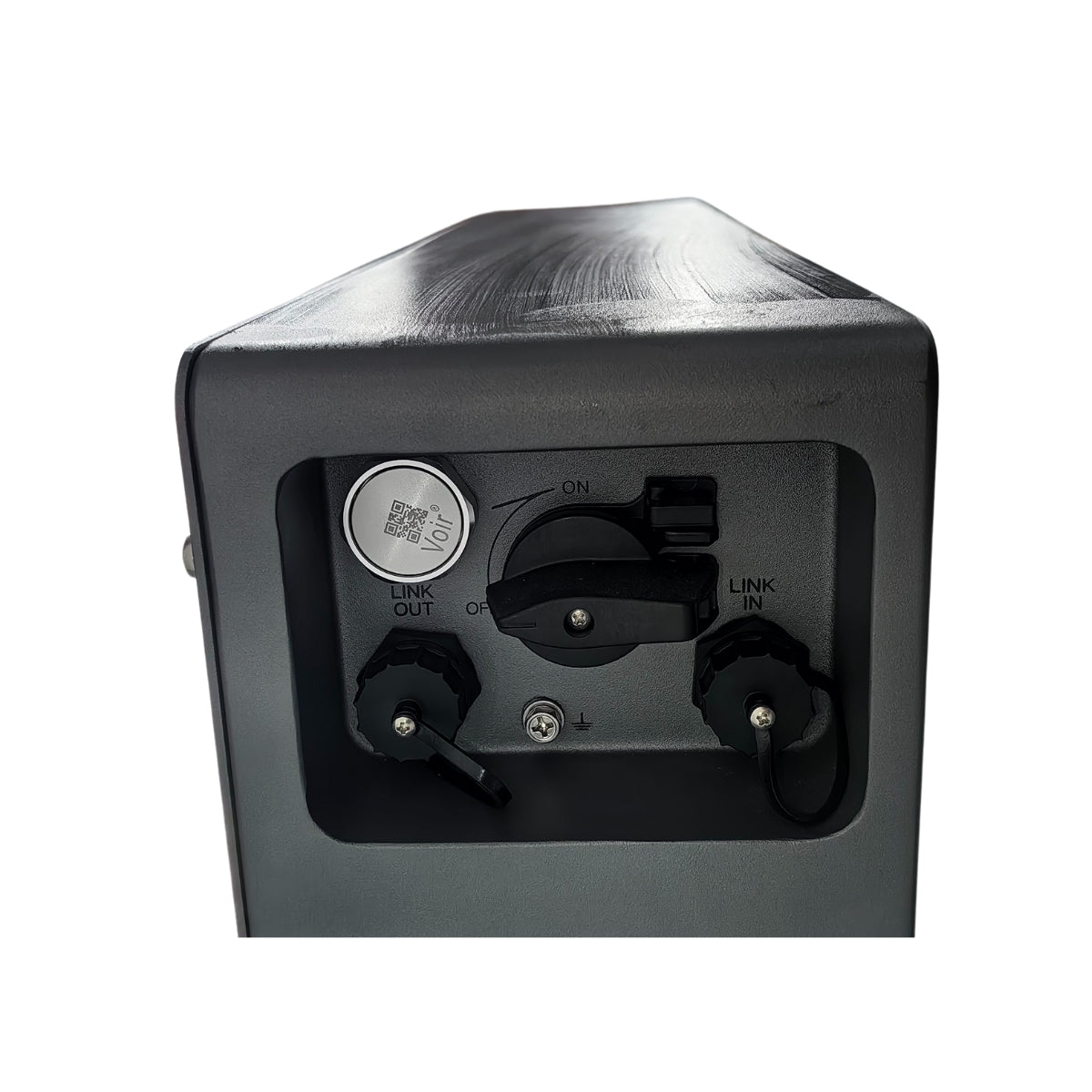

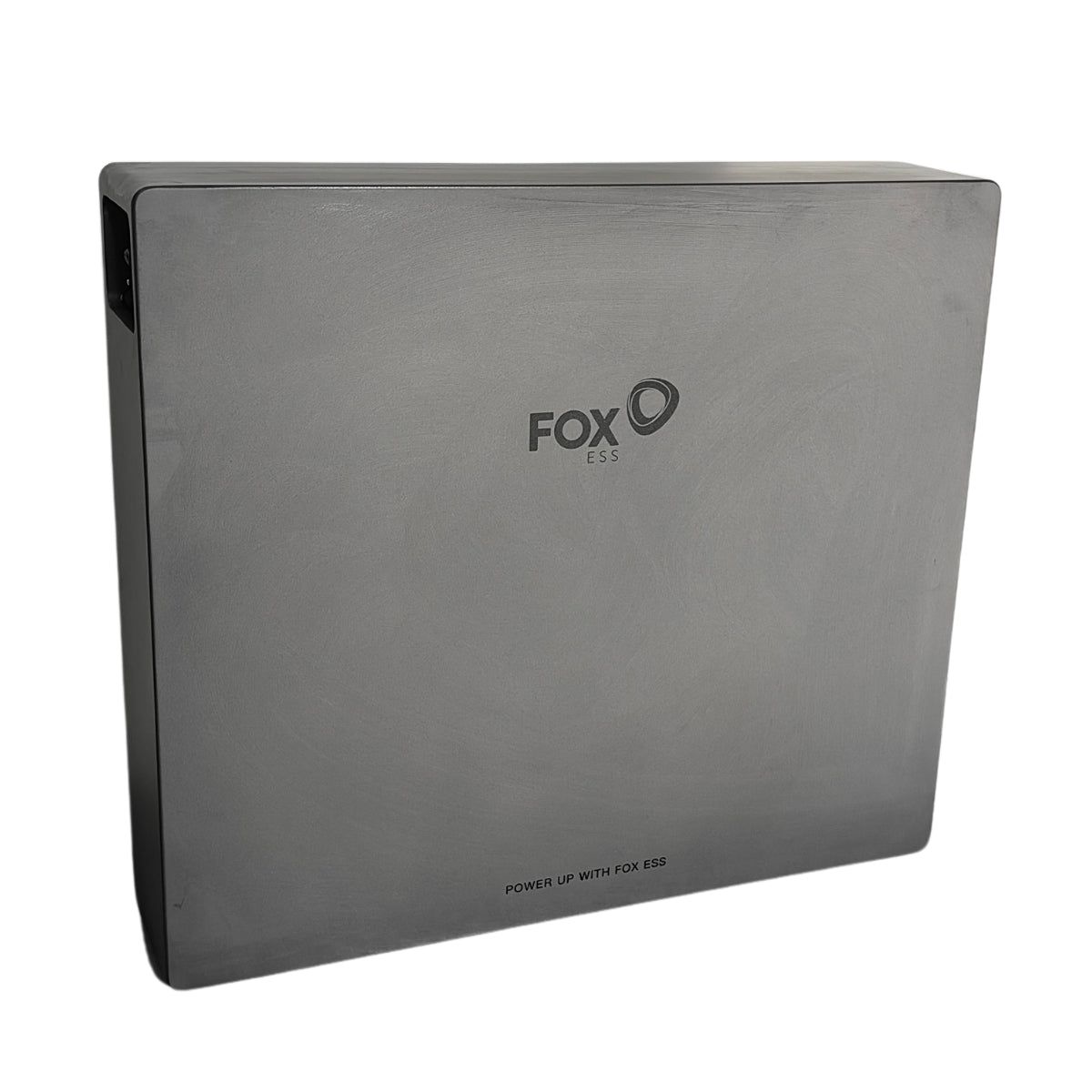

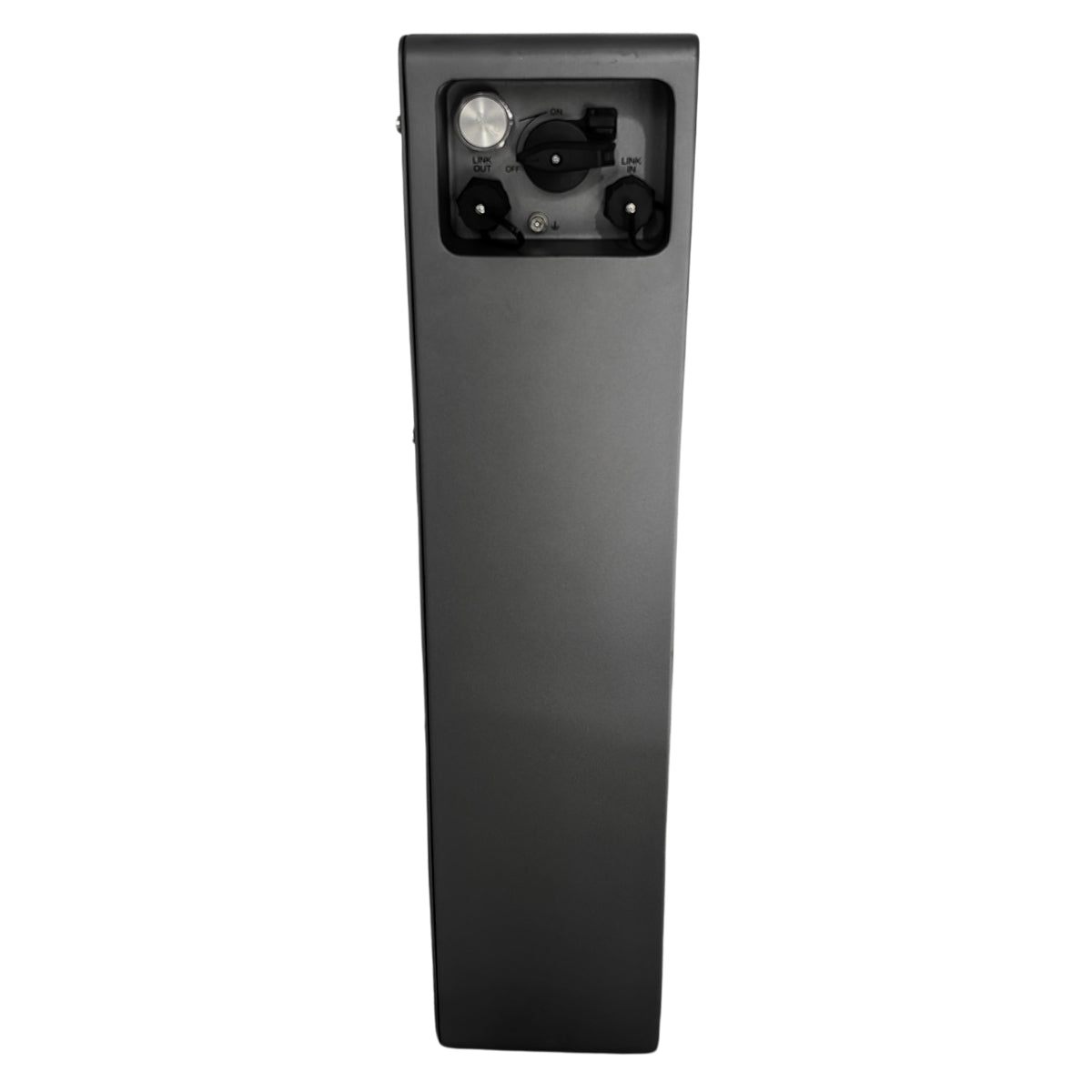

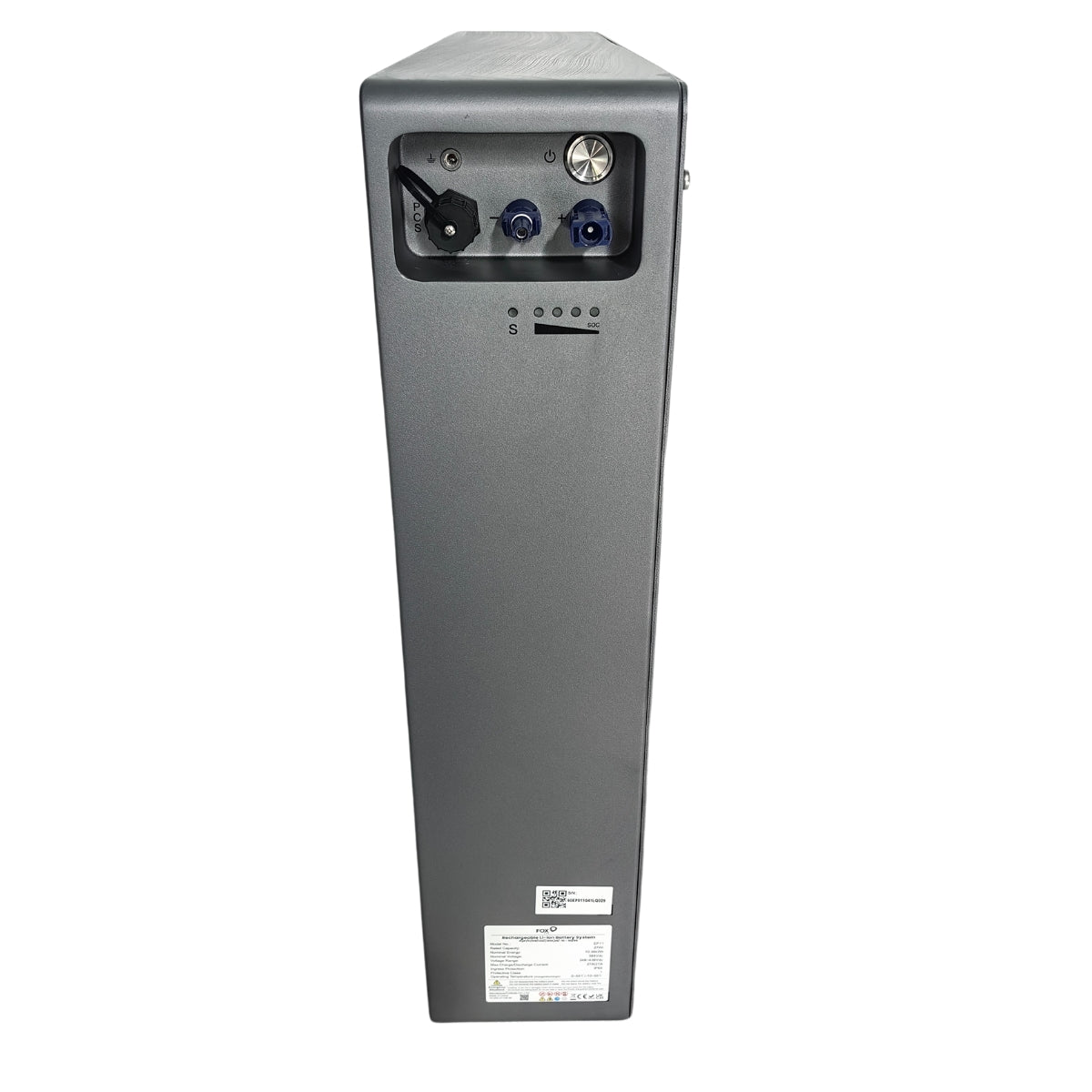

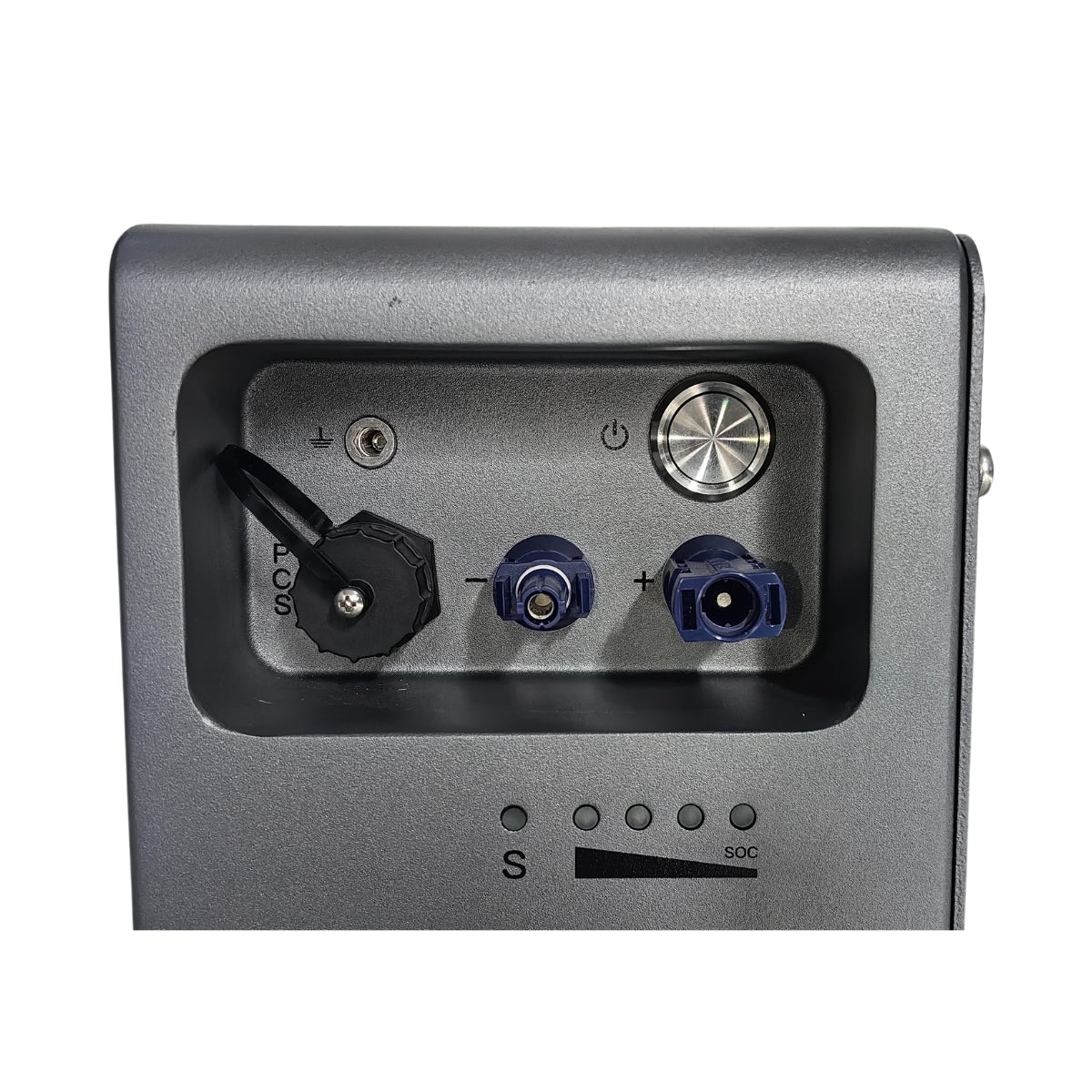

EP10 is an ultra high-performance, scalable battery storage system that allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in parallel allowing for a maximum storage capacity of 41.6kwh.
- Scalable to 41.6 kWh
- 90% Depth of Discharge
- Floor or Wall Mounting
- Compact & Easy Installation
- IP65 Protection Level
- High Voltage and High Efficiency
Fox ESS EP10 High Voltage Storage Battery Specifications
| Specification | EP10 |
|---|---|
| Compatible PCS | All Series of H1, KH, H3, H3-Pro, US |
| Battery Type | LiFePO4 Prismatic Cell |
| Nominal Energy [kWh] | 10.36 |
| Nominal Voltage [V] | 384 |
| Operating Voltage [V] | 348 - 438 |
| Max. Charge/Discharge Current [A] | 27 |
| Recommend Charge Current [A] | 13.5 |
| Peak Discharge Current [A] | 65 @60s |
| Peak Charge Current [A] | 32.4 @5s |
| Battery Pack Round-Trip Efficiency [%] | >95 |
| Depth of Discharge [%] | 90 |
| Cycle Life | >4000 |
| Communication | CAN |
| Display | LED*5 |
| Scalability | Max. 4 Units in Parallel |
| Operating Conditions | |
| Installation Location | Outdoor/Indoor |
| Operating Temperature [°C] | Charge: 0 - 55, Discharge: -10 - 55 |
| Storage Temperature [°C] | 0 - 35 |
| Cooling Method | Natural Convection |
| Humidity [%] | 5 - 95 (No Condensing) |
| Altitude [m] | Max. 2000 |
| Mechanical Characteristics | |
| Dimensions (WHD) [mm] | 710625147 |
| Weight [kg] | 99±2 |
| Certificates | |
| Safety | IEC 62619 |
| EMC | EN IEC 61000-6-1/3 |
| Transportation | UN38.3 |
| Ingress Protection | IP65 |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
