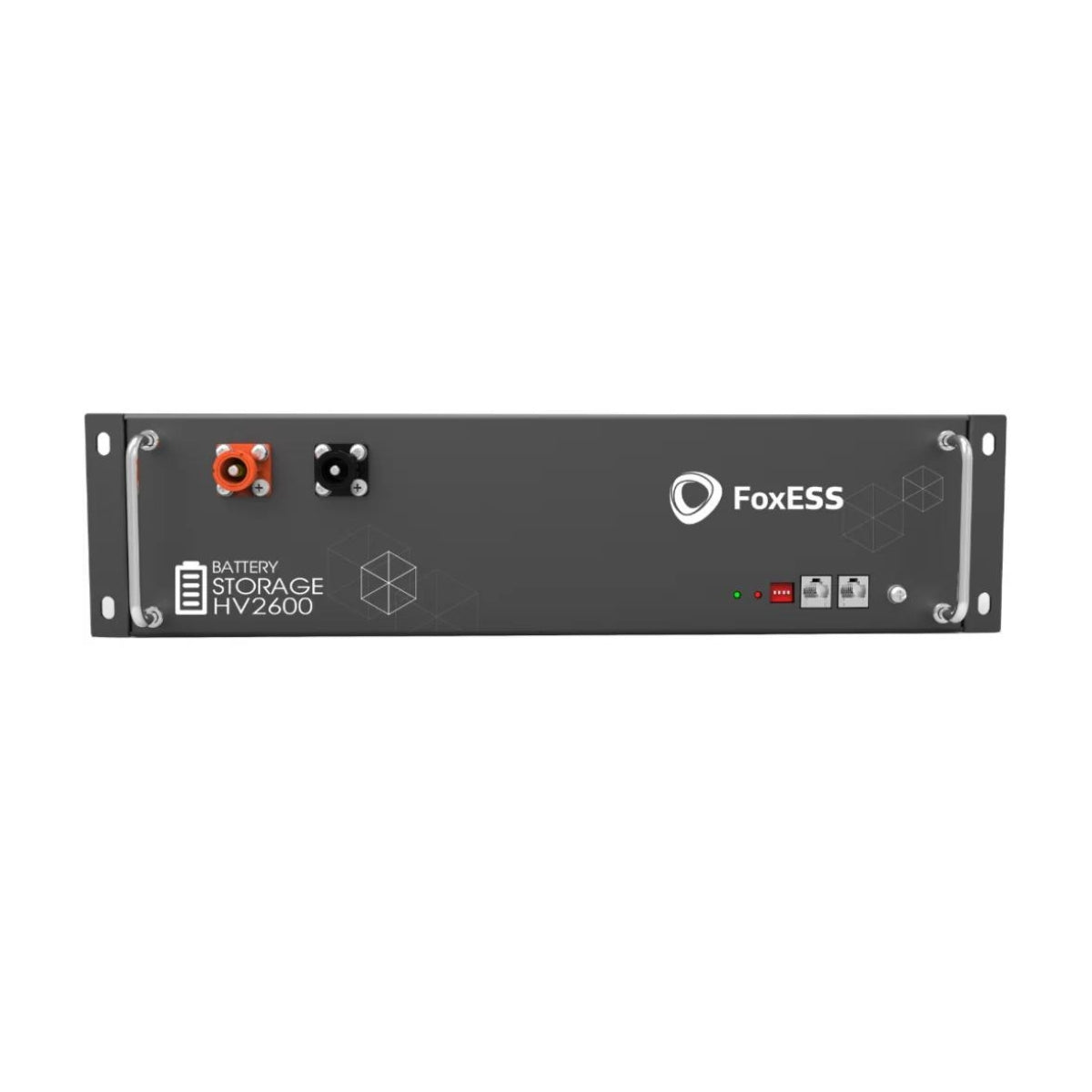

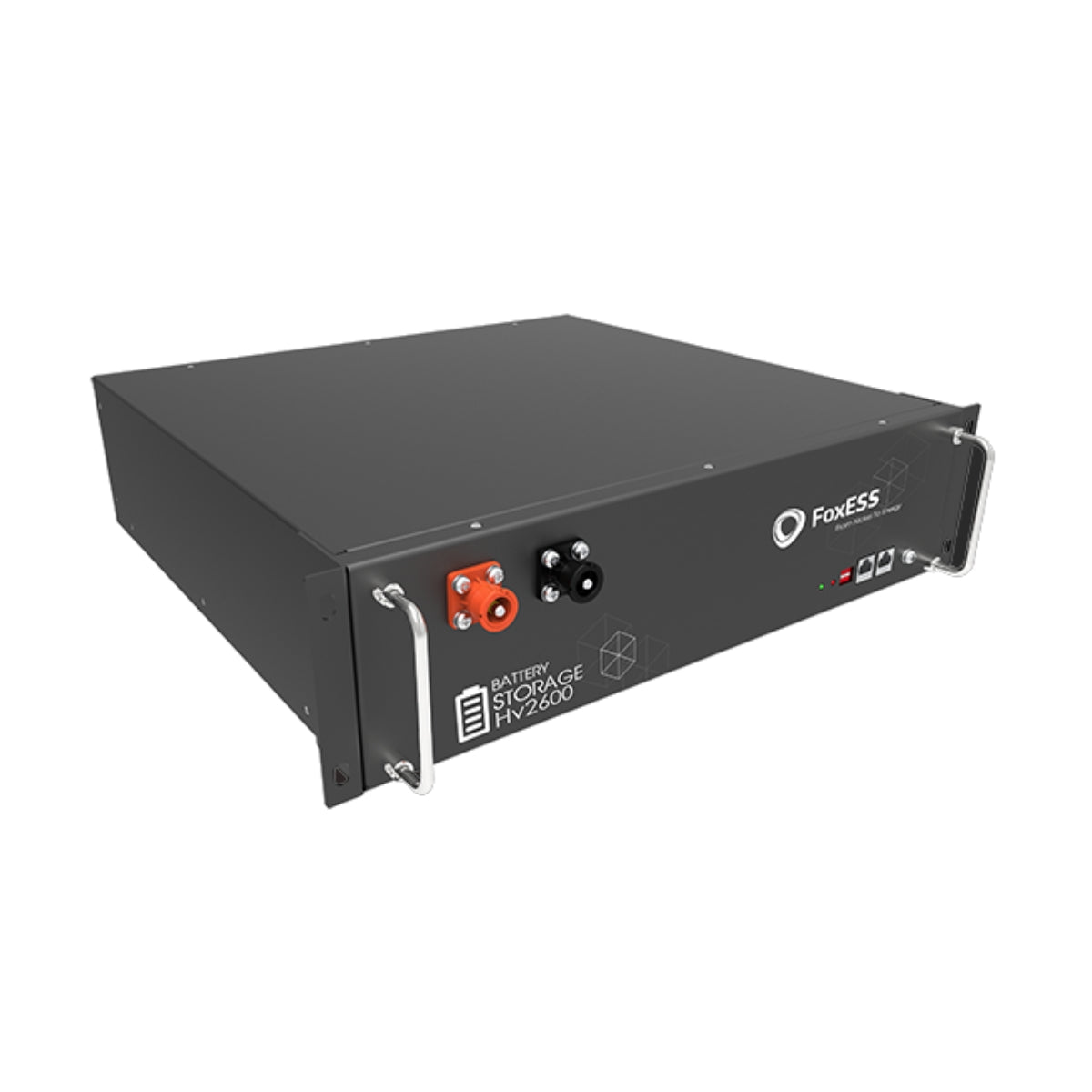

The HV2600 is a high-performance, scalable battery storage module. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series ,allowing for a maximum storage capacity of20.48kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
Features:
- 2.56kWh Capacity
- Scalable to 20.48 kWh
- 90% Depth of Discharge
- Wide Temperature Tolerance
- Easy Installation
- CAN/RS485 Communication
- High Voltage
- High Voltage
- Easy Installation
- High Efficiency
- Expandable System
| Technical Specifications for HV2600 | ||||
| Electrical Characteristics | ||||
| Battery Type | LifePO4 Prismatic Cell | |||
| Nominal Capacity [kWh] | 5120 | |||
| Nominal Voltage [V] | 102.4 | |||
| Operating Voltage [V] | 80 ~ 116.8 | |||
| Max.Charge/Discharge Current [A]*1 | 50 | |||
| Recommend Charge Current [A] | 25 | |||
| Peak Discharge Current [A] | 65 @60s | |||
| Peak Charge Current [A] | --------- | |||
| Battery Pack Round-Trip Efficiency [%] | ≥95 | |||
| Depth of Discharge [%] | 90 | |||
| Cycle Life | ≥6000 | |||
| Communication | CAN, RS485 | |||
| Display | HV2600: LED*2, BMS BOX HV: LED*6 | |||
| Scalability Max. 8 Units in Series | ||||
| OPERATING CONDITIONS | ||||
| Installation Location Indoor/Stand | ||||
| Operating Temperature [°C] Charge: 0 ~ 50Discharge: -10 ~ 50 | ||||
| Storage Temperature [°C] -20 -50 | ||||
| Cooling Method Natural Convection | ||||
| Humidity [%] 5 ~ 85 (No Condensing) | ||||
| Altitude [m] Max. 2,000 | ||||
| MECHANICAL CHARACTERISTICS | ||||
| Dimensions (W*H*D) [mm] | 420*116*480 | |||
| Weight [kg]: 4.5 | ||||
| CERTIFICATES | ||||
| Safety | IEC62619 | |||
| EMC EN IEC 61000-6-1/2/3/4 | ||||
| Transportation UN38.3 | ||||
| Ingress Protection IP21 | ||||
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
