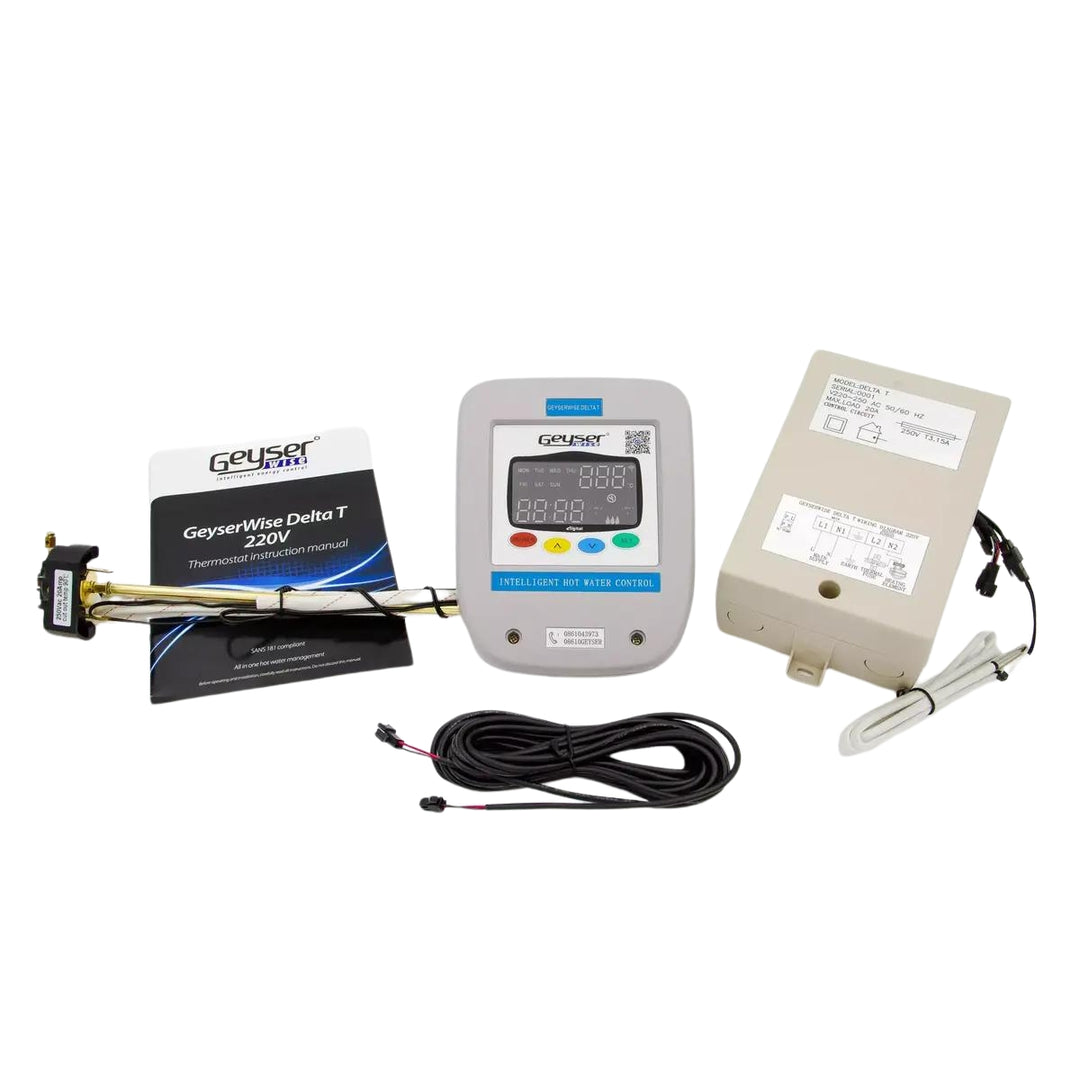

Smart Wifi Geyser Controller. Download the Tuya Smart App and manage your geyser from your phone anywhere in the world.

Download For IOS

Download for Android

Using the app will enable you to:

• View your geyser temperatures
• Set your temperatures
• Switch Your Geyser On And Off from virtually anywhere.
• Manage Your Geyser like a wifi geyser controller.

Description

Use as a geyser timer or use as timer on a thermosyphon solar system.

• Clear display of water temperature, time, day, heating mode and malfunction conditions.
• Auto or manual heating.
• Easy temperature setting to your requirements (30 – 75°C) factory default is 55°C.
• Four different temperature settings.
• Daily programmable timer with four time settings.
• Error conditions alert by warning code E2 to E5 and E7.
• Electronic thermostat with mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.

Use as differential controller on 220V pumped solar water heating system

• Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
• Auto or manual heating.
• Easy temperature setting to your requirements (30 – 75°C) factory default is 55°C.
• Four different temperature settings.
• Daily programmable timer with four time settings.
• Error conditions alert by warning code E2 to E5 and E7 to E9.
• Electronic thermostat with mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.
• Differential controller for 220V pumped systems.

Technical Parameters

• Operating voltage 230VAC / 50HZ.
• Main relay contact rating 30AMP (Max 4KW).
• Operating voltage range 220V – 250V AC.
• Temperature display range 0 – 99°C (“-5” when below -5°C “EA” when above 99°C).
• High temperature warning above 84°C.
• Temperature setting ranges 30 – 75°C (heating water electrically).
• Heat failure – when increase at a rate of less than 4°C per hour.
• Mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.
• Dry heat detection – empty cylinder.
• Temperature tolerance ± 2%.
• Temperature differential setting 1°C.
• Switching differential 6°C.
• Temperature probe failure detection for tank
• Temperature probe range for geyser is -30 to + 130°C.
• Solar differential 7°C to 15°C – default is 7°C.
• Anti-Freeze 0° to 10°C. Default is 5°C
