Technical Specifications
- Maximum Power: 100W.
- Rated Power: 90W.
- Minimum Power: 46W.
- Diameter: 25mm.
- Voltage: 220V.
- Frequency: 50Hz.
- Maximum water temperature: 110ºC.
- Maximum ambient temperature: 40ºC.
- Maximum working pressure: 10 bar.
- Speed: Variable (3-speeds).

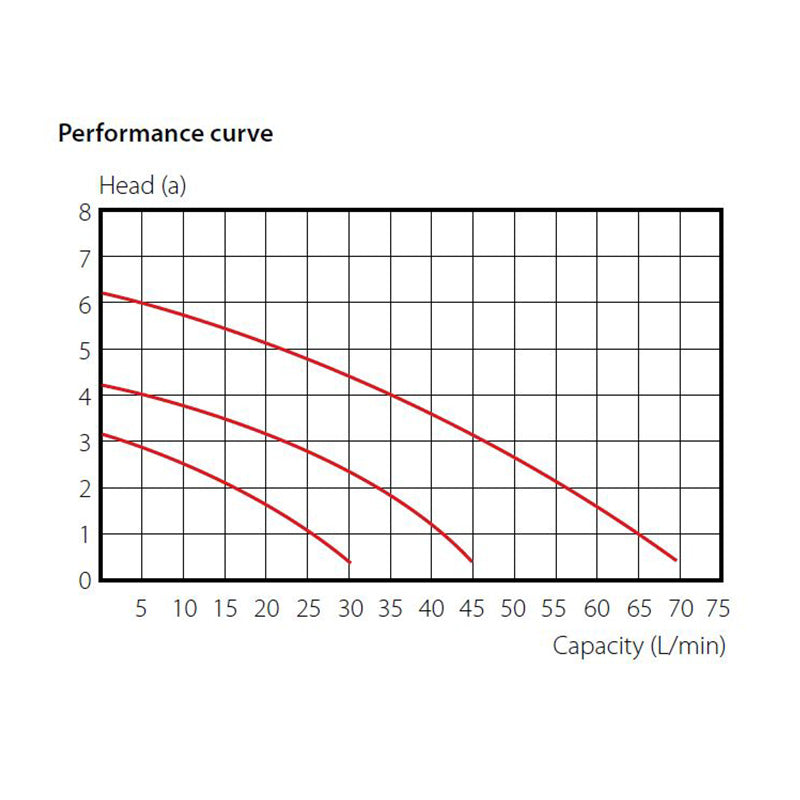

- Head: 3 - 6m.
- Max capacity L/min: 20 - 40.
- Speed (r/min): 1450 - 2200.

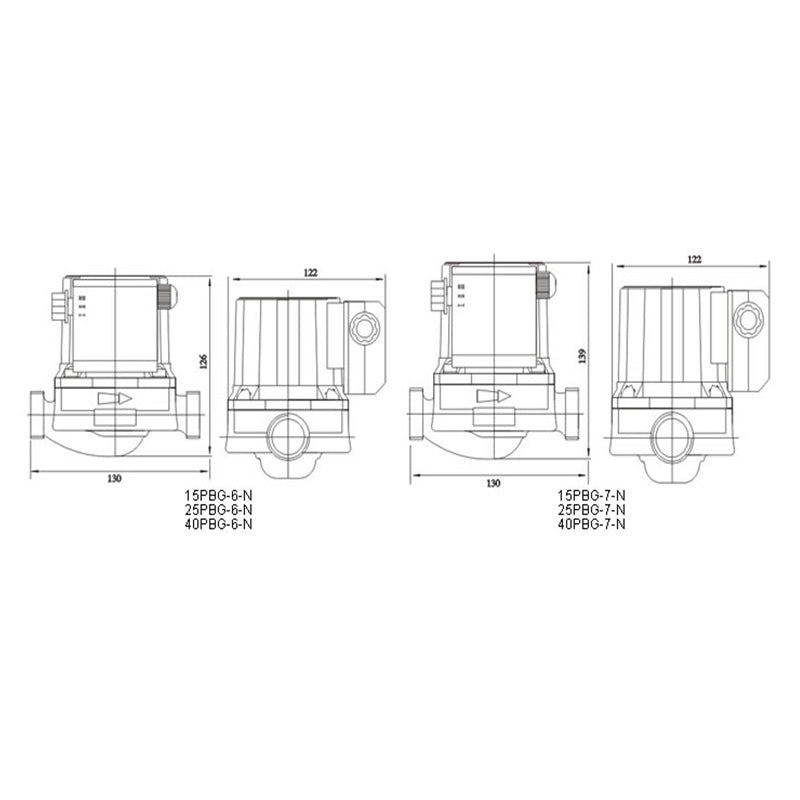

- Dimensions: 130mm x 126mm x 122mm.
- Weight: 2.5 kg.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
