Product Overview

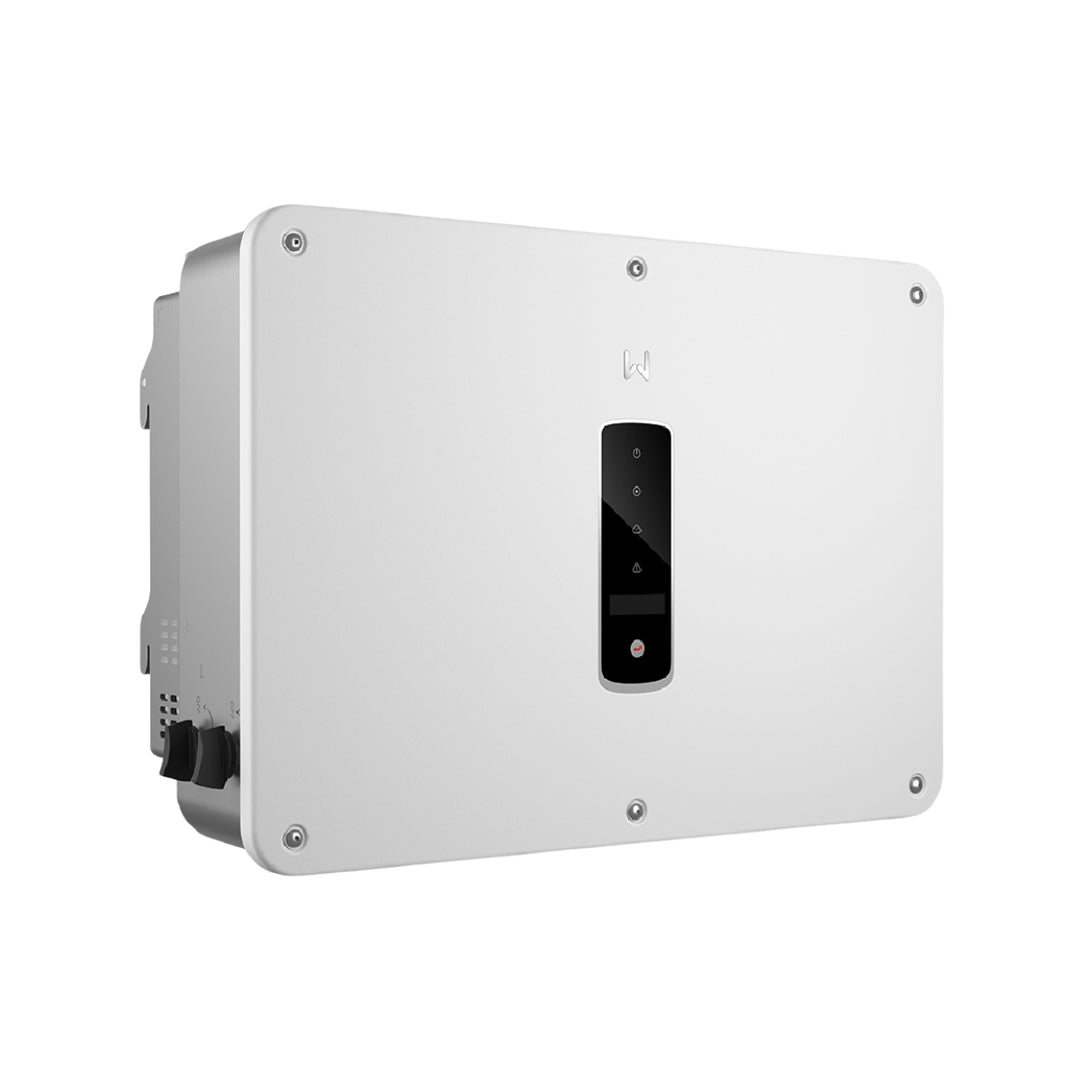

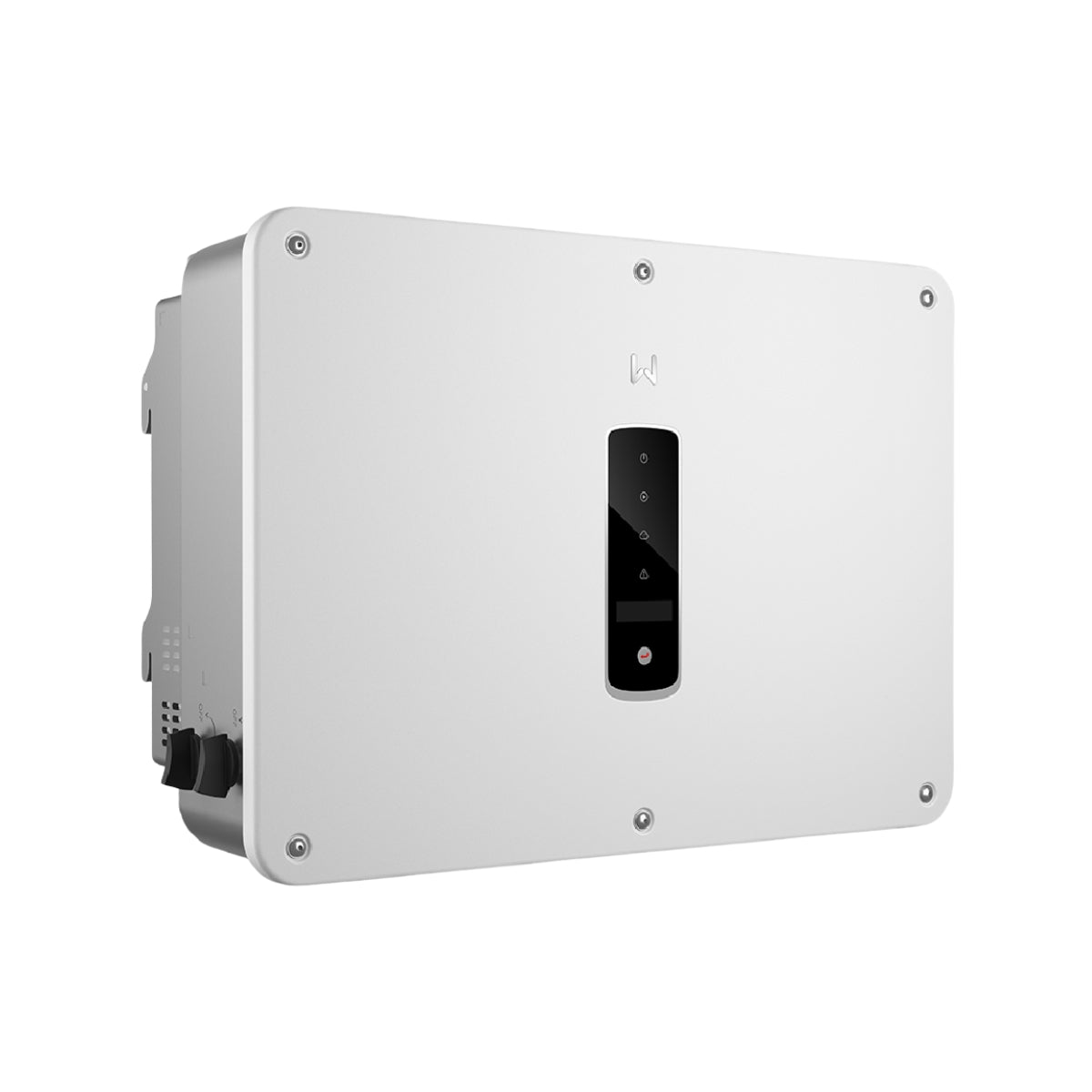

The GoodWe GW80K-SMT is a three-phase on-grid string inverter designed for commercial and industrial rooftop PV systems. With an 80kW nominal output, 6 MPPTs and support for high-current PV strings, it is well suited to commercial sites that need reliable energy yield, flexible array design and robust outdoor performance.
Key Features
- 80kW three-phase grid-tied string inverter for commercial and industrial PV applications.
- 6 MPPTs help improve design flexibility across different roof sections, string layouts and orientations.
- Supports up to 21A DC input current per string for compatibility with modern high-power PV modules.
- Up to 150% DC input oversizing supports stronger solar harvesting and improved design flexibility.
- Type II surge protection on both DC and AC sides helps improve system protection and reliability.
- IP66-rated enclosure and smart fan cooling support dependable outdoor operation in demanding conditions.
Applications
- Commercial rooftop solar PV systems.
- Industrial grid-tied solar installations.
- Projects using high-power solar modules with higher string current requirements.
- Sites requiring multiple MPPTs for more flexible rooftop array design.
Why Choose This Product?
The GW80K-SMT is a practical option for commercial PV rooftops that need strong output capacity, flexible string design and reliable outdoor performance. Its 6-MPPT layout, high-current string support and compact high-power design make it a strong fit for C&I rooftop projects.
Important Notes
- This is an on-grid inverter intended for commercial and industrial PV applications.
- Installation and commissioning should be completed by a qualified electrician or solar installer.
- Optional functions such as AFCI, PID recovery, reactive power compensation at night and power supply at night should be confirmed against the exact supplied variant before publishing.
- Final communication method, grid-code compliance and monitoring setup should be confirmed for the project before specification.
Technical Specifications
| Specification |
Detail |
| Brand |
GoodWe |
| Model |
GW80K-SMT |
| Product Type |
Three-phase on-grid string inverter |
| Nominal Output Power |
80kW |
| Application |
Commercial and industrial grid-tied PV systems |
| Number of MPPTs |
6 |
| Strings per MPPT |
2 |
| Max. Input Voltage |
1100V |
| MPPT Operating Voltage Range |
180 - 1000V |
| Start-up Voltage |
200V |
| Nominal Input Voltage |
600V |
| Max. Input Current per MPPT |
42A |
| Max. Short Circuit Current per MPPT |
52.5A |
| Nominal Output Voltage |
220 / 380V, 230 / 400V, 3L/N/PE or 3L/PE |
| Output Voltage Range |
323 - 457V |
| Nominal Grid Frequency |
50 / 60Hz |
| Max. Output Current |
128A |
| Max. Efficiency |
98.6% |
| European Efficiency |
98.1% |
| DC Surge Protection |
Type II (Type I + II optional) |
| AC Surge Protection |
Type II |
| Ingress Protection Rating |
IP66 |
| Cooling Method |
Smart fan cooling |
| User Interface |
LED, LCD (optional), WLAN + app |
| Communication |
RS485, WiFi or LAN or 4G |
| Communication Protocol |
Modbus-RTU |
| Dimensions |
700 × 550 × 260mm |
| Weight |
64kg |
| Topology |
Non-isolated |
