Product Overview

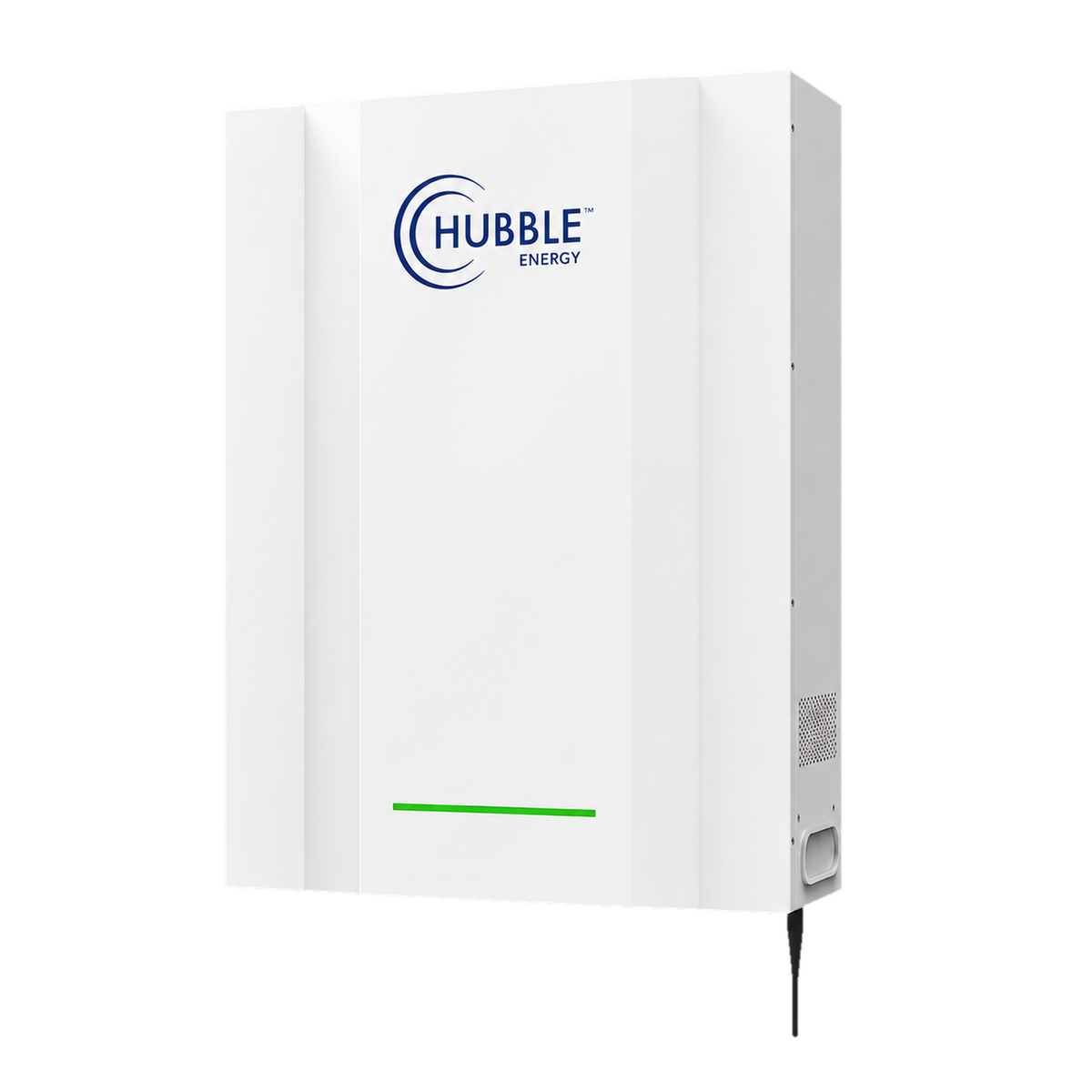

The Hubble AM2+ is a 5.5kWh, 48V lithium battery designed for residential and small-business backup power, hybrid and solar power systems. Its Any Mount format supports wall mounting or shelf/rack installation, while the integrated battery management system, CAN-bus communications and Hubble Cloudlink monitoring provide practical control and system visibility.
Key Features
- 5.5kWh design capacity with a 48V nominal voltage and 117Ah rated capacity.
- 1C rating with up to 105A continuous charging and 105A continuous discharging current.
- Integrated 24/7 monitoring with the Hubble Cloudlink.
- Internal fire suppression system and built-in protection for over-charge, over-discharge and over-temperature conditions.
- Advanced BMS with current limiting and CAN-bus communications for supported inverter integrations.
- Flexible installation with wall-mount or shelf/rack mounting options.
- Parallel operation of up to 15 battery packs with full communications.
- Heavy-duty side handles assist with handling and installation.
Applications
- Residential solar power systems requiring lithium battery storage.
- Backup power installations for homes and small businesses.
- Hybrid inverter systems where Hubble AM2+ compatibility is supported.
- Scalable storage installations requiring multiple parallel battery packs.
Why Choose This Product?
The Hubble AM2+ combines a practical 5.5kWh storage capacity with 1C charge and discharge capability, flexible mounting and integrated monitoring. Its advanced BMS, protection functions and scalable parallel configuration make it suitable for professionally designed backup and solar storage systems where the required inverter compatibility has been confirmed.
Important Notes
- Inverter and charger compatibility must be confirmed against Hubble's current compatibility guidance before installation.
- Installation and commissioning should be completed by a suitably qualified solar or electrical installer.
- The manufacturer states a 10-year warranty, subject to Hubble Energy's warranty terms and conditions.
- Battery configuration, charge settings and communications must follow the manufacturer's installation requirements.
Technical Specifications
| Specification |
Detail |
| Brand |
Hubble |
| Model |
AM2+ |
| Product Type |
Lithium Battery |
| Design Capacity |
5.5kWh |
| Rated Capacity (5HR) |
117Ah |
| Nominal Voltage |
48V |
| Equalised Charge Voltage |
53.8V |
| Maximum Continuous Charging Current |
105A |
| Maximum Continuous Discharging Current |
105A |
| C Rating |
1.0C |
| Cells |
New Li-ion prismatic cells |
| Parallel Operation |
Up to 15 packs with full communications |
| Communication Ports |
1 x CAN-bus, 2 x Battery Link Ports |
| Dimensions (W x D x H) |
375mm x 145mm x 467mm |
| Weight |
Approx. 42kg |
| Design Life |
± 15 years |
| Cycle Life @ 1C |
± 6000 cycles @ 50% DOD; above 3000 cycles @ 100% DOD |
| Charging Temperature |
0°C to 55°C |
| Discharging Temperature |
-20°C to +55°C |
| Storage Temperature |
-20°C to +55°C |
| Protection |
Electronic circuit breaker, BMS voltage protection, current limiting |
| Certifications |
CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015 |
| Outer Package Material |
White bake lacquer steel case |
| Warranty |
10 years, subject to terms and conditions |
