Product Overview

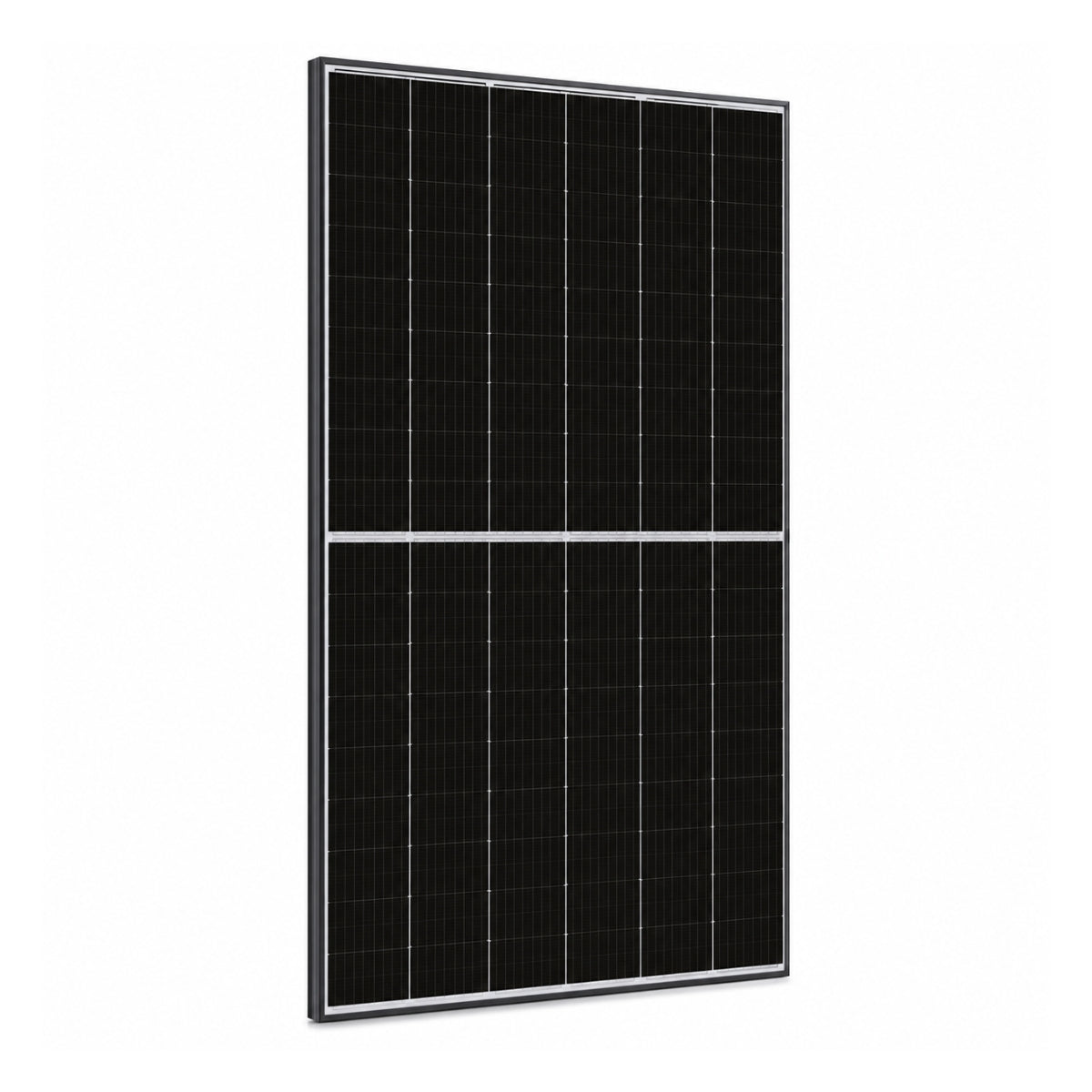

The JA Solar JAM54D40-465/LR is a 465W n-type double glass monofacial solar panel designed for residential, commercial and solar power system installations. Its high-efficiency n-type cell technology, black frame and double-glass construction provide a robust, high-output module for installations where dependable energy generation and long-term performance are important.
Key Features
- 465W rated maximum power with 23.3% module efficiency.
- n-type monofacial module using 108 cells (6 × 18) for efficient solar generation.
- Double-glass construction with 1.6mm front and 1.6mm back glass.
- Black anodised aluminium alloy frame for a neat installed appearance.
- IP68 junction box with three bypass diodes.
- 30-year linear power output warranty and 25-year product warranty stated by the manufacturer.
Applications
- Residential rooftop solar power systems.
- Commercial and light industrial PV installations.
- Grid-tied, hybrid and off-grid PV arrays where system design supports the module electrical characteristics.
Why Choose This Product?
This JA Solar module combines a 465W output rating, 23.3% module efficiency and n-type cell technology in a compact 54-cell-format panel. Its double-glass construction and established JA Solar module platform make it a practical option for professional PV installations where space utilisation, output and long-term module performance matter.
Important Notes
- Solar array voltage and current must be checked against the inverter, charge controller and overall system design before installation.
- Installation should be completed by a suitably qualified solar installer in accordance with applicable electrical and structural requirements.
- Maximum system voltage is 1500V DC.
- Connector type stated in the manufacturer datasheet is QC 4.10-351 / MC4-EVO2A.
Technical Specifications
| Specification |
Detail |
| Brand |
JA Solar |
| Model |
JAM54D40-465/LR |
| Product Type |
n-type Double Glass Monofacial Solar Module |
| Rated Power |
465W |
| Module Efficiency |
23.3% |
| Open Circuit Voltage (Voc) |
40.20V |
| Maximum Power Voltage (Vmp) |
33.50V |
| Short Circuit Current (Isc) |
14.65A |
| Maximum Power Current (Imp) |
13.88A |
| Power Tolerance |
0~+3% |
| Cells |
108 (6 × 18) |
| Dimensions |
1762 × 1134 × 30mm |
| Weight |
22kg |
| Front / Back Glass |
1.6mm / 1.6mm |
| Junction Box |
IP68, 3 diodes |
| Maximum System Voltage |
1500V DC |
| Maximum Series Fuse Rating |
25A |
| Operating Temperature |
-40°C to +85°C |
| Maximum Static Load, Front |
5400Pa |
| Maximum Static Load, Back |
2400Pa |
| Warranty |
25-year product warranty; 30-year linear power output warranty |
