Technical Data:

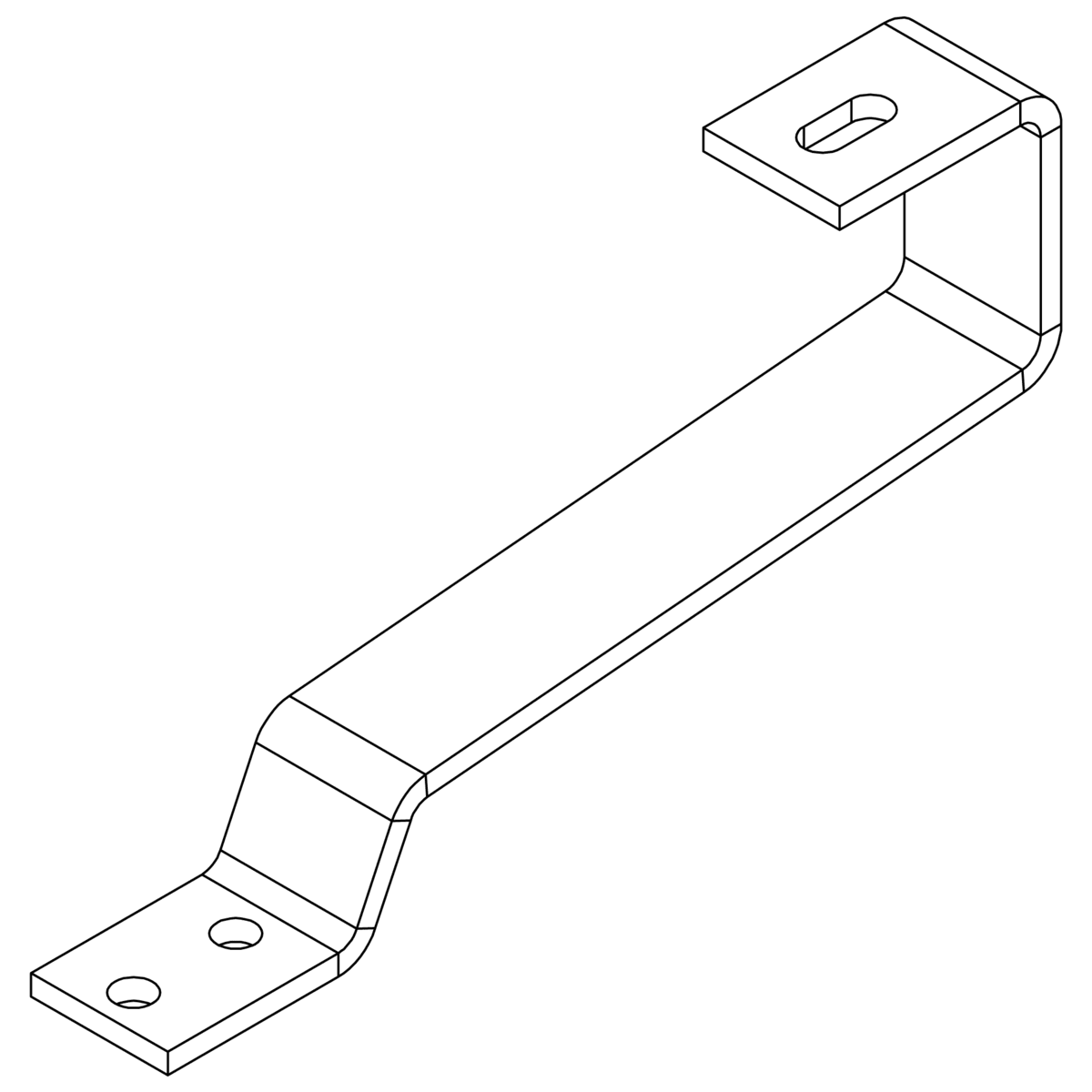

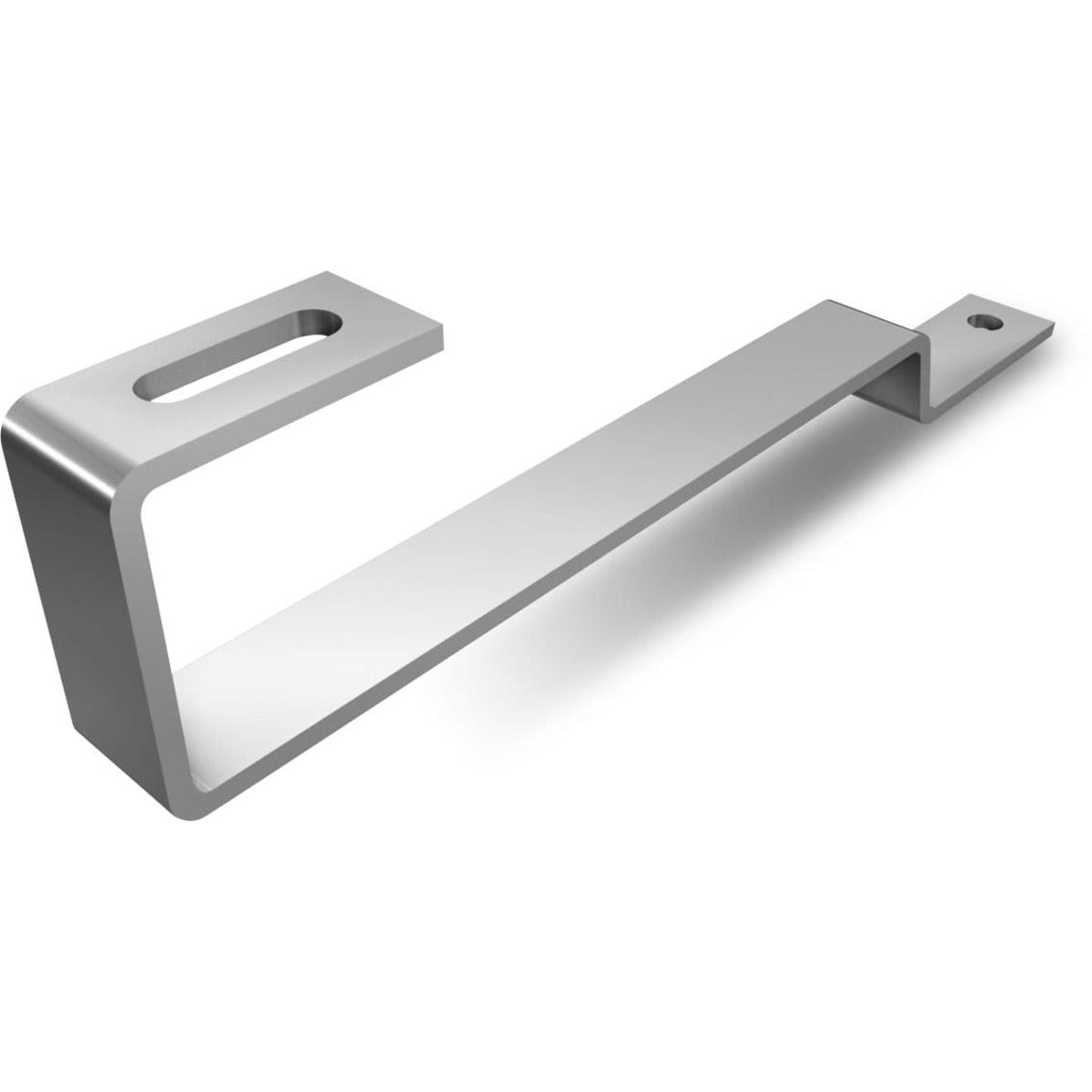

- For fastening of K2 System parts on clay brick roofs with flat tile roofing.
- Bracket with elongated hole to fix the SolidRail with T-Bolt and Nut M10.
- Base plate: 40x50 mm
- Height under bracket: 33 mm
- Bracket height: 62 mm
- Total height: 122 mm
- Bracket depth: 189 mm
- Material: Stainless steel A2 (1.4301)
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
