Product Description:

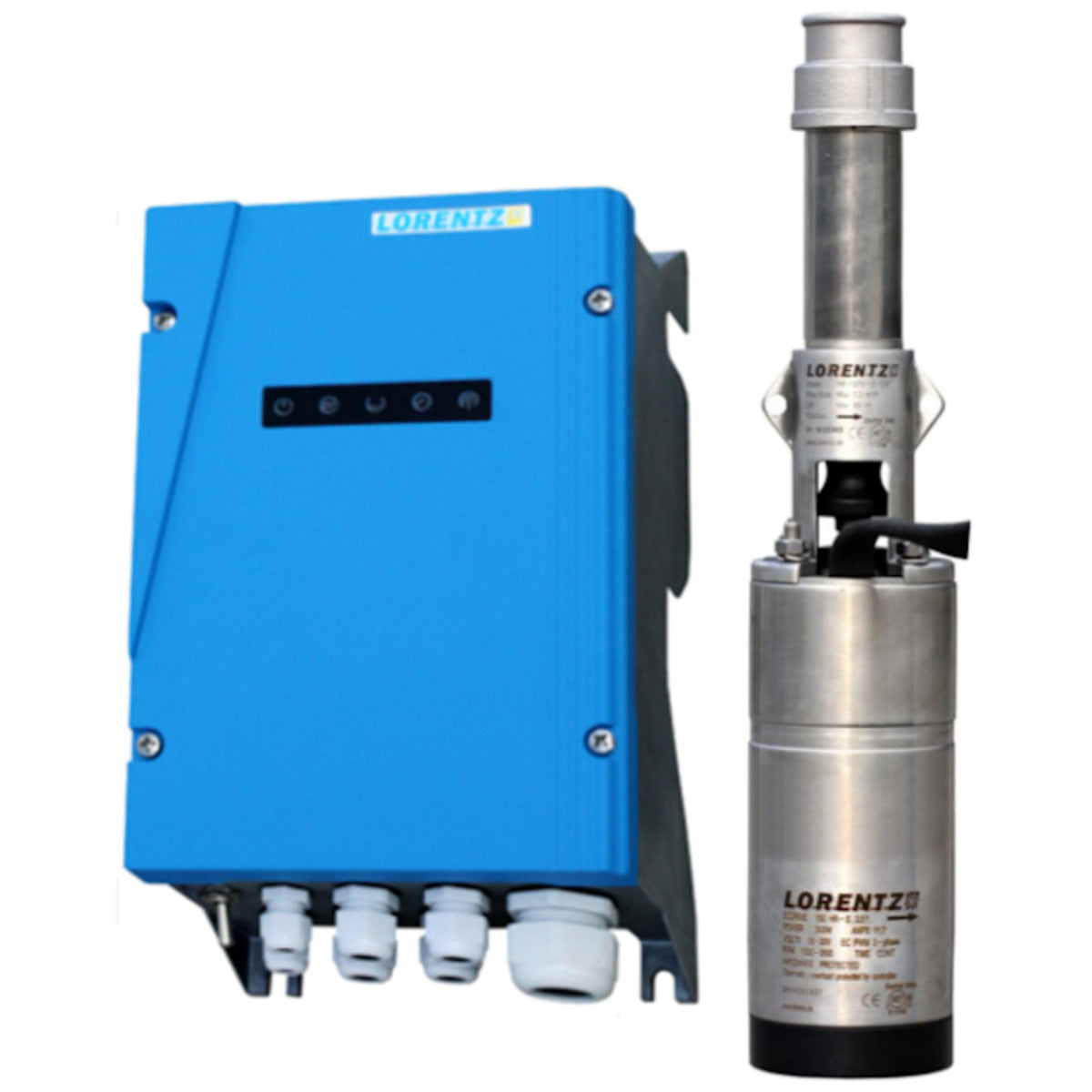

Lorentz PS2 150 AHR 07S solar borehole pump Solar Submersible Pump System for 3,5″ wells. This system is designed with efficiency and robust operation in mind. Delivering up to 150 l/hour of water, it is perfect for remote locations in need of reliable water pumping.

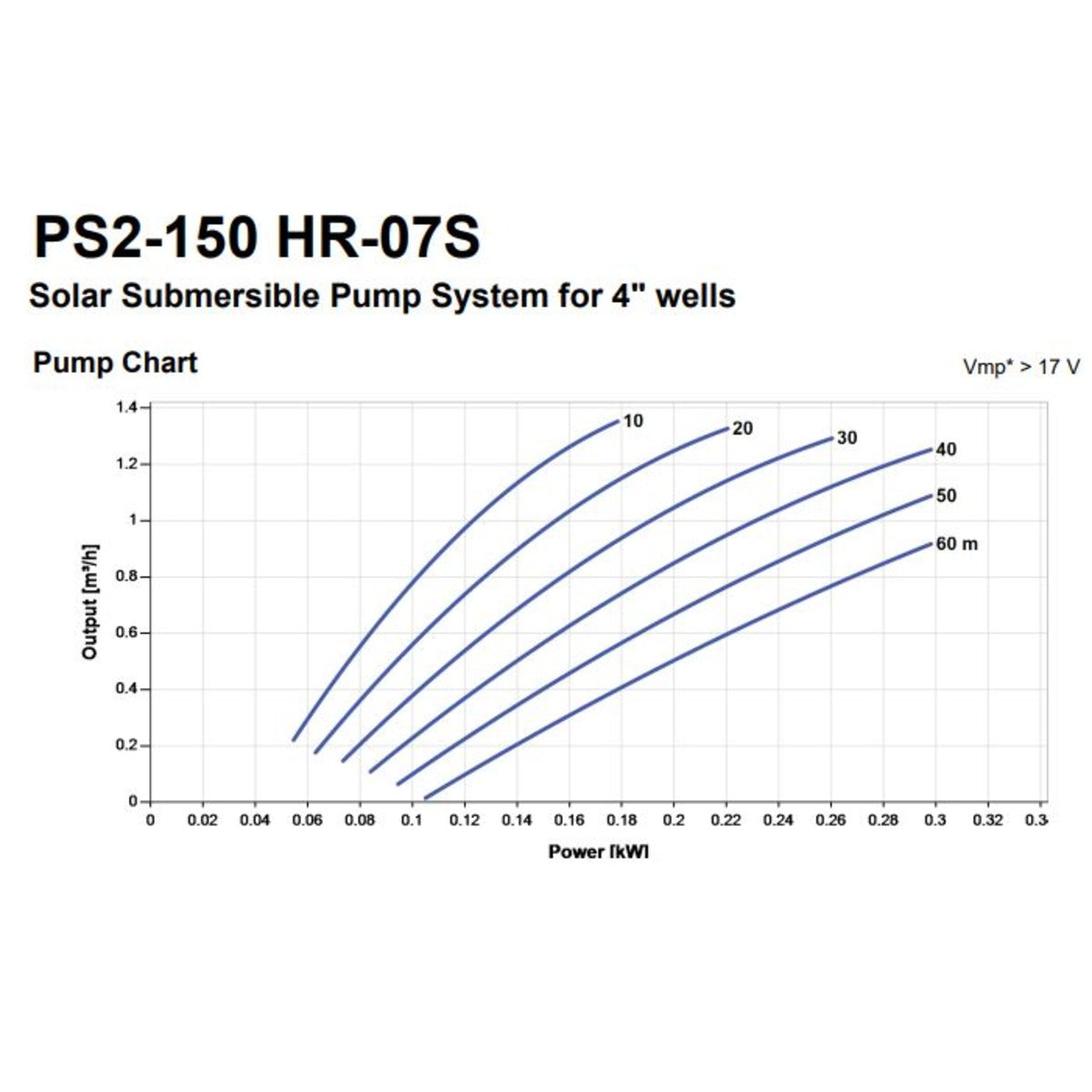

System overview
- Head max. 60m
- Flow rate max. 1.4m^3/h
- Power rating 0.30kW
Controller PS2-150
- Controlling and monitoring
- Control inputs for dry running protection, remote control etc.
- Protected against reverse polarity, overload and over-heating.
- Integrated MPPT (Maximum Power Point Tracking)
- Battery operation: Integrated low voltage disconnect
Motor ECDRIVE 150-AHR-S
- Maintenance-free brushless DC motor
- Water filled
- Premium materials, stainless steel: AISI 304
- No electronics in the motor
Pump End PE AHR-07S
- Premium materials, stainless steel: AISI 304/316
- Helical rotor pump
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
