Upgrade your home with the Megarevo 8kW 10.24kWh 51.2V Self Consumption Solar Power System. Harnessing the power of the sun, this system provides clean energy and reduces electricity bills. With 10.24kWh energy storage, you can use solar power even when the sun goes down. Make your home more sustainable and save money in the long run.

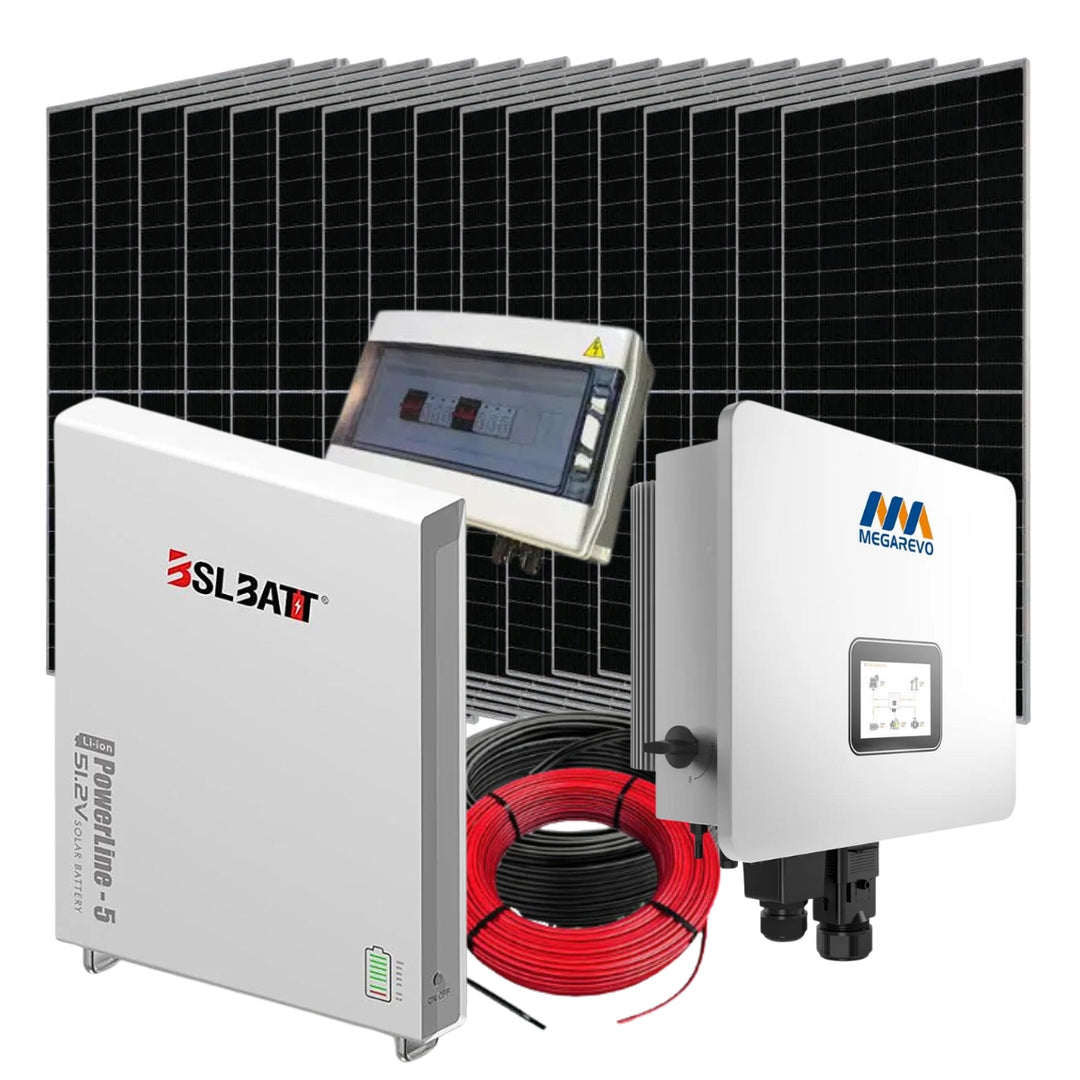

Kit Components
- 1 x Megarevo 8kW 48V Hybrid Inverter
- 2 x BSL Powerline 5 Lithium 5.12kWh 51V Battery
- 18 x Canadian Solar 555W Super High Power Mono PERC HiKU6 with MC4-EVO2
- 1 x PV on Roof and Hazard Labels Pack
- 2 x MC4-EVO2 Connector Twin Pack
- 2 x MC4 Pre-terminated Cable (2m)
- 2 x K&N 40A Single Phase AC Switch Disconnector
- 1 x Earth Neutral Bridge Box 25A AC Protection
- 1 x 600V Protection Box (2 Inputs, 2 Outputs, 16A Isolator Type I_II SPD)
- 1 x Single Core 25mm² HV DC Cable (1m - Pair)
- 50 x Sustainable 4mm² Black Double Insulated Halogen Free Solar Cable
Solar Panel Specifications
- Nominal Max. Power (Pmax): 555W
- Opt. Operating Voltage (Vmp): 41.9V
- Opt. Operating Current (Imp): 13.25 A
- Open Circuit Voltage (Voc): 49.8 V
- Short Circuit Current (Isc): 14:05 A
- Module Efficiency: 21.5%
- Operating Temperature: -40°C ~ +85°C
- Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
- Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
- Max. Series Fuse Rating: 25 A
- Application Classification: Class A
- Power Tolerance: 0 ~ + 10 W
Inverter Specifications - Megarevo 8kW 48V Hybrid Inverter
Input
- Max. Input power (kW): 12
- Start-up voltage: 100 V.
- Max. PV input voltage: 550 V.
- MPPT range/nominal: 80-500 /360.
- Max. input current of singe MPPT (A): 16 / 32.
- Max. short circuit current (A): 18.5/37
Output AC
- Rated power: 8 kW.
- Max. AC current output to grid (A): 38.3
- Nominal voltage/range(V): 230 /176~270
- Frequency (Hz): 50 /60
- Power factor: 1(0.8 leading-0.8 lagging)
- THDi: <2%
- AC grid type: L+N+PE
Battery Specifications - BSL Powerline 5 Lithium 5.12kWh 51.2V Battery
- Battery Type: Lithium-Ion
- Model: PowerLine - 5
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Charging Voltage: 58.4V
- Charge Current: 50A
- Max Discharge Current: 100 A
- Continuous Charging: 100A
- Continuous Discharge: 50A
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
