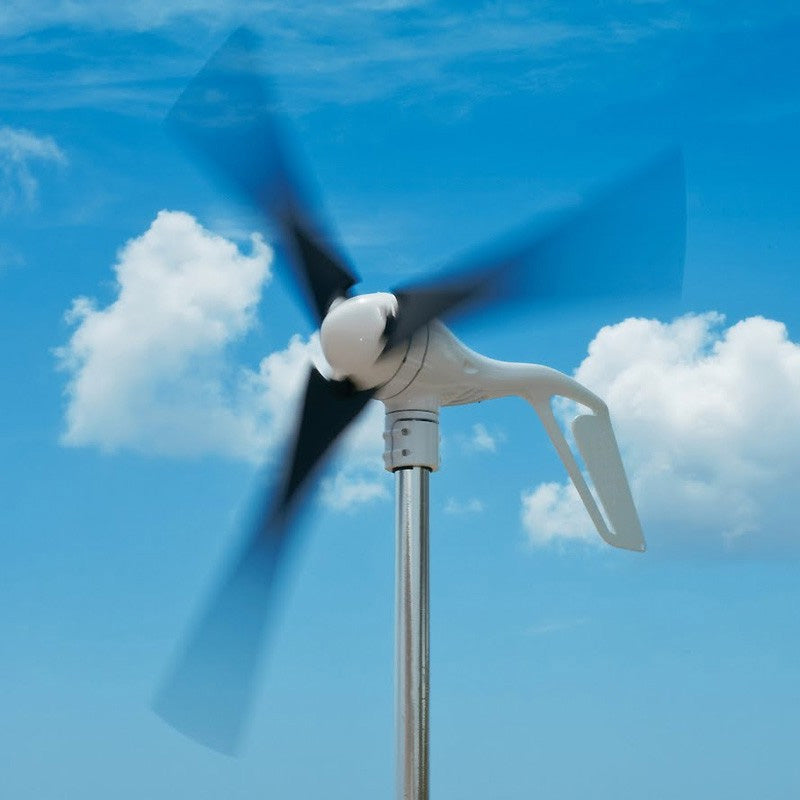

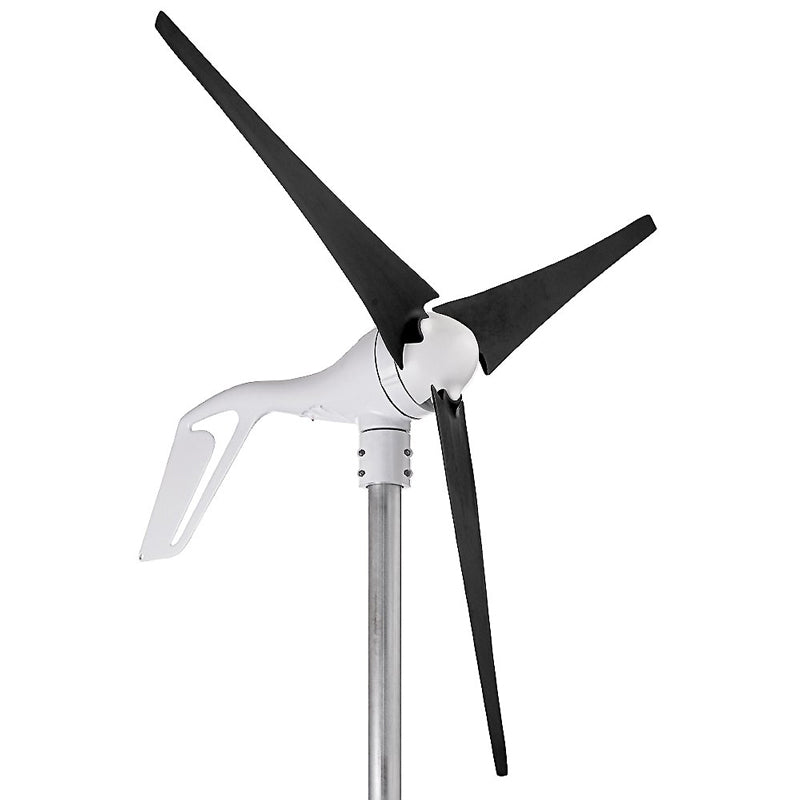

AIR Technical Specifications
- Model: AIR 30.
- Energy Approx.: 30 kWh/mo at 5.5m/s.
- Swept Area: 1.07 m2.
- Weight: 6 kg.
- Rotor Diameter: 1.17 m.
- Start Up Wind Speed: 3.6 m/s.
- Kilowatt Hours/month 30 kWh/month @ 5.4 m/s average wind speed.
- Maximum Wind Speed: 49.2m/s.
- Rated Power 400 watts @ 12.5 m/s wind speed.
- Voltage: 12, 24 and 48 VDC.
- Turbine Controller: Microprocessor-based smart controller.
- Blades: (3) Injection-moulded composite.
- Overspeed Protection: Electronic torque control.
- Mount: 38 mm schedule 40 pipe 48 mm outer diameter.
- Shipping Dimensions: 686 mm x 318 mm x 229 mm and 7.7 kg.
- Optimum Wind Speed Range: 11-15 m/s.
- Alternator: Permanent magnet brushless.
- Body: Permanent mould cast aluminium.
- Certifications: CSA, CE.
Voltage Regulation Set Point (factory setting)
- 12 Volt Systems: 14.1 Volts.
- 24 Volt Systems: 28.2 Volts.
- 48 Volt Systems: 56.4 Volts.
Regulator Adjustment Range
- 12 Volt Systems: 13.6 to 17.0 Volts (approximately).
- 24 Volt Systems: 27.2 to 34.0 Volts (approximately).
- 48 Volt Systems: 54.4 to 68.0 Volts (approximately).
Recommended Fuse Size
- 12 Volt Systems: 40 amps (slow blow).
- 24 Volt Systems: 20 amps (slow blow).
- 48 Volt Systems: 10 amps (slow blow).
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
