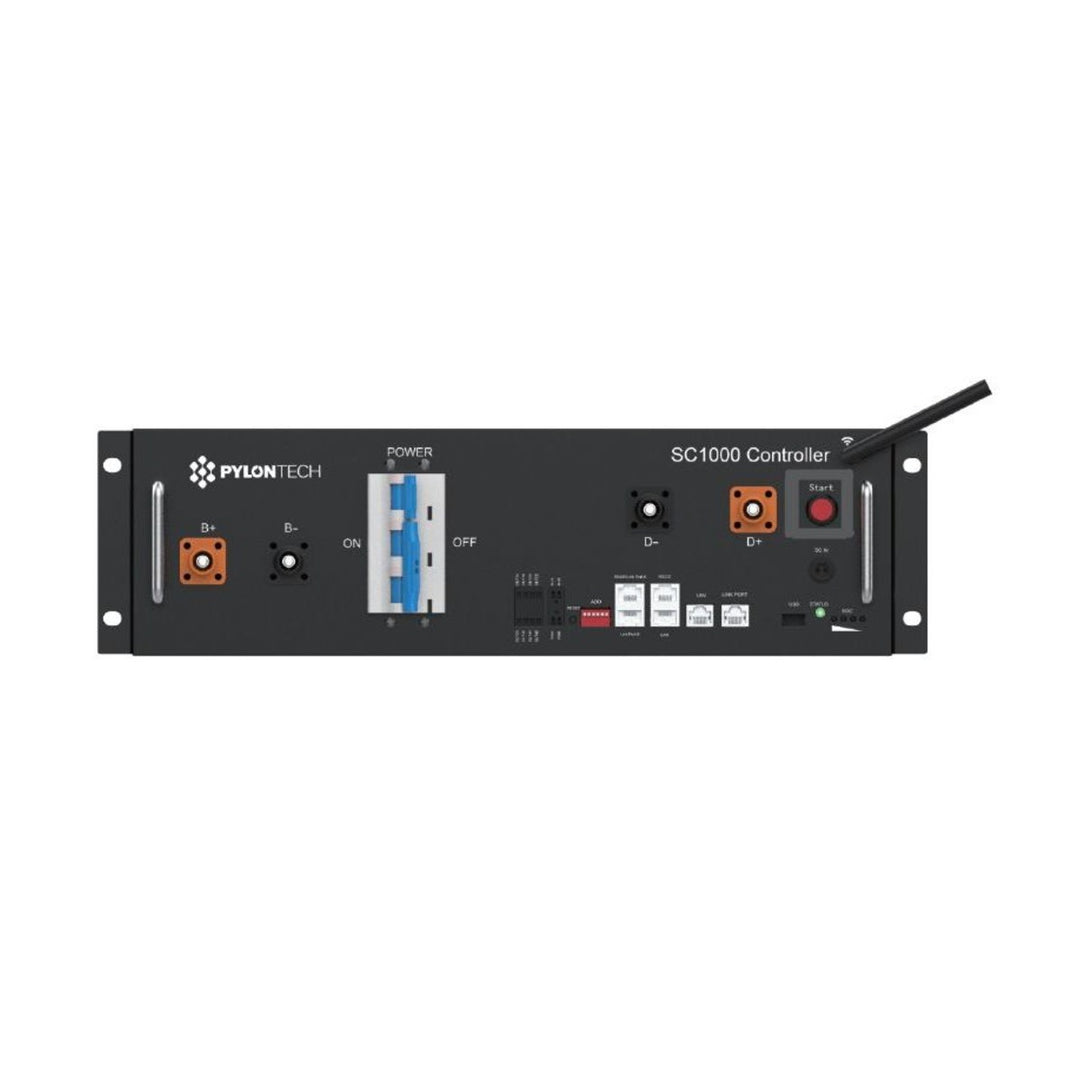

Product Description
- Modular design for rack mount system deployment.
- Maximum voltage of 1000Vdc.
Product Improvements
- Integrated WIFI module for remote monitoring.
- Allows paralleling of multiple battery stacks without the need of the MBMS.
- USB port for firmware updates and battery data downloading.
- All accessories included in the package.
Specifications
- Product Type: SC1OOΠ1DOS- V2
- Related Product: H48050/H48074
- Controller Working Voltage 200-1000Vdc
- System Operation Voltage(Vdc) 200-1000
- Charge Current(Mr)(A) 80
- Discharge Voltage(Vdc) 200-1000
- Discharge Current(Max)(A) 80
- Self-consumption Power(W}
- Dimension(W•D•H,mm) 442 390• 132
- Communication Modbus RTU\CAN\LAN
- Protection Class IP20
- Weight(kg) 9
- Operation Life(Years) 15+
- Operation Temperature(°C) -2o-s5
- Storage Temperature(°C) -40-so
- Product Certificate TUV, CE
This BMS unit is not compatible with the MBMS (PYL-PC-MBMS1000) and it does not require the MBMS to parallel multiple battery stacks.
This product must be installed by a qualified electrician/technician.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
