Product Description

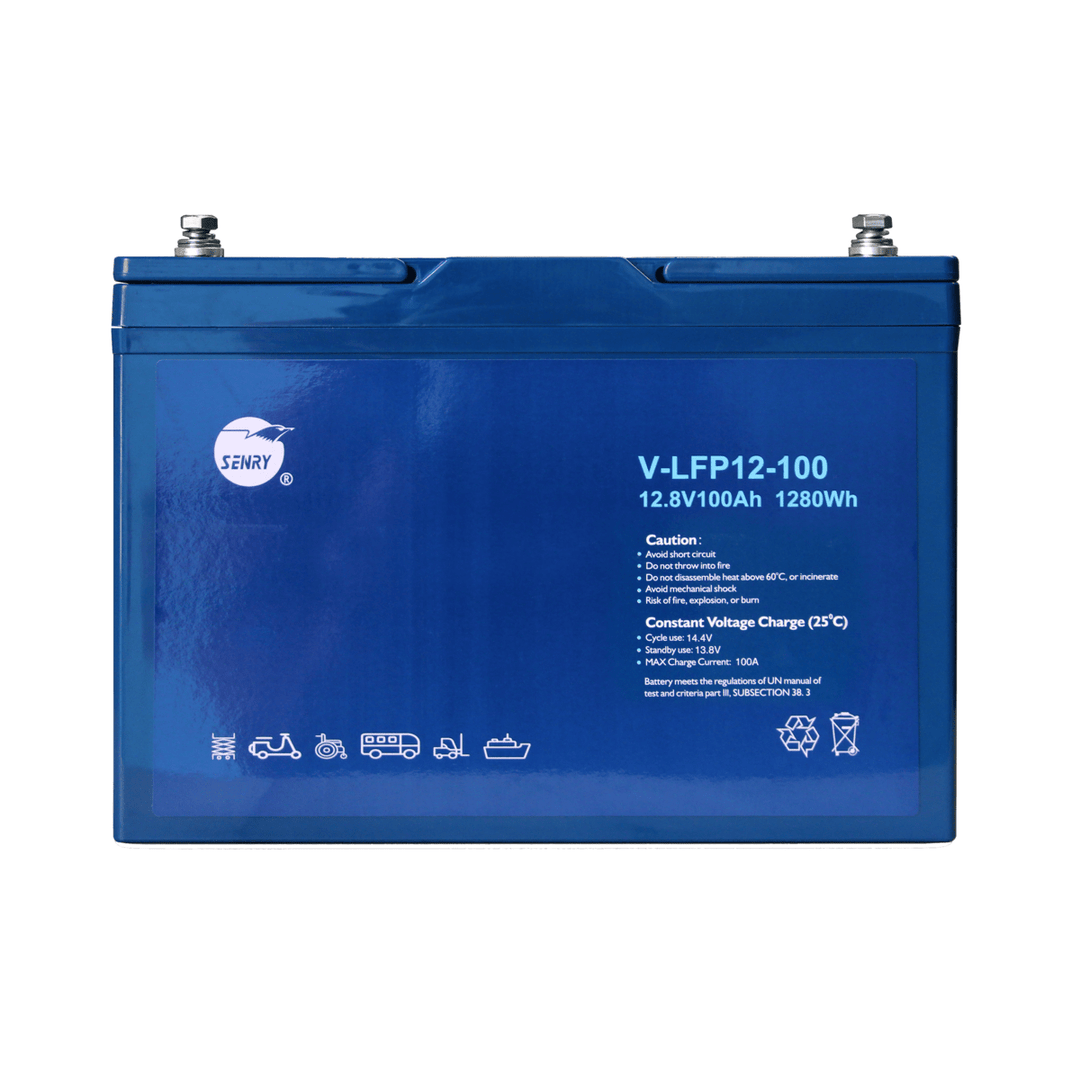

The RCT 100Ah Lithium Iron Phosphate Battery boasts cost-effective and long-lasting performance, guaranteeing safety and fast charging. As a drop-in replacement, it is a reliable choice for a variety of applications.
Mechanical Characteristics
- Nominal Voltage: 12.8V
- Nominal Capacity: 100Ah
- Energy: 1280Wh
- IR: ≤ 12mΩ @ 100% SOC
- Efficiency:≥ 99.5 %
- Maximum Batteries in Series and Parallel: 2 x 4
- Case Material ABS
- Length (mm) 306
- Width (mm) 169
- Height (mm) 215
- Weight (kg) 10.3
- Terminal Type M8
- IP Grade /
- BCI Group NO. 27
- Cell Type-Chemistry Prismatic LiFePO4
Charge & Discharge Characteristics
- Voltage Window 10.8-14.6V
- Max. Continuous Charge Current 100A
- Max. Continuous Discharge Current 100A
- Peak Discharge Current 200A (15s ± 2s）
- Recommended charge current/A 50A
- Recommended discharge current/A 50A
- Charge current cut-off/A 3A
Attention
- When the battery needs to be used in parallel or in series, each battery shall be fully charged according to the standard charging method before parallel or in series.
- Duration of maximum constant current is thermally limited by internal electronics and depends on ambient temperature.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
