Technical Specifications

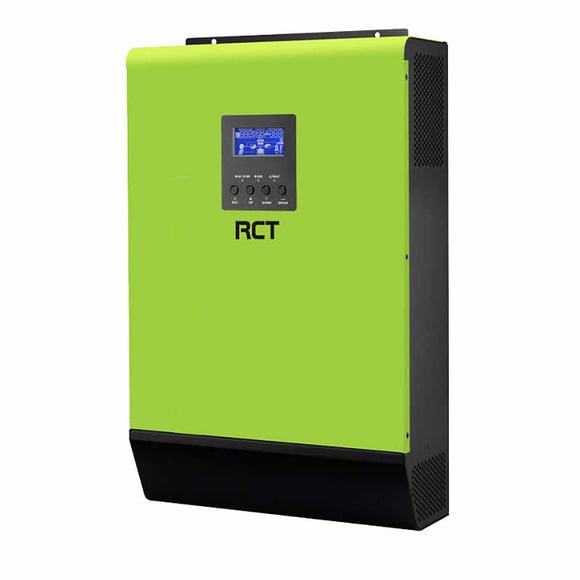

• Model: 30KW

• Rated output power 3000W

PV Input (DC)

• PV INPUT (DC) Max. PV Power 40000W

• Nominal DC Voltage 720Vdc

• Max. PV Array Open Circuit Voltage 1000 VDC

• Working voltage range 350 ~ 1000 VDC

• MPPT Range @ Operating Voltage 350 VDC~900 VDC

• Full power MPPT range 500 ~ 900Vdc (10Vdc)

• Max. PV Array Short Circuit Current PV1:26A PV2:26A PV3:26A

• Number of MPP Tracker 3

Grid-Tie Operation

Grid Output (AC)

• Nominal Output Voltage 220/230/240 VAC

• Max feeding power 30000W

• Feed-in Grid Voltage Range 184 - 265 VAC per phase

• Feed-in Grid Frequency Range 47.5 ~ 51.5 Hz or 59.3~ 60.5Hz

• Nominal Output Current 43.5 A per phase

• Power Factor Range >0.99

• Maximum Conversion Efficiency (DC/AC) 96.5%

Off-Grid, Hybrid Operation

Grid Input

• Acceptable Input Voltage Range

• 170~290 VAC per phase Frequency

• Range 50 Hz/60 Hz (Auto sensing) Max. AC Input current

• 50Amp per phase

Generator Input

• Maximum input power 3000W

• Acceptable input voltage range 170~290 VAC per phase

• Acceptable Input Frequency Range 40.0 ~ 60.0 Hz or 50.0.~ 70.0Hz

• Maximum AC Input Current 50Amp per phase

Battery Mode Output (AC)

• Nominal Output Voltage:220/230/240 VAC

• Output Waveform Pure Sine Wave

• Efficiency (DC to AC): 96%.

Battery & Charger

• Nominal DC Voltage: 614.4 VDC

• Max. Charging Current: Default 50A

Physical

• Dimension (D x W x H) (mm): 255 x 660 x 750.

• Net weight (kgs): 73.

Interface

• Communication Port: USB, RS232, RS 485, WiFi

• External Safety Box(Optional) and parallel-able.

Environment

• Humidity 0 ~ 95% RH (No condensing)

• Operating Temperature -25°C to 50°C

**These figures may vary depending on different AC voltage and country requirements. Power derating 1% every 100m when altitude is over 1000m. Product specifications are subject to change without further notice.
