Product Description

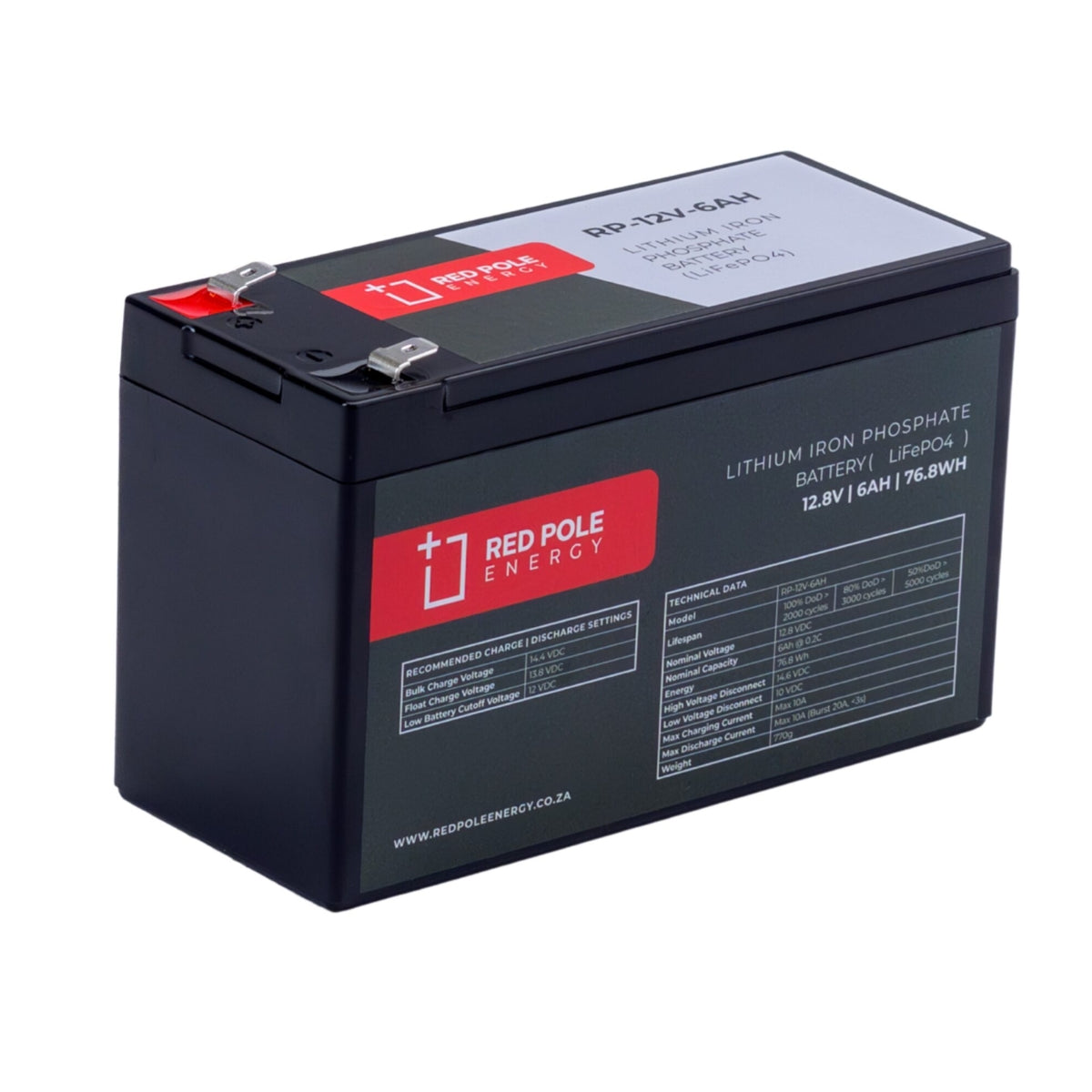

The 12V 6Ah 75Wh Lithium Battery is ideal for use as a backup battery for gate motors, alarm systems, access control gates, electric fences, and CCTV systems. Featuring an integrated battery management system (BMS), this battery is highly durable and built to last, with a lifespan of 2000 cycles. Additionally, the sealed plastic enclosure is water and dust resistant (IP55), making it perfect for use in any environment. This battery is built to provide reliable power for years to come.

Features and Benefits

• Increased life span (10 x longer than lead acid). Loadshedding does not destroy these batteries and you can expect a 5+ year life span from them.
• Direct replacement for 12V 7Ah Lead Acid. This battery is exactly the same size and dimensions as standard gate and alarm batteries. Compatible with existing chargers and machines.
• Ideal for use in:
• Gate motors backup battery like ET Nice and Centurion
• Home and business Alarm system battery backup
• Access Control Gates backup battery
• Electric Fences backup battery
• CCTV backup battery

12v 7Ah sealed lead-acid (SLA) batteries are typically installed in small electronics that require backup power, like alarm systems and gate motors, but they are not ideal for regularly handling high current, and being discharged often or discharged too low. Thus when they are frequently drained (like during load shedding), they are easily damaged, and you will find that you need to replace them quite often.

This lithium iron phosphate battery on the other hand has a high cycle rate (2000 cycles, versus 200 to 400 cycles of an SLA battery), it can handle higher current, and the internal battery management system protects the battery from overcharging or discharging too low.

That simply means this lithium battery replacement should last 10 times longer than the typical SLA battery it is replacing.

Other advantages are that there are no fumes, the self-discharge rate is less than 3.5% per month (SLA will drain itself dead in 12 months), the batteries weight 700g vs the 2kg average weight of a 12v 7Ah SLA battery, and they can be charged and discharged faster (at higher current).

This battery can directly replace a sealed lead acid 12v 7Ah battery (same size, same charging voltages) and is an upgrade in terms of how many cycles the battery can do (how many time can be used before needs replacing).

Please note that while this is technically a 12v 6Ah battery, it performs like a 12v 7Ah lead acid battery in most applications since it is able to consistently deliver its full available capacity, whereas the lead acid 12v 7Ah battery will degrade rapidly in capacity as it ages, or when under high load.

TIP : To calculate how long this battery can last in your application, lookup the load power of the device it will be powering in Watts, then divide 75W with that number. Example, a 12v alarm system drawing 1A load, has a 12W (12v x 1A = 12W) load, so it can run from this battery for 6hrs 15min (75/12 = 6.25).

NOTE : If you require extra capacity and want to upgrade to a long life lithium battery, then also see our 12V 12Ah Alarm / Gate Lithium Battery (12V 7Ah High Capacity Upgrade) product listing.

UPS NOTE : Only use this battery inside a UPS if the UPS low voltage disconnect can be set to 12v, or if you are sure the UPS will last longer than loadshedding. Otherwise if the UPS is run until it stops working (battery voltage too low and BMS low voltage protection triggered) then the UPS will not turn on when the power comes on. The battery BMS needs a charge to wake up and UPS won’t turn on and charge it without battery being detected.

Product Features:

• Ultra safe lithium iron phosphate (LifePO4) cells
• Integrated battery management system (BMS)
• Light weight and compact
• Water and dust resistant (IP55)
• Highly durable sealed plastic enclosure
• Drop-in lead acid replacement (gate motors, alarm systems, small electronics)
• Sealed and non-liquid (No fumes, no leaking, mount in any position)

Technical Specifications:

• Lithium Iron Phosphate (LifePO4) Battery Type
• 75 Wh Usable capacity
• 6Ah Nominal capacity @ 0.2C
• 12.8 VDC Nominal Voltage
• Operating Voltage Range : 11.6 VDC to 14.4VDC
• Supports series and parallel connections: Max 4 in parallel, 2 in series (24V Max)
• Operating Temp Range : Charge: 0°C to 45°C | Discharge: -20°C to 60°C
• Protection : Over-voltage | Under-voltage | Short circuit | Dust and water resistant
• Lifespan : 2000 cycles @ 0.2C charging, or discharging until 70% capacity

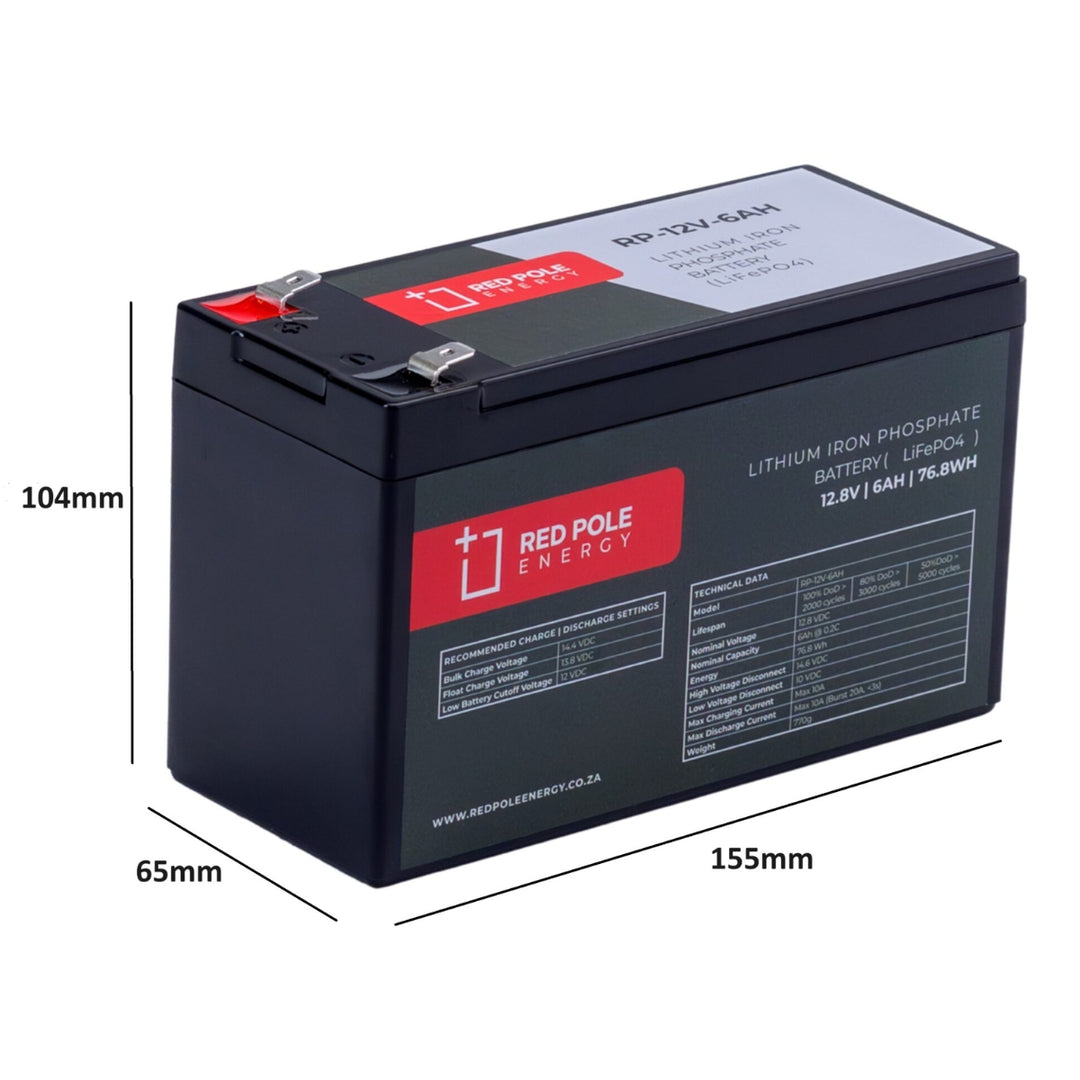

• Dimensions : 152 x 65 x 97 mm (W x D x H)(H=104mm including terminals)
• Terminal : F2
• Weight : 770g
• Warranty: 3 Year

Charging/Discharging

• Bulk Charging Voltage : 14.4 VDC
• Float Charging Voltage : 13.8 VDC
• Charge Current : Max 10A
• Discharge Current : Max 10A (Burst 12A, <3s)
• Discharge Voltage Cut-out : 10 VDC
• Over-voltage Cut-out : 14.6 VDC
• Discharge Current : 0.6A for 10hrs | 1.2A for 5hrs | 6A for 1hr | Max 12A burst
• Self-discharge rate : < 3.5% per month

What’s in the box

• 1 x 12v 6Ah 75Wh Lithium Battery
• 2 x F2 terminal with 15cm wire
• 2 x F2 to F1 connector adapter
