Product Description:

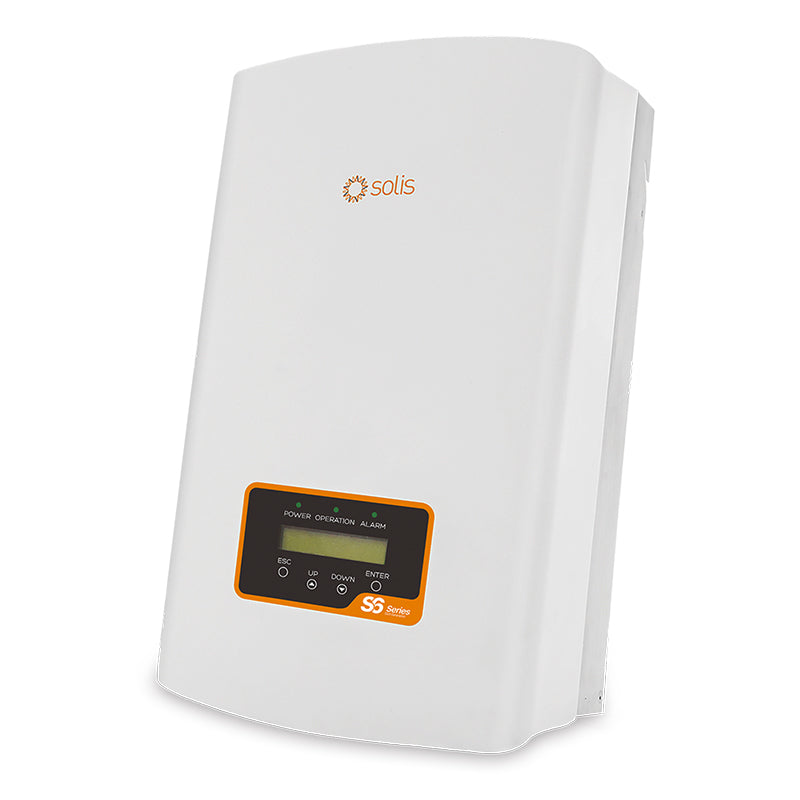

The Solis S6-GR1P(2.5-6)K series inverter is designed for residential PV plants with a 14A maximum input current per string and is compatible with high-efficiency modules and bi-facial modules. Its compact and lightweight design, bring easy installation and protection level increased to IP66. The Integrated AFCI function can proactively reduce the risk of fire. Please download full specifications sheet here.

Product Features

• Max PV Power of 5.4kW.
• Maximum string input current 14A.
• DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
• Super high frequency switching technology with Max. Efficiency over 97.3% and European efficiency over 96.6%.
• Wide input voltage range - Ultra low start-up voltage of 120V and max PV input voltage of 600V.
• Dual MPPT design with precise MPPT algorithm.
• Export Limitation built in - Requires CT clamp (sold separately).
• Integrated AFCI (DC arc-fault circuit protection).
• Integrated DC switch for emergency shutdown of PV power or safe PV maintenance.
• Rated IP66.
• 5-year standard warranty, extendable up to 10-years.
• SA: NRS 097 certified and COCT Certified

Specifications Input DC

• Recommended max. PV power: 5.4 kW.
• Max. input voltage: 600 V.
• Rated voltage: 330 V.
• Start-up voltage: 120 V.
• MPPT voltage range: 90-520 V.
• Max. input current: 14 A / 14 A.
• Max. Short Circuit current: 22 A / 22 A.
• MPPT number: 2.
• Max. input strings number: 2.

Output AC

• Rated output power: 3.6 kW.
• Max. apparent output power: 4 kVA.
• Max. output power: 4 kW.
• Rated grid voltage: 1/N/PE, 220 V / 230 V.
• Rated grid frequency: 50 Hz.
• Rated grid output current: 16.0 A / 15.7 A.
• Max. output current:16.0 A.
• Power Factor: >0.99 (0.8 leading - 0.8 lagging).
• THDi: <3%.

Efficiency

• Max. efficiency: 97.3%.
• EU efficiency: 96.6%.

Protection

• DC reverse-polarity protection: Yes.
• Short circuit protection: Yes.
• Output over current protection: Yes.
• Surge protection: Yes.
• Grid monitoring: Yes.
• Anti-islanding protection: Yes.
• Temperature protection: Yes.
• Integrated AFCI (DC arc-fault circuit protection):Yes (Activation required).
• Integrated DC switch: Yes.

General Data

• Dimensions (W*H*D): 310*543*160 mm.
• Weight: 11.2 kg.
• Topology: Transformerless.
• Self-consumption (night): <1 W.
• Operating ambient temperature range: -25 ~ +60°C.
• Relative humidity: 0-100%.
• Ingress protection: Ip66.
• Cooling concept: Natural convection.
• Max. operation altitude: 4000 m.
• Safety/EMC standard: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3.
• Grid connection standard: G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA.
