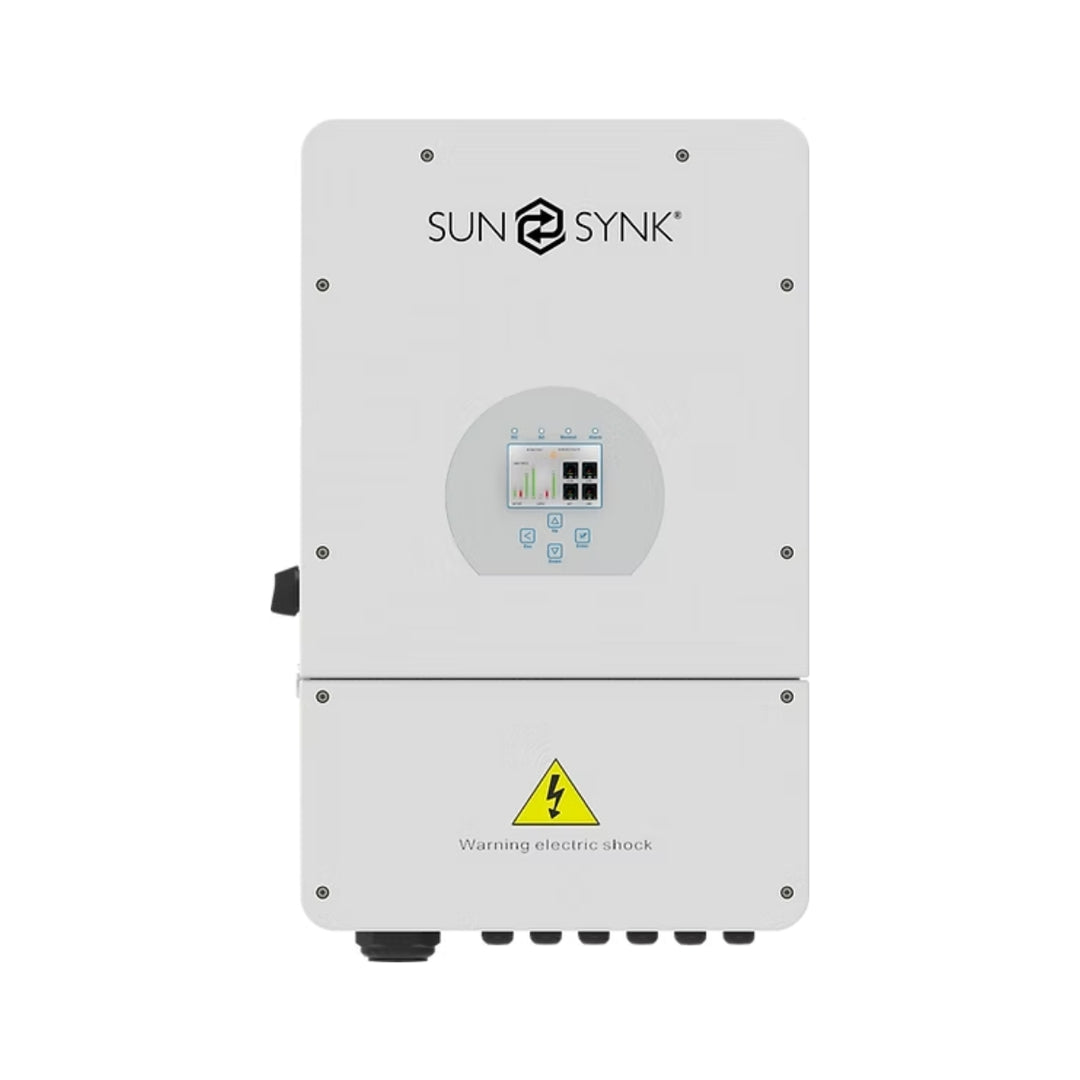

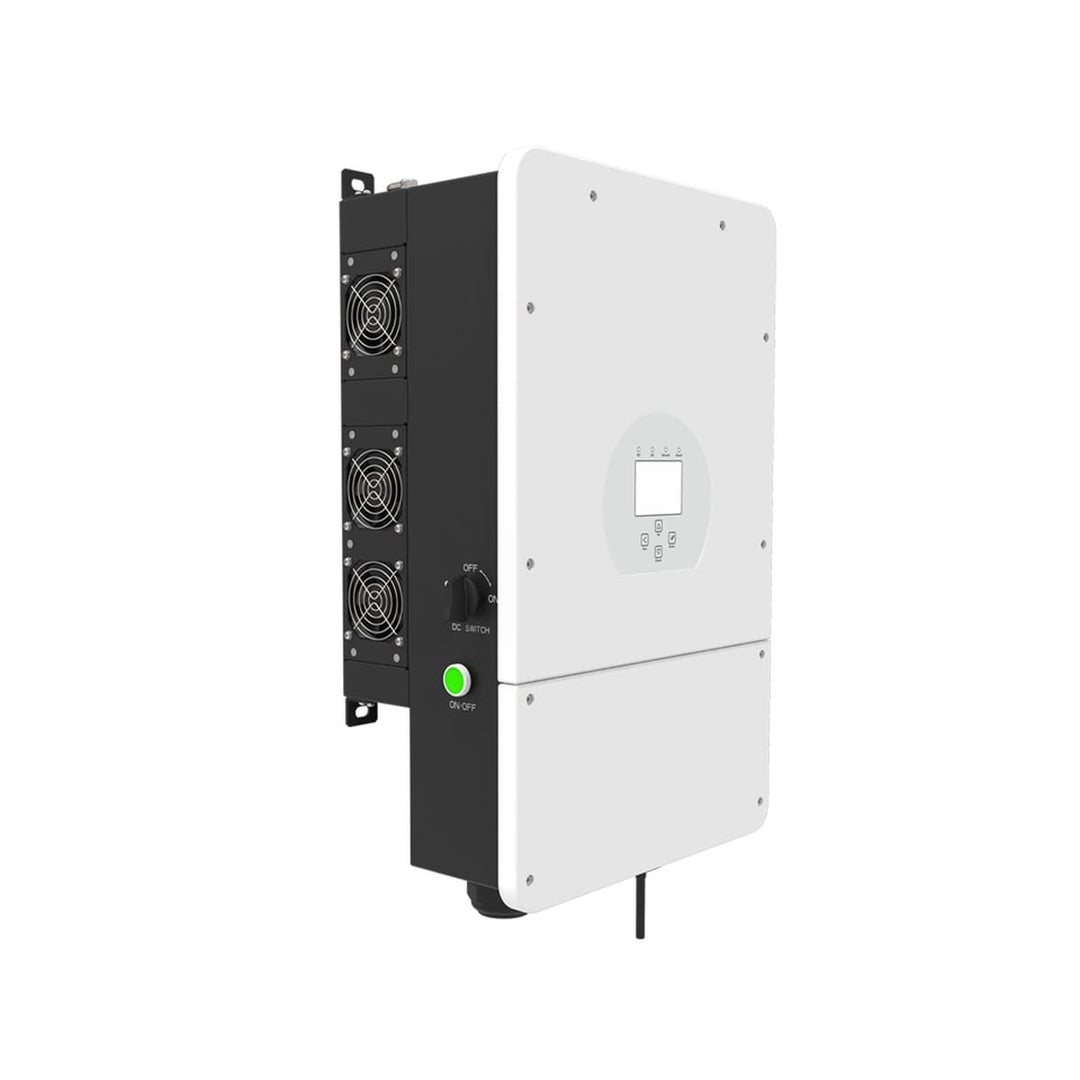

Upgrade your solar system with the Sunsynk 8kW 48V Single Phase Hybrid Inverter. Enjoy reliable power and increased efficiency with wifi connectivity. Connect to your solar system remotely and monitor its performance with ease. Make the most out of your solar energy with this professional-grade inverter.
Features:
- Dual MPPT design.
- Compatible with most Li-ion and lead-acid batteries.
- Zero export function.
- Parallels up to 16 x inverters on a single phase.
- Essential and Non-Essential Loads outputs.
- Comes with the Wi-Fi logger and CT as standard.
Product Specification:
| Category | Value |
|---|---|
| Model | SUNSYNK-8K-SG01LP1 |
| Battery Input Data | |
| Battery Type | Lead-acid or Li-ion |
| Battery Voltage Range | 48Vd.c (40Vd.c ~ 60Vd.c) |
| Max. Charging/Discharging Current | 190A.d.c (max.) |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Yes |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power | 10400W |
| PV Input Voltage | 370V (125V~500V) |
| MPPT Range | 150~425V |
| Start-up Voltage | 125V |
| PV Input Current | 26A.d.c + 26A.d.c |
| Max PV Isc | 44A.d.c + 44A.d.c |
| No. of MPPT Trackers | 2 |
| No. of Strings Per MPPT Tracker | 2+2 |
| AC Output Data | |
| Rated AC Output and UPS Power | 8000W |
| Max. AC Output Power | 8800W |
| Peak Power (off grid) | 2 times of rated power, 10s |
| AC Output Rated Current | 34.8A |
| Max. AC Current | 38.3A |
| Max. Continuous AC Passthrough | 50A |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50 / 60Hz; 208Vac (2 / 3 Phase), 220/230Vac (Single Phase) |
| Grid Type | 2 / 3 Phase; Single Phase |
| Total Harmonic Distortion (THD) | <3% (of nominal power) |
| DC Current Injection | <0.5% In |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | >99% |
| Feature | Details |
|---|---|
| Integrated | PV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection |
| Surge Protection | DC Type II / AC Type II |
| Over Voltage Category | DC Type II / AC Type III |
| Category | Details |
|---|---|
| Grid Regulation | EN 50549-1, AS-NZS 4777.2, NRS 097-2-1; Additional connections available upon request |
| EMC/Safety Regulation | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Parameter | Value |
|---|---|
| Operating Temperature Range | -40~60°C, >45°C Derating |
| Cooling | Smart cooling |
| Noise | <30 dB |
| Communication with BMS | RS485; CAN |
| Net Weight | 32kg |
| Gross Weight | 38.5kg |
| Cabinet Size | 420W×670H×233D mm (excluding connectors and brackets) |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
