Product Description

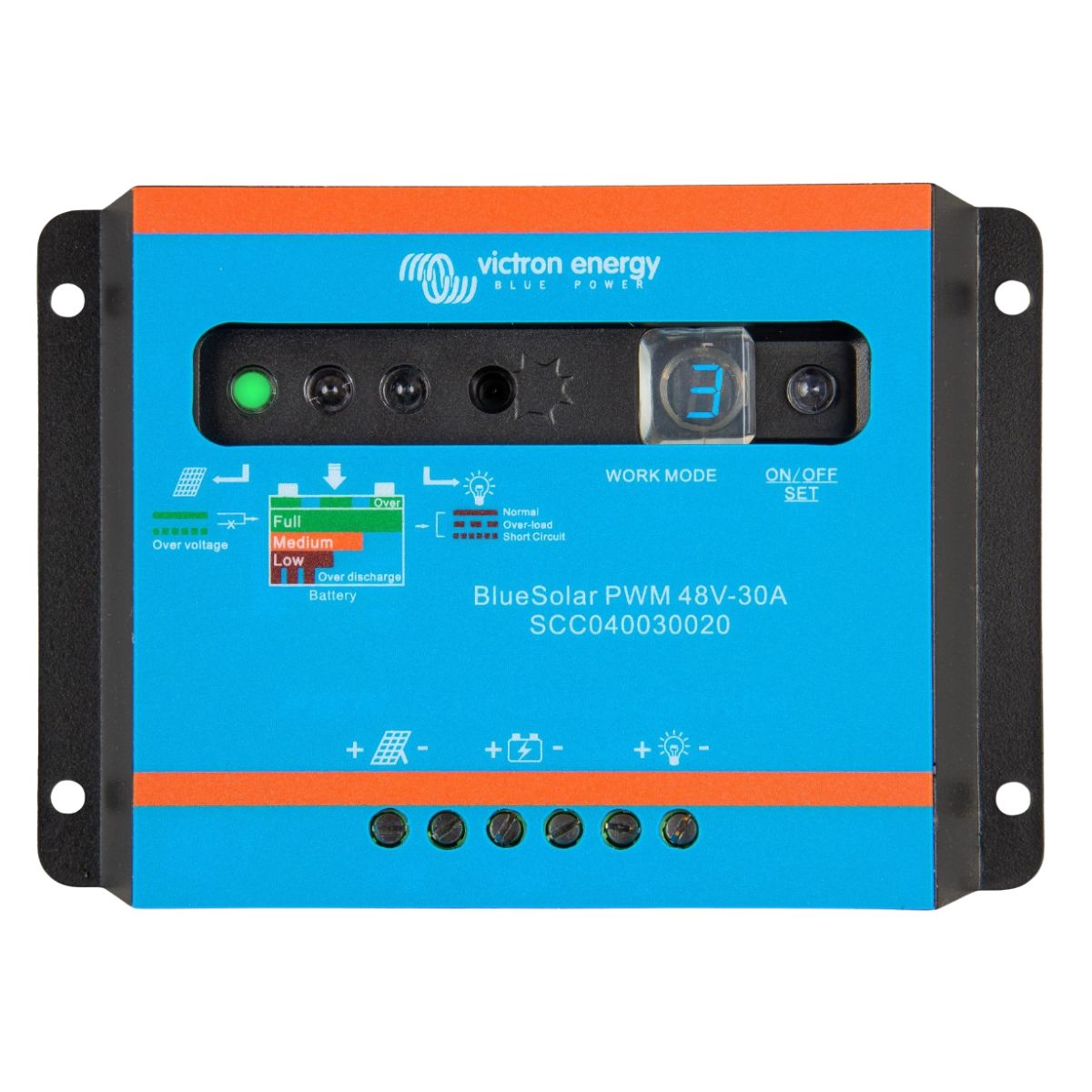

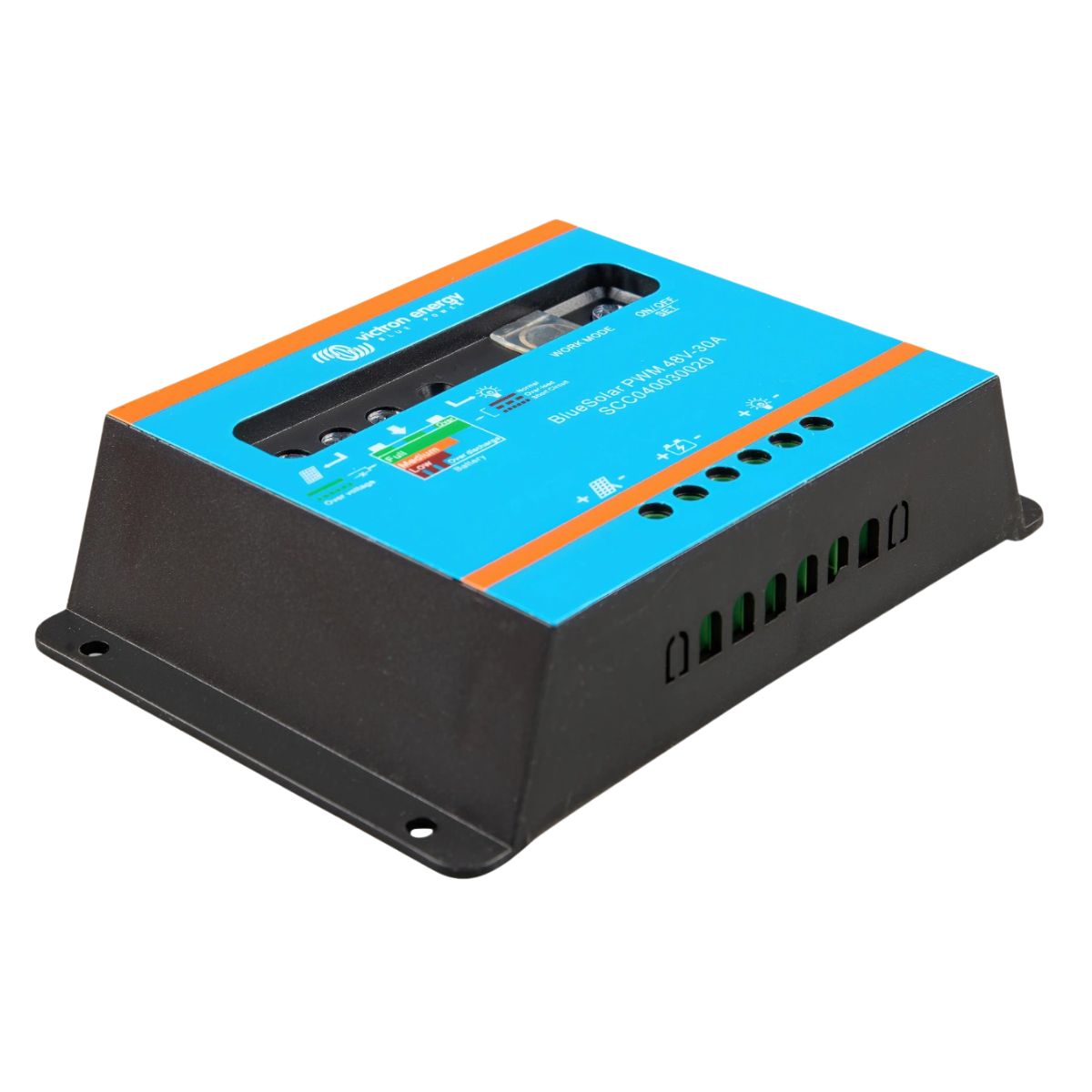

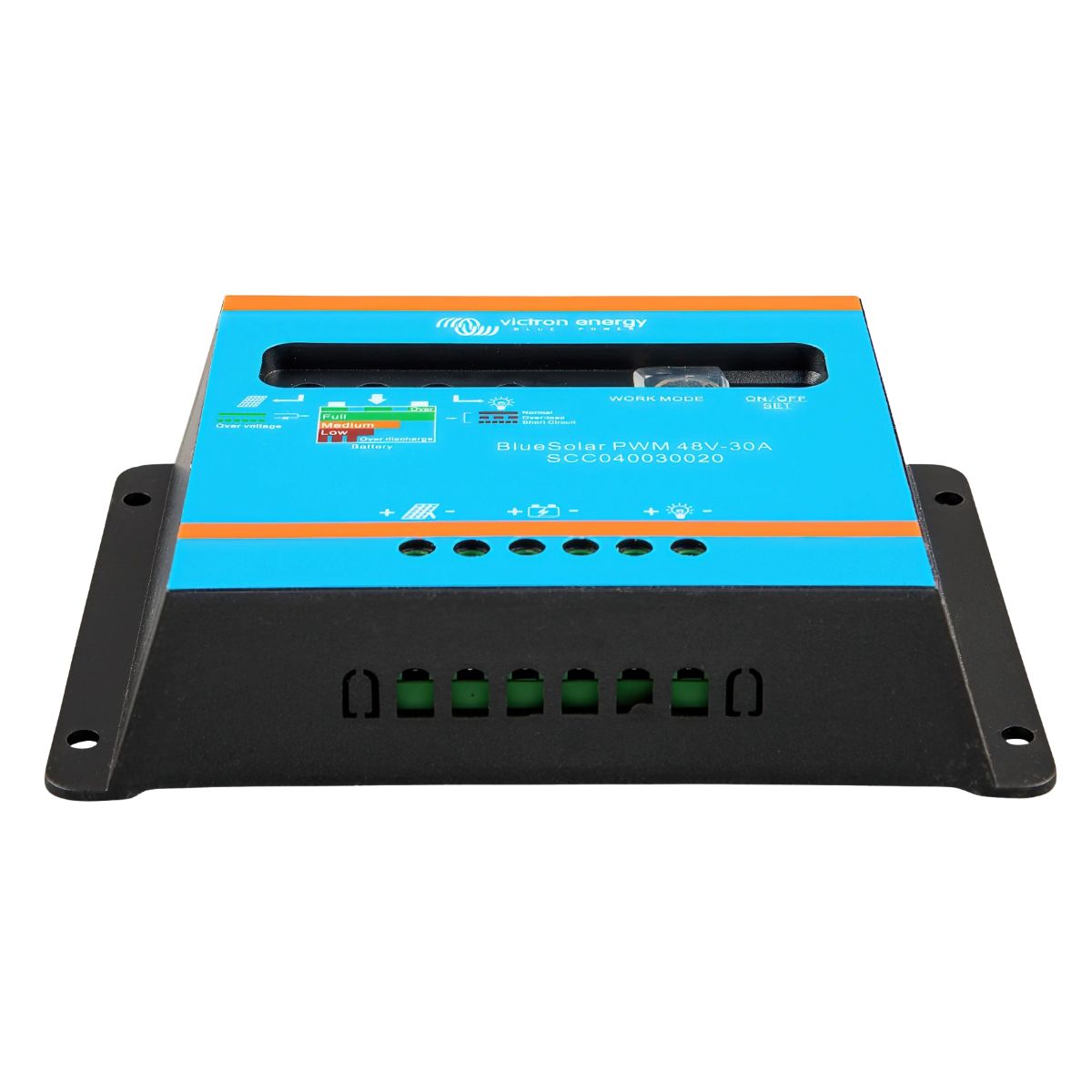

Victron Blue Solar Light 48V-30A PWM Charge Controller This charge controller is designed with a 48V-30A PWM to regulate the charging of your solar panels. It's a powerful tool that will help optimize your solar energy system's performance, ensuring a consistent and efficient energy supply. With this controller, you can easily monitor your system's voltage, current, and temperature, all while protecting your batteries from overcharging and preventing damage to your solar panels. Make the most out of your solar energy investment with this advanced and reliable controller.

Features

• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Seven segment display for quick and easy setting of the load output functionality, including timer
• setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery

Specifications

• Battery Voltage: 48V
• Rated charge current: 30A
• Automatic load disconnect: Yes
• Maximum solar voltage: 100 V
• Self-consumption: < 10 mA
• Load output: Manual control + low voltage disconnect
• Protection: Output short circuit, Over temperature
• Overload protection: Short circuit: immediate shut down
• Grounding: Common positive
• Operating temp. range: -20 to +50°C (full load)
• Humidity (non-condensing): Max 95%
• Bulk charge: 58,0V (1)
• Charge voltage 'absorption': 56,8V
• Charge voltage 'float': 55,2V
• Low voltage load disconnect: 44,8V
• Low voltage load reconnect: 50,4V (manual), 52,4V (automatic)
• Protection class: IP20
• Terminal size: 6 mm² / AWG10
• Weight: 0,17 kg
• Dimensions (h x w x d): 95 x 140 x 33,5 mm
• Safety: IEC 62109-1
• EMC: EN 61000-6-1, EN 61000-6-3
