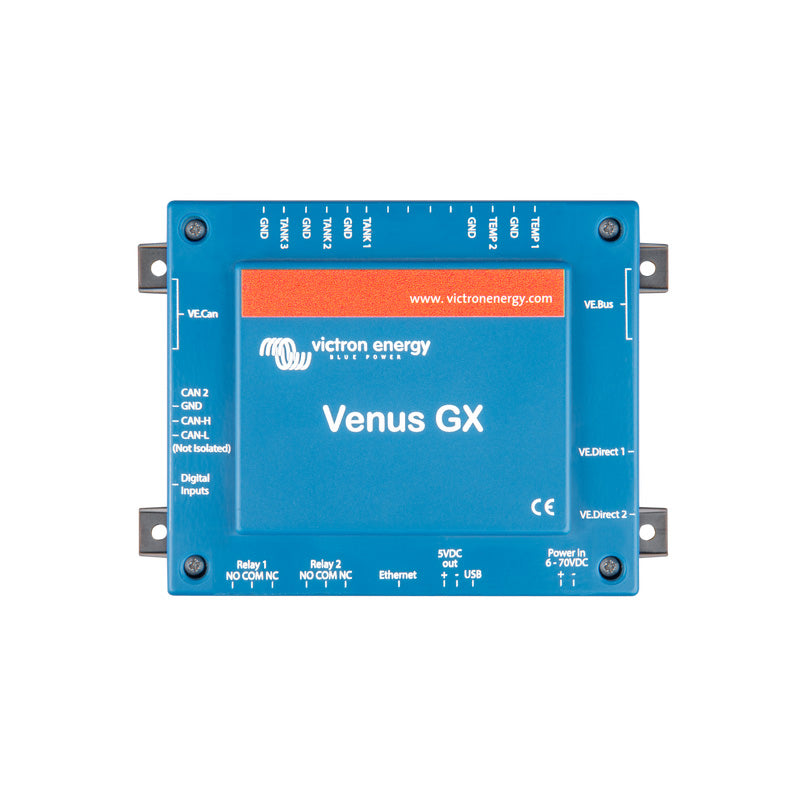

The Venus GX provides intuitive control and monitoring for all Victron power systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more.

Features

• VRM Online Portal.
• Remote Console on VRM.
• Automatic genset start/stop.
• The heart of ESS – Energy Storage.
• Data logging.

Supported products

• Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection).
• EasySolar 1600VA.
• BlueSolar MPPT Solar Chargers with a VE.Direct port.
• BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. When multiple BlueSolar MPPTs with VE.Can are used in parallel, the all information is combined as one.
• BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct Cable for this.
• When more than two VE.Direct products must be connected, USB can be used.

Technical Specifications
General

• Power supply voltage range: 8 – 70V DC
• Current Draw: 210 mA @ 12V, 110 mA @ 24V, 60 mA @ 48V.
• Communication ports
• VE.Direct: 2 separate VE.Direct ports – isolated.
• VE.Can: 2 paralleled RJ45 sockets – isolated.
• CAN 2nd: CAN interface – non isolated.
• VE.Bus: 2 paralleled RJ45 sockets – isolated.
• USB 2: USB Host ports – not isolated.
• Ethernet: 10/100/1000MB RJ45 socket – isolated except shield
• WiFi Access Point: Use to connect to Remote Console
• WiFi Client: Connect the Venus GX to an existing WiFi network

IO

• Potential free contact: NO/COM/NC – 6 A 250 VAC/30 VDC.
• Tank level inputs: 3 x Configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm).
• Temperature level inputs: 2 x Requires ASS000001000.

Third Party Interfacing

• Modbus-TCP: Use Modbus-TCP to monitor and control all products connected to the Venus GX.
• JSON Use the VRM JSON API to retrieve data from the VRM Portal.

Other

• Outer dimensions (h x w x d): 45mm x 143mm x 96mm.
• Operating temperature range: -20 to +50°C.
