Equipment and function

Manual power adjustment with 3 speed stages.

• Pumps with 1~ motor: -
• P2 up to 90 W: internal protection against unacceptably high winding temperatures.
• P2 = 180 W: Full motor protection with thermal winding contacts in conjunction with tripping unit.
• Pumps with 3~ motor: - P2 up to 90 W: internal protection against unacceptably high winding temperatures.
• P2 ≥ 180 W: Full motor protection with integrated trip electronics.
• Fault signal light.
• Contact for collective fault signal.
• Direction of rotation indicator light.
• Mains connection 3~, 230 V with optional switching plug.
• Pump housing in bronze or grey cast iron (stainless steel depending on type).
• PN 6/PN 10 combination flange (for DN 40 to DN 65).
• Thermal insulation shells.
• Additional functions by retrofittable Protect Module C: - SSM fault signal as potential-free NC contact.
• SBM run signal as potential-free NO contact.
• "Overriding Off" control input via external potential-free contact (NC contact).
• Blocking detection.
• Full motor protection with integrated tripping.
• Fault acknowledgement.
• Dual pump management (two single pumps installed in parallel) Main/standby operation (automatic fault-actuated switchover/time-sensitive pump alteration)

Materials

• Pump housing: Bronze.
• Impeller: Plastic (PPE - 30% GF).
• Pump shaft: Stainless Steel
• Bearing: Carbon, synthetic resin impregnated.

Operating data

• Fluid to be pumped: Water 100 %.
• Fluid temperature: 20 °C.
• Min. fluid temperature: 0 °C.
• Max. fluid temperature: 40 °C.
• Maximum operating pressure: 10 bar.
• Max. permitted total hardness in domestic hot water circulation systems: 3.57 mmol/l (20°dH) (3.21 mmol/l (18°dH) for 20/4 + 25/6)

Motor/electronics

• Emitted interference: EN 61000-6-3.
• Interference resistance: EN 61000-6-2.

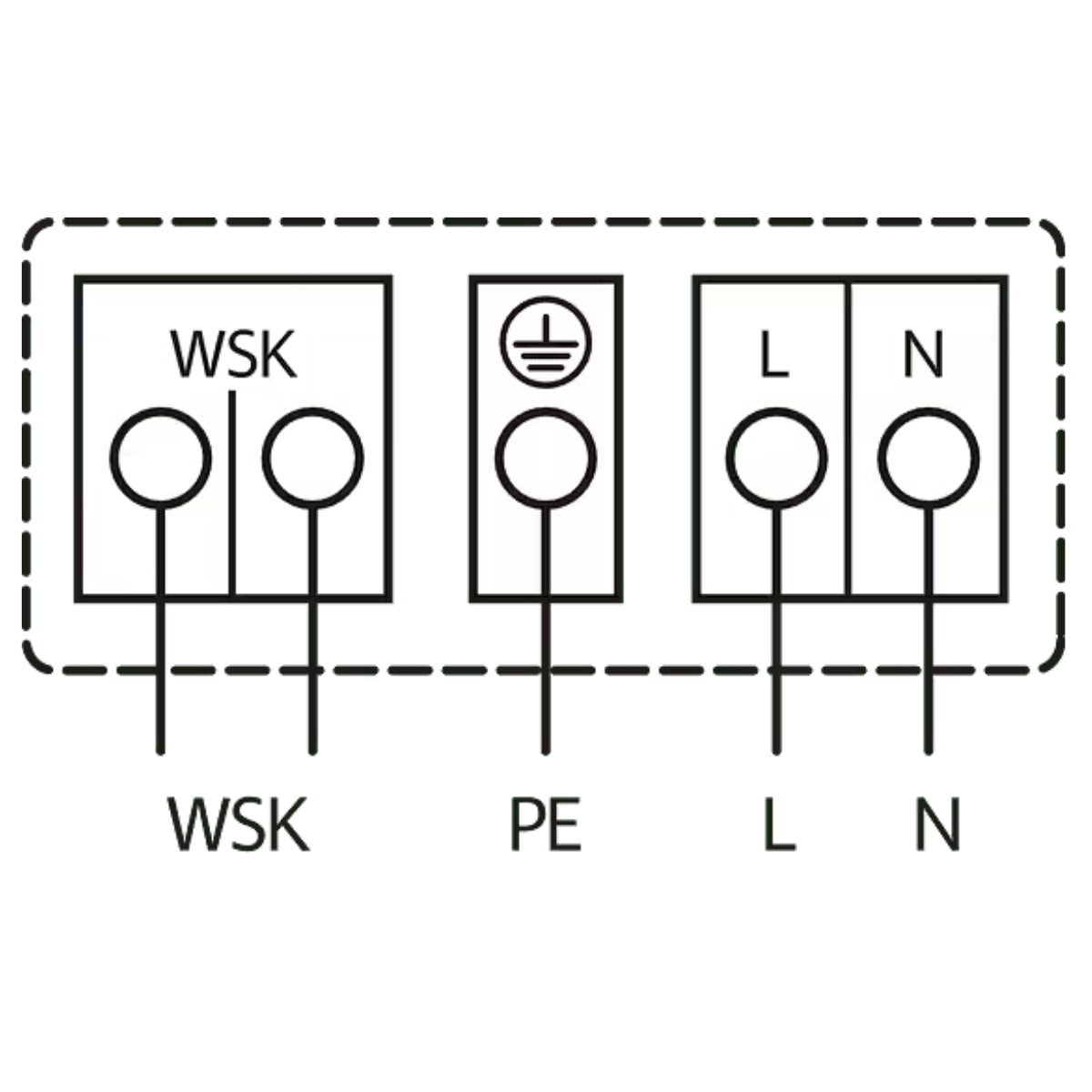

• Mains connection: 1~230V/50 Hz.
• Power consumption P1: 335 W

• Max. speed: 1260 1/min: 2800 1/min

• Rated Current: 1.62 A

• Protection class: IP X4D.
• Threaded cable connection: 2x13.5.

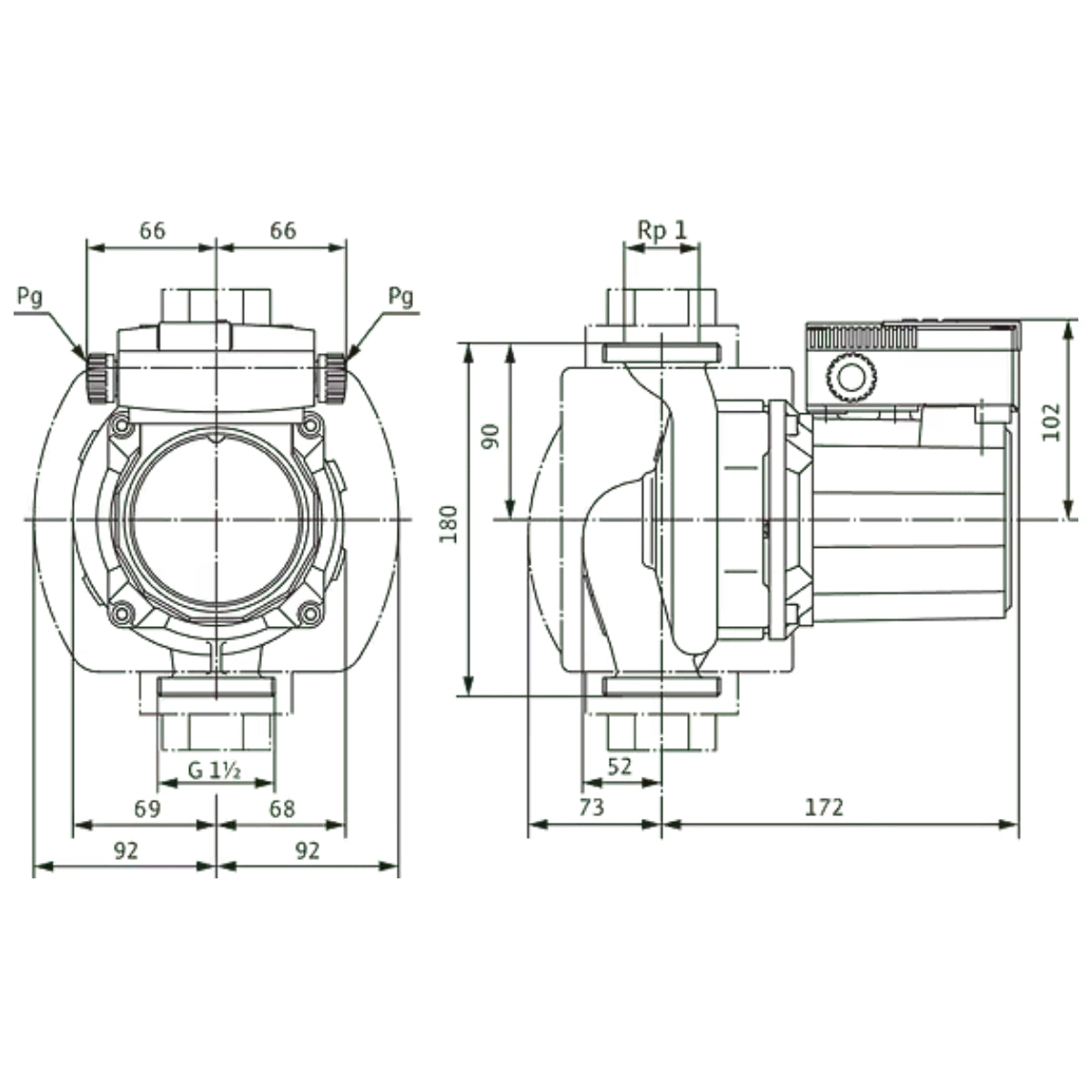

Dimensions

• HxLxD: 180 mm x 120 mm x 172 mm.
• Weight approx.: 6.7 kg.

Includes 22mm Cast Iron Union
